1x RG59+7x1x2x22AWG Pairs Data Cable+3x16AWG Power Cable SWA LSZH Sheathed Composite Cable

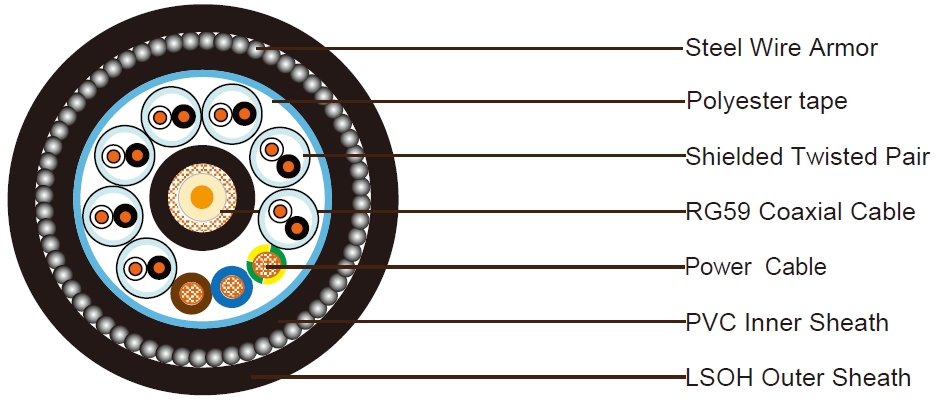

Construction:
1x75Ohm RG59 Coaxial Cable
| Conductor | 0.58mm Solid copper conductor |
| Insulation | Polyethylene.Thickness1.56mm |
| Shield | Braid of bare copper wire. Coverage ≥ 95% |
| Sheath | LSZH sheath. Nominal outer diameter 6.15mm |
| Sheath Color | Black |
7x1x2x22 AWG Shielded Twisted Pair Data Cables
| Conductor | 22AWG |
| Insulation | PE material. Thickness 0.6mm |
| Insulation Color | Black and white with numbering |
| Individual Shield | Aluminium polyester tape with drain wire |
3x16AWG Power Cable
| Conductor | 16AWG wire |
| Insulation | XLPE. Thickness 0.7mm |
| Insulation Color | Blue, Brown and Green/Yellow |
Element Assembly
| Filler | PP material if necessary |
| Wrapping Tape | Polyester tape |
| Inner Sheath | LSZH, thickness 1.2mm |
| Armor | Galvanized steel wire |
| Outer Sheath | An outer protection of extruded UV resisting, anti-rodent and anti-termite LSZH compound is applied over armor. Thickness: 2.0mm. Nominal outer diameter is 28.0mm. |
| Sheath Color | Black |
| Cable Weight | 510kg/km |
Physical Properties:
- Min Bending Radius: 560mm
- Operating Temperature: -30°C/+70°C
