1xRG59 + 3x2.5 Power Cable + 2x1x2x24AWG RS485 SWB PVC Sheathed Composite Cable
Construction:
1x75Ohm RG59 Coaxial Cable
| Conductor | 0.58mm Solid copper conductor |
| Insulation | Polyethylene.Thickness1.56mm |
| Shield | Braid of bare copper wire. Coverage ≥ 85% |
| Sheath | LSZH sheath. Nominal outer diameter 6.2mm |
| Sheath Color | Black |
2 Pair 24AWG RS485
| Conductor | 7/0.2mm |
| Insulation | PE material. Thickness 0.6mm |
| Insulation Color | Black and white with numbering |
| Shield 1 | Aluminium polyester tape with 24 AWG drain wire |
| Shield 2 | Tinned copper wire braiding |
| Sheath | PVC sheath. Nominal outer diameter is 9.0mm |
| Sheath Color | Black |
3x2.5mm^2 Power Cable
| Conductor | 2.5mm^2 wire |
| Insulation | XLPE. Thickness 0.7mm |
| Insulation Color | Blue, Brown and Green/Yellow |

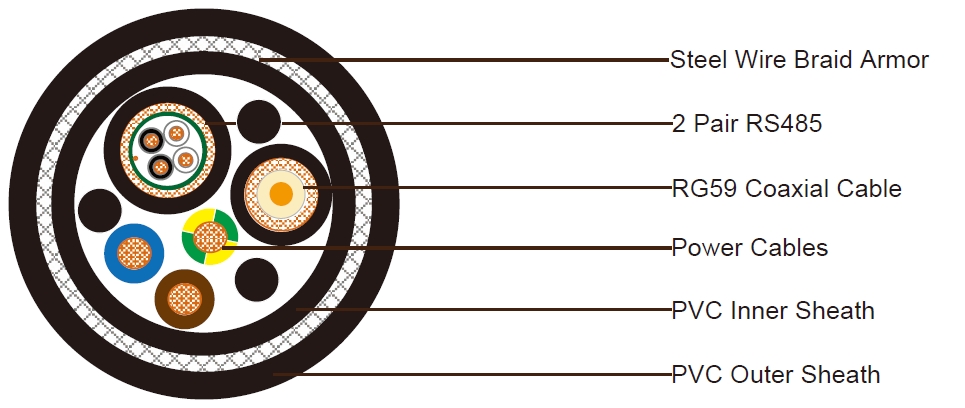

Element Assembly
| Filler | PP material if necessary |
| Inner Sheath | Black PVC, thickness 0.8mm |
| Armor | Steel wire braid, coverage 95% |
| Outer Sheath | PVC, thickness 1.8mm, nominal outer diameter is 26.0mm |
| Sheath Color | Black |
Electrical and Physical Properties@20°C:
Coaxial Cable
- Impedance: 75±3Ohm (@1MHz)
- Nominal Attenuation: 8.2dB/100m @50MHz
Power Cable
- Electrical Resistance: 7.56Ohm/km
RS485
- Nominal Impedance: 120±10Ω
- Nominal Conductor DC Resistance @20°C: 78.7 Ohm/km
- Nominal Attenuation: 1MHz 2.3dB/100m
