Cat5e+3x2.5 Power Cable SWB LSZH Sheathed Fire Resistant & Mud Resistant Composite Cable

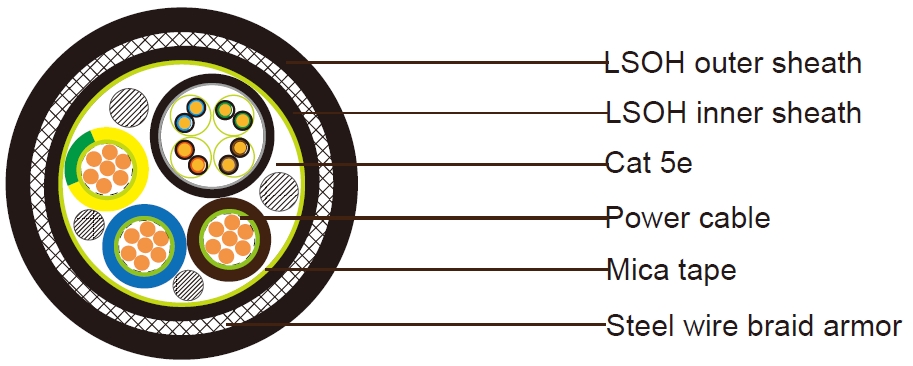

Construction:
CAT5E 4x2x24AWG
| Conductor | Solid copper conductor |
| Insulation | Polyethylene/Silicone Rubber |
| Fire Barrier | Mica tape |
| Sheath | FRLSZH sheath. Nominal outer diameter 9.5mm |
| Sheath Color | Black and Grey |
3x2.5mm^2 Power Cable
| Conductor | 2.5mm^2 wire |
| Fire Barrier | Mica tape |
| Insulation | XLPE. Nominal outer diameter 5.0mm |
| Insulation Color | Blue, Brown and Green/Yellow |
Element Assembly
| Filler | PP material if necessary |
| Fire Barrier | Mica tape |
| Inner Sheath | Black FRLSZH, thickness 1.0mm |
| Armor | Galvanized steel wire braid, coverage 95% |
| Outer Sheath | FRLSZH, thickness 1.6mm, nominal outer diameter 23.0±1.5mm |
| Sheath Color | Black |

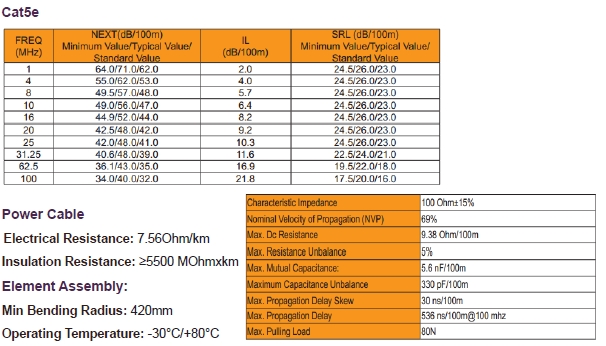

Electrical and Physical Properties@20°C:
Fire Performance:
- Low Smoke Capacity:IEC61034-1/2
- Halogen Free:IEC60754-1/2
- Flame Propagation: IEC60332
- Fire Resistant: IEC60332-21
- Mud Resistant & other properties could be met upon request
