2X(2C1.5mm2) Audio Cable + Cat6 F/UTP LSZH Sheathed Unarmoured Composite Cable

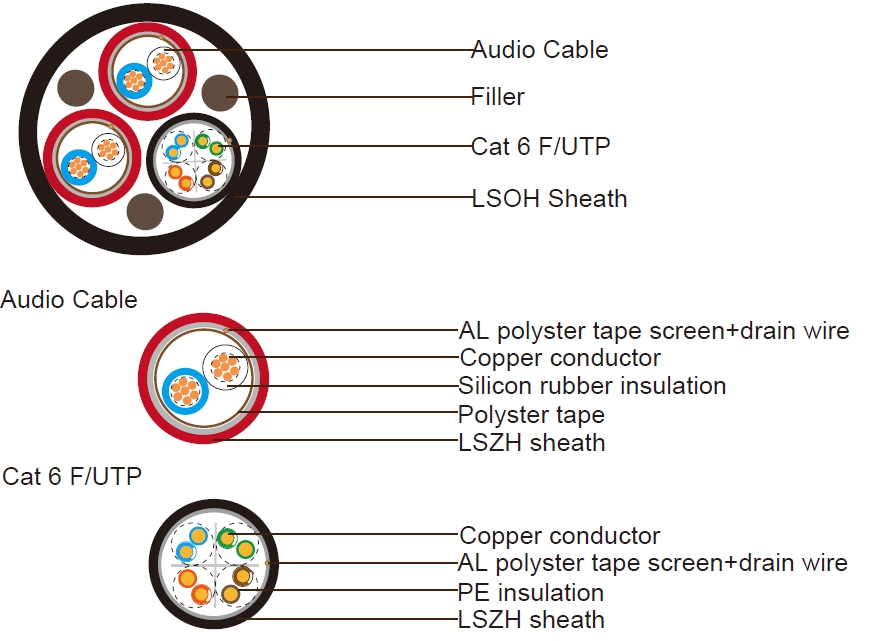

Construction:
2Cx1.5mm^2 Audio Cable
| Conductor | 1.5mm2 Stranded copper wire, class 5 to IEC60228. |
| Insulation | Fire resistant silicone rubber compound. Nominal thickness 0.8mm. |
| Insulation Color | White and blue |
| Shield | Aluminium tape with tinned copper drain wire |
| Sheath | LSZH sheath. Nominal thickness 1.0mm. |
| Sheath Color | Red |
| General Standard | Basic design to EN50288-7 |
Cat 6 F/UTP
| Conductor | 24 AWG stranded plain copper. |
| Insulation | PE material. Nominal diameter is 0.97mm |
| Insulation Color | White-orange,Orange;White-blue,Blue;White-green,Green;White-brown,Brown |
| Shield | Alumminum tape with tinned copper drain wire. |
| Sheath | LSZH sheath. Nominal overall diameter is 6.5mm |
| Sheath Color | Black or Grey or Blue. Other colors also available upon request. |
| Applications | IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T;IEEE 802.5 16 MB; ISDN; TPDDI; ATM. |
| General Standard | ISO/IEC 11801, IEC 61156-5,EN 50173,ANSI/TIA 568B. |
Element Assembly
| Filler | PP material if necessary |
| Wrapping Tape | Polyester tape or woven tape |
| Outer Sheath | High flexible LSZH. Nominal thickness 1.8mm. |
| Sheath Color | Black. Other colors also available upon request |
Electrical and Physical Properties@20°C:
Audio Cable
- Max.Electrical Resistance: 12.3Ohm/km
- Min. Insulation Resistance: 1000 MOhm/km
- Operating Temperature: -20°C/+90°C
- Voltage rating: 300/500V
- Insulation spark test: 7000 V r.m.s./H.F.
- Max. Attenuation: 0.88 dB/km @800HZ
- Max. Inductance: 0.75mH/km
Cat6 F/UTP
- Max.Electrical Resistance: 93.8 Ohm/km
- Min.Insulation Resistance: 2000 MOhm/km
- Operating Temperature: -20°C/+70°C
- Max.Resistance Unbalance: 5%
- Max. Mutual Capacitance: 5.6nF/100m
- Max. Capacitance Unbalance: 330pF/100m
- Characteristic Impedance : 100 ± 15 (1-250MHz)
- Nominal Velocity of Propagation: 69%
- Max. Propagation Delay : 536ns/100m@100MHz
- Max.Propagation Delay skew : 45ns/100m(1-125MHz)
- Test voltage (DC, 1 min) Core/Core : 1000V
Fire Performance:
Audio Cable
- Flame Retardance : IEC60332-1-2
- Fire Propagation : IEC60332-3-22
- Low Smoke Capacity: IEC61034-1/2
- Halogen Free: IEC60754-1/2
- Temperature Index : ISO 4589-3
- Oxygen Index : ISO 4589-2
Cat6 F/UTP
- Flame Retardance : IEC60332-1-2
- Fire Propagation : IEC60332-3-22
- Low Smoke Capacity: IEC61034-1/2
- Halogen Free: IEC60754-1/2
- Temperature Index : ISO 4589-3
- Oxygen Index : ISO 4589-2
Element Assembly
- Flame Retardance : IEC60332-1-2
- Fire Propagation : IEC60332-3-22
- Low Smoke Capacity: IEC61034-1/2
- Halogen Free: IEC60754-1/2
- Temperature Index : ISO 4589-3
- Oxygen Index : ISO 4589-2
