FTP Cat5e+3x2.5 Power Cable SWB LSZH Sheathed Fire Resistant Composite Cable

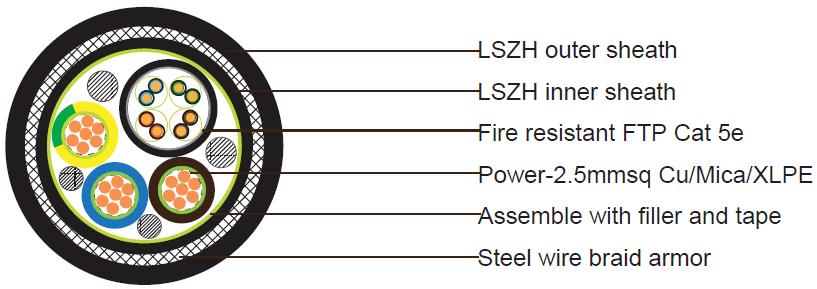

CONSTRUCTION
FTP CAT5E 4x2x24AWG
| Conductor | Solid copper conductor |
| Insulation | Polyethylene+FR Sillicone Rubber |
| Shield &Fire Barrier | Overall Al-foil shield , add mica tape outside |
| Sheath(optional) | FRLSZH sheath. Nominal outer diameter 103.+/-4.5mm |
| Sheath Color | Black |
3x2.5mm² Power Cable
| Conductor | 2.5mm² Standed tinned copper wire |
| Fire Barrier | Mica tape |
| Insulation | XLPE. Nominal outer diameter 5.0mm |
| Insultion Color | Brown, Blue, Green/Yellow |
Element Assembly
| Filler | PE or PP material. |
| Fire Barrier | Fire barrier tape (optional) |
| Inner Sheath | Black FRLSZH, ID(inner sheath diameter ) min. 22.0mm |
| Armor | Galvanized steel wire braid, coverage 85% |
| Outer Sheath |
FRLSZH, Nom. OD (overall diameter) min.26.0mm |
| Sheath Color& property | Black. UV resistance, hydrocarbon resistance and water tightness |
ELECTRICAL PROPERTIES @20°C
Power Cable 2.5mmsq
Max.Electrical Resistance : 75.6 Ohm/km
Electrical Resistance : 7.9Ohm/km
Insulation Resistance : ≥1000MOhm×km
Voltage : 300/500V or 0.6/1KV optional
Operating Temperature : -30°C/+80°C
FIRE PERFORMANCE
Low Smoke Capacity : IEC60134-1/2
Halogen Free : IEC60754-1/2
Flame Propagation : IEC60332-3-24
Fire Resistant : IEC60331-21
Mud Resistant & other properties could be met upon request
