0.6/1KV XLPE Insulated Lead Cover SWA Power Cable
APPLICATION
These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where require hydrocarbon and mechanical protections. The lead sheath brings an enhanced resistance to aliphatic and aromatic hydrocarbon.
STANDARDS
- IEC60502-1
- IEC60228
- IEC60332-3-22(A)

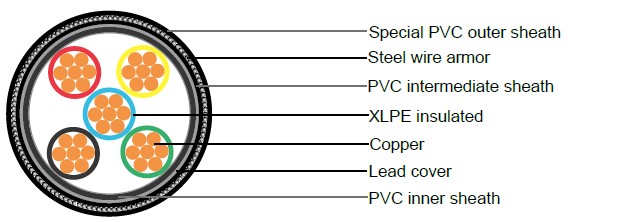

CABLE CONSTRUCTION
| Conductor | Plain copper wire conductors to IEC 228, class 2 (stranded). |
| Insulation | Extruded cross-linked XLPE compound Insulation Colour as per BS7671 3Cores Yellow/Green, Brown, Blue or Brown, Gray, Black 4Cores Yellow/Green, Brown, Gray or Black Brown, Gray, Black, Blue |
| Inner sheath | PVC |
| Lead cover | Lead alloy |
| Intermediate sheath | PVC |
| Armor | Galvanized steel wires |
| Sheath | Special PVC. |
TECHNICAL DATA
| Size of Conductor | Nominal Overall Diameter | Nominal Weight |
|---|---|---|
| mm | kg/km | |
| 3 x 2.5 | 21.8 | 1194 |
| 4 x 1.5 | 21.6 | 1161 |
PHYSICAL CHARACTERISTICS
Temperature rating : During operation: -20 to + 60℃
Minimum bending radius : 10 x Overall Diameter
Chemical resistance : Aliphatic and aromatic hydrocarbon resistance
ELECTRICAL PROPERTIES
Rated voltage : 600V/1000V
Dielectric test : 3500 V r.m.s. x 5’ (core/core)
Insulation resistance : 1000 MΩ x km (at 20°C)
Short circuit temperature : 250°C
