Composite Cable (UTP Cat6 LSZH+3*1.5sqmm Cu/XLPE)/ LSZH/TCWB/SHF mud
Part no. 3C1.5-UTP Cat6-HCH2

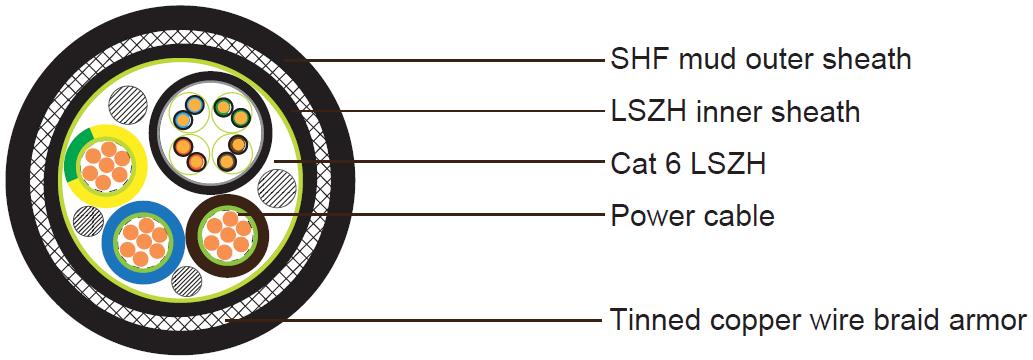

CONSTRUCTION
CAT6 4x2x23AWG
| Conductor | Solid copper conductor |
| Insulation | Polyethylene |
| Twisted pair | 4 twisted pairs as the cable core |
| Sheath | LSZH sheath. Nominal outer diameter 6.8mm |
| Sheath Color | Grey |
3x1.5mm² Power Cable
| Conductor | 1.5mm² Stranded copper wire |
| Strandes | 7/0.53mm |
| Insulation | XLPE. Nominal thickness 0.7mm |
| Insultion Color | Blue, Brown and Grey or Green/Yellow as ground core |
Element Assembly
| Filler | PE or PP material |
| Binder | Wrapping tape |
| Inner Sheath | Black FRLSZH , thickness 1.0mm |
| Armor | Tinned copper wire braid , coverage 85% |
| Outer Sheath |
SHF mud , thickness 1.3mm , nominal outer diameter 23.0±1.5mm |
| Sheath Color | Black |
ELECTRICAL PROPERTIES @20°C
Cat6 UTP Data Cable
Characteristic impedance : 100+/-15 ohm
Electrical Resistance : 75.6 Ohm/km
Insulation Resistance : 1000 MOhm.km
Operating Temperature : -20°C/+90°C
Power Cable
Electrical Resistance : 12.1Ohm/km
Insulation Resistance : ≥5500MOhm×km
Rated voltage : 0.6/1KV
Testing voltage : 3500V
Min Bending Radius : 10 times overall diameter
Operating Temperature : -25°C/+90°C
FIRE PERFORMANCE
Low Smoke Capacity : IEC60134-1/2
Halogen Free : IEC60754-1/2
Flame Propagation : IEC60332
Mud Resistant : Yes
