Enhanced Category 5 Cables
Applications :
10Base-T, 100Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155Mbps ATM, 622Mbps ATM, 1000Base-T
Standards :
- ISO/IEC 11801
- ANSI/TIA/EIA-568-B
Product Construction Matrix :
| U/UTP | F/UTP | SF/UTP | |
| Conductor | 24AWG Solid Plain Copper | 24AWG Solid Plain Copper | 24AWG Solid Plain Copper |
| Insulation | PE | PE | PE |
| Screen | Nil | Overall Aluminum Tape Screen | Overall Aluminum Tape Screen & Copper Wire Braid |
| Drain Wire | Nil | 1/0.5 mm | Nil |
| Jacket | PE/PVC/LSF/LSZH/LSFROH | PE/PVC/LSF/LSZH | PE/PVC/LSF/LSZH/LSFROH |
Remark : PE- Polyethylene; PVC- Polyvinyl Chloride; LSF- Low Smoke & Fume; LSZH- Low Smoke Zero Halogen; LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C); PVC can be offered in CMX, CM, CMR and CMP grade.
Working Frequency :
1 - 100 MHz
 |
 |
 |

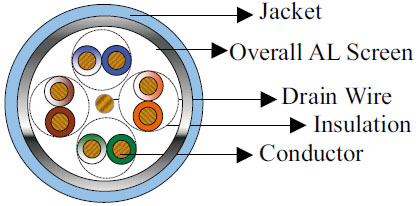

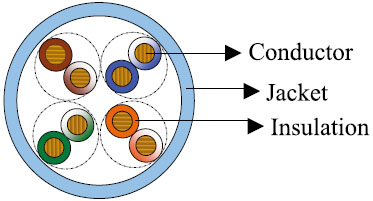

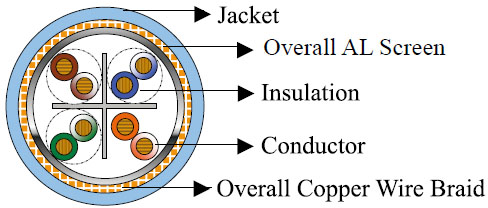

| Cat5e U/UTP | Cat5e F/UTP | Cat5e SF/UTP |
Technical Parameters :
| Characteristic Impedance: | 100±15Ω (1-100MHz) |
| Nominal Velocity of Propagation(NVP): | CMX, CM, CMR, LSZH 69%; CMP 72% |
| Maximum Mutual Capacitance: | 5.6nF/100m |
| Maximum Capacitance Unbalance: | 330pF/100m |
| Maximum DC Resistance: | 9.38Ω/100m |
| Maximum Resistance Unbalance: | 5% |
| Maximum Propagation Delay Skew: | 30ns/100m |
| Maximum Propagation Delay: | 536ns/100m@100MHz |
| Minimum Bending radius: | 10 x Overall Diameter |
| Voltage Rating: | 80V rms |
| Maximum Pulling Load: | 80N |
| Working Temperature: | -20℃ ~+60℃ |
| Storage Temperature: | -5℃ ~ +50℃ |
| Flame Retardancy: | UL 1581 (CM Jacket); UL 1666 (CMR Jacket); UL 910 (CMP Jacket); IEC 60332-1(FRPVC & LSZH Jacket); IEC 60332-1 and IEC 60332-3C (LSFROH Jacket) |
Cable Parameters :
| Construction | Conductor Diameter (mm) | Diameter Over Insulation (mm) | Pairs | Screen | Overall Diameter (mm) | Jacket |
|---|---|---|---|---|---|---|
| U/UTP | 0.5/0.51 | 0.91 | 4 | Nil | 5.1 | PVC/LSZH |
| U/UTP | 0.5/0.51 | 0.91 | 4 | Nil | 5.5 | LSFROH |
| U/UTP | 0.5/0.51 | 0.91 | 4 | Nil | 5.3 | PE |
| F/UTP | 0.53 | 1.00 | 4 | Overall Aluminum Tape Screen | 6.3 | PVC/LSZH |
| F/UTP | 0.53 | 1.00 | 4 | Overall Aluminum Tape Screen | 6.5 | PE |
| SF/UTP | 0.53 | 1.00 | 4 | Overall Aluminum Tape Screen & Copper Wire Braid | 6.6 | PVC/LSZH |
| SF/UTP | 0.53 | 1.00 | 4 | Overall Aluminum Tape Screen & Copper Wire Braid | 7.0 | LSFROH |
| SF/UTP | 0.53 | 1.00 | 4 | Overall Aluminum Tape Screen & Copper Wire Braid | 6.8 | PE |
Product Highlights :
- Provide excellent bandwidth beyond 100 MHz.
- Meet the strict flame retardancy and environmental requirements in Europe and US.
- Different jacket materials available for choice.
- Guaranteed ACR Value > 0 dB @ 200 MHz.
- Special purpose cables can be offered according to customer request.
- Different jacket color options available for choice.
Transmission Properties :
| FREQ (MHz) | NEXT (dB/100m) (Minimum/ Typical/ Standard) Value | IL (dB/100m) | RL (dB/100m) (Minimum/ Typical/ Standard) Value | ACR (dB/100m) (Minimum/ Typical/ Standard) Value | ELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value | PSNEXT (dB/100m) (Minimum/ Typical/ Standard) Value | PSACR (dB/100m) (Minimum/ Typical/ Standard) Value | PSELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value |
|---|---|---|---|---|---|---|---|---|
| 1 | 68.3/74.0/65.3 | 2.0 | 20.2/26.0/20.2 | 66.3/72.0/63.3 | 64.8/69.0/63.8 | 65.0/71.0/62.3 | 63.3/69.0/60.3 | 61.8/66.0/60.8 |
| 4 | 59.3/65.0/56.3 | 4.1 | 23.0/29.0/23.0 | 55.2/60.9/52.2 | 52.7/57.0/51.7 | 56.3/62.0/53.3 | 52.2/57.9/49.2 | 49.7/54.0/48.7 |
| 8 | 54.8/61.0/51.8 | 5.8 | 24.5/30.5/24.5 | 49.0/55.2/46.0 | 46.7/51.0/45.7 | 51.8/58.0/48.8 | 46.0/52.2/43.0 | 43.7/48.0/42.7 |
| 10 | 53.3/59.0/50.3 | 6.5 | 25.0/31.0/25.0 | 46.8/52.5/43.8 | 44.8/49.0/43.8 | 50.3/56.0/47.3 | 43.8/49.5/40.8 | 41.8/46.0/40.8 |
| 16 | 50.3/56.0/47.3 | 8.2 | 25.0/31.0/25.0 | 42.1/47.8/39.1 | 40.7/45.0/39.7 | 47.4/53.0/44.3 | 39.1/44.8/36.1 | 37.7/42.0/36.7 |
| 20 | 48.8/55.0/45.8 | 9.3 | 25.0/31.0/25.0 | 39.5/45.7/36.5 | 38.7/43.0/37.7 | 45.8/52.0/42.8 | 36.5/42.7/33.5 | 35.7/40.0/34.7 |
| 25 | 47.3/53.0/44.3 | 10.4 | 24.3/30.3/24.3 | 36.9/42.6/33.9 | 36.8/41.0/35.8 | 44.3/50.0/41.3 | 33.9/39.6/30.9 | 33.8/38.0/32.8 |
| 31.25 | 45.9/52.0/42.9 | 11.7 | 23.6/29.6/23.6 | 34.2/40.3/31.2 | 34.9/39.0/33.9 | 42.9/49.0/39.9 | 31.2/37.3/28.2 | 31.9/36.0/30.9 |
| 62.5 | 41.4/47.0/38.4 | 17.0 | 21.5/27.5/21.5 | 24.4/30.0/21.4 | 28.8/33.0/27.8 | 38.4/44.0/35.4 | 21.4/27.0/18.4 | 25.8/30.0/24.8 |
| 100 | 38.3/44.0/35.3 | 22.0 | 20.1/26.1/20.1 | 16.3/22.0/13.3 | 24.8/29.0/23.8 | 35.3/41.0/32.3 | 13.3/19.0/10.3 | 21.8/26.0/20.8 |
| 155 | 35.5/41.0/32.5 | 28.1 | 18.8/24.8/18.8 | 7.4/12.9/4.4 | 20.9/25.0/19.9 | 32.5/38.0/29.5 | 4.4/9.9/-1.4 | 17.9/22.0/16.9 |
| 200 | 33.7/40.0/30.7 | 32.4 | 18.0/24.0/18.0 | 1.3/7.6/-1.7 | 19.7/24.0/18.7 | 30.0/37.0/27.7 | -1.7/4.6/-4.7 | 16.7/21.0/15.7 |
| 310 | 32.3/38.0/29.3 | 41.8 | 17.3/23.3/17.3 | N/A | 11.0/15.0/10.0 | 29.3/35.0/26.3 | N/A | 14.0/18.0/13.0 |
| 350 | 30.1/36.0/27.1 | 44.9 | 17.3/23.3/17.3 | N/A | 8.1/12.0/7.1 | 27.1/33.0/24.1 | N/A | 11.1/15.0/10.1 |
* Data for 100MHz above are for reference only
 |
 |
 |
| Cat5e U/UTP | Cat5e F/UTP | Cat5e SF/UTP |
