PE Insulated, LSZH Sheathed, Overall Screened & Armoured Instrumentation Cables (Multicore)

Application

EN 50288-7 PE armour Multicore cables are generally use for indoor installation and suitable for wet and damp areas. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

Standards

Basic design to EN 50288-7

Fire Performance

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation(Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454
Sunlight Resistance UL 1581 section 1200
Oil Resistance ICEA S-73-532**

Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

Voltage Rating

500V

  • PE Insulated, LSZH Sheathed, Overall Screened & Armoured Instrumentation Cables (Multicore), EN50288-7 Standards Instrument Cables

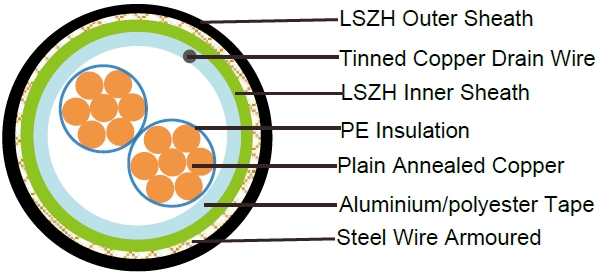

Cable Construction

  • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
  • Insulation: PE compound, EN 50290. 2-23.
  • Overall Screen: Aluminium/polyester tape with 0.5mm2?screen (7/0.3mm) tinned copper drain wire.
    Inner Sheath: LSZH compound
    Armouring: Galvanised steel wire
  • Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound typeSW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

Colour Code

  • Insulation: Black numbered
  • Outer Sheath: Black, blue for intrinsically safe systems

Physical and Thermal Properties

  • Temperature Range During Operation (Fixed State): -30°C – +90°C
  • Temperature Range During Installation (Mobile State): -5°C – +50°C
  • Minimum Bending Radius: 10 X Overall Diameter

Electrical Roperties

Conductor Area Size mm2 0.5 0.75 1.0 1.3 1.5 2.5
Insulation thickness (nominal) mm 0.55 0.55 0.55 0.6 0.6 0.7
Conductor resistance (20°C) Ω/km 36.0 24.5 18.1 13.9 12.1 7.4
Insulation resistance (20°C) MΩ.km(Min.) 5000 5000 5000 5000 5000 2000
Mutual Capacitance (1 kHz) pF/m(Max.) 115 115 115 115 115 2000
Inductance mH/km(Max.) 1 1 1 1 1 1
L / R (ratio) (max.) μH/Ω 25 25 25 40 40 10
Operating voltage V 500 500 500 500 500 500
Test Voltage Urms Core to Core V 2000 2000 2000 2000 2000 2000
Core to Screen V 2000 2000 2000 2000 2000 2000

Construction Parameterst

Caledonian Cable Code RE-2Y(St)HSWAH
No. of Cores x1xCross Section Nominal Insulation Thick- ness Nominal Inner Sheath Thick- ness Nominal
Overall Diameter Over Inner Sheath		 Nominal Armour Wire Diameter Nominal Outer Sheath Thick- ness Nominal Overall Diameter Approx. Weight
  No.x1xmm2 mm mm mm mm mm mm kg/km
0.5mm2, Multicore
RE-2Y(St)HSWAH 2C0.5 2x1x0.5 0.55 0.9 6.2 0.9 1.3 10.6 217
RE-2Y(St)HSWAH 3C0.5 3x1x0.5 0.55 0.9 6.5 0.9 1.3 10.9 230
RE-2Y(St)HSWAH 4C0.5 4x1x0.5 0.55 0.9 7.0 0.9 1.3 11.4 253
RE-2Y(St)HSWAH 5C0.5 5x1x0.5 0.55 0.9 7.6 0.9 1.3 12.0 283
RE-2Y(St)HSWAH 8C0.5 8x1x0.5 0.55 1.0 9.1 0.9 1.4 13.7 337
RE-2Y(St)HSWAH 10C0.5 10x1x0.5 0.55 1.0 10.4 0.9 1.4 15.0 399
RE-2Y(St)HSWAH 12C0.5 12x1x0.5 0.55 1.0 10.7 0.9 1.4 15.3 442
RE-2Y(St)HSWAH 14C0.5 14x1x0.5 0.55 1.0 11.3 0.9 1.4 15.9 474
RE-2Y(St)HSWAH 16C0.5 16x1x0.5 0.55 1.1 11.8 0.9 1.4 16.4 505
RE-2Y(St)HSWAH 20C0.5 20x1x0.5 0.55 1.1 13.3 0.9 1.5 18.1 569
RE-2Y(St)HSWAH 24C0.5 24x1x0.5 0.55 1.1 14.7 0.9 1.5 19.5 659
RE-2Y(St)HSWAH 27C0.5 27x1x0.5 0.55 1.2 15.0 0.9 1.5 19.8 808
RE-2Y(St)HSWAH 30C0.5 30x1x0.5 0.55 1.2 15.7 0.9 1.5 20.5 848
RE-2Y(St)HSWAH 37C0.5 37x1x0.5 0.55 1.2 16.9 0.9 1.6 21.9 963
RE-2Y(St)HSWAH 40C0.5 40x1x0.5 0.55 1.2 17.6 1.25 1.6 23.3 1014
0.75mm2, Multicore
RE-2Y(St)HSWAH 2C0.75 2x1x0.75 0.55 0.9 6.5 0.9 1.3 10.9 345
RE-2Y(St)HSWAH 3C0.75 3x1x0.75 0.55 0.9 6.9 0.9 1.3 11.3 420
RE-2Y(St)HSWAH 4C0.75 4x1x0.75 0.55 0.9 7.4 0.9 1.3 11.8 507
RE-2Y(St)HSWAH 5C0.75 5x1x0.75 0.55 0.9 8.1 0.9 1.4 12.7 609
RE-2Y(St)HSWAH 8C0.75 8x1x0.75 0.55 1.0 9.7 0.9 1.4 14.3 846
RE-2Y(St)HSWAH 10C0.75 10x1x0.75 0.55 1.0 11.1 0.9 1.4 15.7 1035
RE-2Y(St)HSWAH 12C0.75 12x1x0.75 0.55 1.0 11.5 0.9 1.4 16.1 1183
RE-2Y(St)HSWAH 14C0.75 14x1x0.75 0.55 1.1 12.2 0.9 1.5 17.0 1334
RE-2Y(St)HSWAH 16C0.75 16x1x0.75 0.55 1.1 12.9 0.9 1.5 17.7 1495
RE-2Y(St)HSWAH 20C0.75 20x1x0.75 0.55 1.1 14.3 0.9 1.5 19.1 1823
RE-2Y(St)HSWAH 24C0.75 24x1x0.75 0.55 1.2 16.0 0.9 1.5 20.8 2258
RE-2Y(St)HSWAH 27C0.75 27x1x0.75 0.55 1.2 16.3 0.9 1.6 21.3 2482
RE-2Y(St)HSWAH 30C0.75 30x1x0.75 0.55 1.2 16.9 0.9 1.6 21.9 2713
RE-2Y(St)HSWAH 37C0.75 37x1x0.75 0.55 1.2 18.2 1.25 1.6 23.9 3231
RE-2Y(St)HSWAH 40C0.75 40x1x0.75 0.55 1.3 19.1 1.25 1.6 24.8 3483
1.0mm2, Multicore
RE-2Y(St)HSWAH 2C1.0 2x1x1.0 0.55 0.9 6.9 0.9 1.3 11.3 247
RE-2Y(St)HSWAH 3C1.0 3x1x1.0 0.55 0.9 7.3 0.9 1.3 11.7 270
RE-2Y(St)HSWAH 4C1.0 4x1x1.0 0.55 0.9 7.9 0.9 1.4 12.5 299
RE-2Y(St)HSWAH 5C1.0 5x1x1.0 0.55 0.9 8.6 0.9 1.4 13.2 342
RE-2Y(St)HSWAH 8C1.0 8x1x1.0 0.55 1.0 10.3 0.9 1.4 14.9 417
RE-2Y(St)HSWAH 10C1.0 10x1x1.0 0.55 1.0 11.9 0.9 1.4 16.5 514
RE-2Y(St)HSWAH 12C1.0 12x1x1.0 0.55 1.0 12.2 0.9 1.5 17.0 548
RE-2Y(St)HSWAH 14C1.0 14x1x1.0 0.55 1.1 13.0 0.9 1.5 17.8 590
RE-2Y(St)HSWAH 16C1.0 16x1x1.0 0.55 1.1 13.7 0.9 1.5 18.5 649
RE-2Y(St)HSWAH 20C1.0 20x1x1.0 0.55 1.1 15.2 0.9 1.5 20.0 864
RE-2Y(St)HSWAH 24C1.0 24x1x1.0 0.55 1.2 17.0 0.9 1.6 22.0 1005
RE-2Y(St)HSWAH 27C1.0 27x1x1.0 0.55 1.2 17.4 1.25 1.6 23.1 1058
RE-2Y(St)HSWAH 30C1.0 30x1x1.0 0.55 1.2 18.0 1.25 1.6 23.7 1113
RE-2Y(St)HSWAH 37C1.0 37x1x1.0 0.55 1.2 19.6 1.25 1.6 25.3 1271
RE-2Y(St)HSWAH 40C1.0 40x1x1.0 0.55 1.3 20.4 1.25 1.7 26.3 1351
1.3mm2, Multicore
RE-2Y(St)HSWAH 2C1.3 2x1x1.3 0.6 0.9 7.4 0.9 1.3 11.8 275
RE-2Y(St)HSWAH 3C1.3 3x1x1.3 0.6 0.9 7.9 0.9 1.3 12.3 301
RE-2Y(St)HSWAH 4C1.3 4x1x1.3 0.6 0.9 8.5 0.9 1.4 13.1 340
RE-2Y(St)HSWAH 5C1.3 5x1x1.3 0.6 1.0 9.5 0.9 1.4 14.1 383
RE-2Y(St)HSWAH 8C1.3 8x1x1.3 0.6 1.0 11.2 0.9 1.4 15.8 436
RE-2Y(St)HSWAH 10C1.3 10x1x1.3 0.6 1.1 13.2 0.9 1.5 18.0 578
RE-2Y(St)HSWAH 12C1.3 12x1x1.3 0.6 1.1 13.6 0.9 1.5 18.4 633
RE-2Y(St)HSWAH 14C1.3 14x1x1.3 0.6 1.1 14.3 0.9 1.5 19.1 698
RE-2Y(St)HSWAH 16C1.3 16x1x1.3 0.6 1.1 15.0 0.9 1.5 19.8 870
RE-2Y(St)HSWAH 20C1.3 20x1x1.3 0.6 1.2 16.9 0.9 1.6 21.9 1014
RE-2Y(St)HSWAH 24C1.3 24x1x1.3 0.6 1.2 18.7 1.25 1.6 24.4 1163
RE-2Y(St)HSWAH 27C1.3 27x1x1.3 0.6 1.3 19.3 1.25 1.6 25.0 1227
RE-2Y(St)HSWAH 30C1.3 30x1x1.3 0.6 1.3 20.0 1.25 1.6 25.7 1305
RE-2Y(St)HSWAH 37C1.3 37x1x1.3 0.6 1.3 21.6 1.25 1.7 27.5 1504
RE-2Y(St)HSWAH 40C1.3 40x1x1.3 0.6 1.4 22.7 1.25 1.7 28.6 1584
1.5mm2, Multicore
RE-2Y(St)HSWAH 2C1.5 2x1x1.5 0.6 0.9 7.7 0.9 1.3 12.1 279
RE-2Y(St)HSWAH 3C1.5 3x1x1.5 0.6 0.9 8.1 0.9 1.4 12.7 312
RE-2Y(St)HSWAH 4C1.5 4x1x1.5 0.6 0.9 8.8 0.9 1.4 13.4 358
RE-2Y(St)HSWAH 5C1.5 5x1x1.5 0.6 1.0 9.8 0.9 1.4 14.4 403
RE-2Y(St)HSWAH 8C1.5 8x1x1.5 0.6 1.0 11.6 0.9 1.4 16.2 526
RE-2Y(St)HSWAH 10C1.5 10x1x1.5 0.6 1.1 13.7 0.9 1.5 18.5 630
RE-2Y(St)HSWAH 12C1.5 12x1x1.5 0.6 1.1 14.1 0.9 1.5 18.9 669
RE-2Y(St)HSWAH 14C1.5 14x1x1.5 0.6 1.1 14.8 0.9 1.5 19.6 742
RE-2Y(St)HSWAH 16C1.5 16x1x1.5 0.6 1.1 15.6 0.9 1.5 20.4 925
RE-2Y(St)HSWAH 20C1.5 20x1x1.5 0.6 1.2 17.6 1.25 1.6 23.3 1090
RE-2Y(St)HSWAH 24C1.5 24x1x1.5 0.6 1.3 19.6 1.25 1.6 25.3 1218
RE-2Y(St)HSWAH 27C1.5 27x1x1.5 0.6 1.3 20.1 1.25 1.6 25.8 1320
RE-2Y(St)HSWAH 30C1.5 30x1x1.5 0.6 1.3 20.8 1.25 1.7 26.7 1385
RE-2Y(St)HSWAH 37C1.5 37x1x1.5 0.6 1.4 22.6 1.25 1.7 28.5 1586
RE-2Y(St)HSWAH 40C1.5 40x1x1.5 0.6 1.4 23.6 1.25 1.7 29.5 1723
2.5mm2, Multicore
RE-2Y(St)HSWAH 2C2.5 2x1x2.5 0.7 0.9 8.9 0.9 1.4 13.5 370
RE-2Y(St)HSWAH 3C2.5 3x1x2.5 0.7 1.0 9.7 0.9 1.4 14.3 387
RE-2Y(St)HSWAH 4C2.5 4x1x2.5 0.7 1.0 10.5 0.9 1.4 15.1 442
RE-2Y(St)HSWAH 5C2.5 5x1x2.5 0.7 1.0 11.9 0.9 1.4 16.5 568
RE-2Y(St)HSWAH 8C2.5 8x1x2.5 0.7 1.1 13.9 0.9 1.5 18.7 729
RE-2Y(St)HSWAH 10C2.5 10x1x2.5 0.7 1.2 16.3 0.9 1.6 21.3 957
RE-2Y(St)HSWAH 12C2.5 12x1x2.5 0.7 1.2 16.9 0.9 1.6 21.9 1049
RE-2Y(St)HSWAH 14C2.5 14x1x2.5 0.7 1.2 17.7 1.25 1.6 23.4 1198
RE-2Y(St)HSWAH 16C2.5 16x1x2.5 0.7 1.3 18.9 1.25 1.6 24.6 1302
RE-2Y(St)HSWAH 20C2.5 20x1x2.5 0.7 1.3 21.1 1.25 1.7 27.0 1485
RE-2Y(St)HSWAH 24C2.5 24x1x2.5 0.7 1.4 23.6 1.25 1.7 29.5 1718
RE-2Y(St)HSWAH 27C2.5 27x1x2.5 0.7 1.4 24.1 1.25 1.8 30.2 1895
RE-2Y(St)HSWAH 30C2.5 30x1x2.5 0.7 1.5 25.2 1.25 1.8 31.3 2166
RE-2Y(St)HSWAH 37C2.5 37x1x2.5 0.7 1.5 27.2 1.25 1.8 33.3 2505
RE-2Y(St)HSWAH 40C2.5 40x1x2.5 0.7 1.6 28.5 1.25 1.9 34.8 2723
