PE Insulated, LSZH Sheathed & Overall Screened Instrumentation Cables (Multipair)
Application
For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.
Standards
Basic design to EN 50288-7
Fire Performance
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation(Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
| Sunlight Resistance | UL 1581 section 1200 |
| Oil Resistance | ICEA S-73-532** |
Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.
Voltage Rating
300V

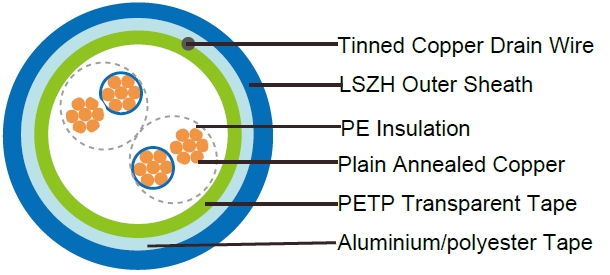

Cable Construction
- Conductor: Annealed copper solid or plain copper stranded to IEC60228 Class2.?
- Insulation: PE compound,EN50290.2-23.Pairs:Two insulated conductors uiformly twisted together with alaynot exceeding 100mm
- Binder tape: PETP transparent tape
- Overall Screen:Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire,0.5mm2
- Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS76552.6 can be offered). UV resistance, hydrocarbon resistance ,oil resistance, anti rodent and anti termite properties canbe offered as option.
Colour Code
- Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
- Outer Sheath: Black or Blue for intrinsically safe systems
Physical and Thermal Properties
- Temperature Range During Operation (Fixed State): -30°C – +90°C
- Temperature Range During Installation (Mobile State): -5°C – +50°C
Electrical Roperties
| ConductorAreaSize | mm | 0.5 | 0.75 | 1.0 | 1.3 | 1.5 | |
| Insulationthickness(nominal) | mm | 0.35 | 0.38 | 0.4 | 0.45 | 0.45 | |
| Conductorresistance(20°C) | Ω/km | 36.7 | 25 | 18.5 | 14.2 | 12.3 | |
| Insulationresistance(20°C) | MΩ.km(Min.) | 5000 | |||||
| MutualCapacitance(1kHz) | pF/m(Max.) | ||||||
| ≤4pairs | 90 | 90 | 90 | 102 | 102 | ||
| allotherpairs | 75 | 75 | 75 | 85 | 85 | ||
| Capacitanceunbalance(1kHz) | pF/500m(Max.) | 500 | |||||
| Inductance | mH/km(Max.) | 1 | |||||
| L/R(ratio)(max.) | μH/Ω | 25 | 25 | 25 | 40 | 40 | |
| OperatingvoltageUrms | V | 300 | |||||
| TestVoltage | CoretoCore | V | 1500 | ||||
| CoretoScreen | V | 1500 | |||||
Construction Parameterst
| Cable Code | RE-2Y(St)H | ||||
|---|---|---|---|---|---|
| No.of Pairsx2x CrossSection |
Nominal Insulation Thickness |
Nominal Outer Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
|
| No.x2xmm2 | mm | mm | mm | kg/km | |
| 0.5mm2,Multipair | |||||
| RE-2Y(St)H2P0.5 | 2x2x0.5 | 0.35 | 0.9 | 7.6 | 66 |
| RE-2Y(St)H4P0.5 | 4x2x0.5 | 0.35 | 0.9 | 8.8 | 98 |
| RE-2Y(St)H5P0.5 | 5x2x0.5 | 0.35 | 1.0 | 9.8 | 118 |
| RE-2Y(St)H6P0.5 | 6x2x0.5 | 0.35 | 1.0 | 10.6 | 138 |
| RE-2Y(St)H8P0.5 | 8x2x0.5 | 0.35 | 1.0 | 11.3 | 160 |
| RE-2Y(St)H10P0.5 | 10x2x0.5 | 0.35 | 1.1 | 12.9 | 201 |
| RE-2Y(St)H12P0.5 | 12x2x0.5 | 0.35 | 1.1 | 13.5 | 236 |
| RE-2Y(St)H16P0.5 | 16x2x0.5 | 0.35 | 1.1 | 15.2 | 300 |
| RE-2Y(St)H20P0.5 | 20x2x0.5 | 0.35 | 1.2 | 16.9 | 367 |
| RE-2Y(St)H24P0.5 | 24x2x0.5 | 0.35 | 1.2 | 18.3 | 419 |
| 0.75mm2,Multipair | |||||
| RE-2Y(St)H2P0.75 | 2x2x0.75 | 0.38 | 0.9 | 8.5 | 87 |
| RE-2Y(St)H4P0.75 | 3x2x0.75 | 0.38 | 1.0 | 10.0 | 123 |
| RE-2Y(St)H5P0.75 | 4x2x0.75 | 0.38 | 1.0 | 10.9 | 150 |
| RE-2Y(St)H6P0.75 | 5x2x0.75 | 0.38 | 1.0 | 11.8 | 175 |
| RE-2Y(St)H8P0.75 | 8x2x0.75 | 0.38 | 1.1 | 12.8 | 220 |
| RE-2Y(St)H10P0.75 | 10x2x0.75 | 0.38 | 1.1 | 14.5 | 267 |
| RE-2Y(St)H12P0.75 | 12x2x0.75 | 0.38 | 1.1 | 15.1 | 298 |
| RE-2Y(St)H16P0.75 | 16x2x0.75 | 0.38 | 1.2 | 17.3 | 409 |
| RE-2Y(St)H20P0.75 | 20x2x0.75 | 0.38 | 1.3 | 19.2 | 480 |
| RE-2Y(St)H24P0.75 | 24x2x0.75 | 0.38 | 1.3 | 20.8 | 561 |
| 1.0mm2,Multipair | |||||
| RE-2Y(St)H2P1.0 | 2x2x1.0 | 0.4 | 0.9 | 9.2 | 102 |
| RE-2Y(St)H4P1.0 | 3x2x1.0 | 0.4 | 1.0 | 10.9 | 156 |
| RE-2Y(St)H5P1.0 | 4x2x1.0 | 0.4 | 1.0 | 11.9 | 183 |
| RE-2Y(St)H6P1.0 | 5x2x1.0 | 0.4 | 1.0 | 13.0 | 224 |
| RE-2Y(St)H8P1.0 | 8x2x1.0 | 0.4 | 1.1 | 14.0 | 273 |
| RE-2Y(St)H10P1.0 | 10x2x1.0 | 0.4 | 1.1 | 15.9 | 324 |
| RE-2Y(St)H12P1.0 | 12x2x1.0 | 0.4 | 1.2 | 16.8 | 383 |
| RE-2Y(St)H16P1.0 | 16x2x1.0 | 0.4 | 1.2 | 19.0 | 513 |
| RE-2Y(St)H20P1.0 | 20x2x1.0 | 0.4 | 1.3 | 21.1 | 619 |
| RE-2Y(St)H24P1.0 | 24x2x1.0 | 0.4 | 1.4 | 23.1 | 738 |
| 1.3mm2,Multipair | |||||
| RE-2Y(St)H2P1.3 | 2x2x1.3 | 0.45 | 1.0 | 10.4 | 122 |
| RE-2Y(St)H4P1.3 | 3x2x1.3 | 0.45 | 1.0 | 12.0 | 190 |
| RE-2Y(St)H5P1.3 | 4x2x1.3 | 0.45 | 1.1 | 13.4 | 233 |
| RE-2Y(St)H6P1.3 | 5x2x1.3 | 0.45 | 1.1 | 14.6 | 273 |
| RE-2Y(St)H8P1.3 | 8x2x1.3 | 0.45 | 1.2 | 15.7 | 330 |
| RE-2Y(St)H10P1.3 | 10x2x1.3 | 0.45 | 1.2 | 17.9 | 422 |
| RE-2Y(St)H12P1.3 | 12x2x1.3 | 0.45 | 1.3 | 18.9 | 487 |
| RE-2Y(St)H16P1.3 | 16x2x1.3 | 0.45 | 1.3 | 21.4 | 678 |
| RE-2Y(St)H20P1.3 | 20x2x1.3 | 0.45 | 1.4 | 23.8 | 790 |
| RE-2Y(St)H24P1.3 | 24x2x1.3 | 0.45 | 1.5 | 25.9 | 921 |
| 1.5mm2,Multipair | |||||
| RE-2Y(St)H2P1.5 | 2x2x1.5 | 0.45 | 1.0 | 10.8 | 139 |
| RE-2Y(St)H4P1.5 | 3x2x1.5 | 0.45 | 1.1 | 12.7 | 212 |
| RE-2Y(St)H5P1.5 | 4x2x1.5 | 0.45 | 1.1 | 14.0 | 259 |
| RE-2Y(St)H6P1.5 | 5x2x1.5 | 0.45 | 1.2 | 15.2 | 312 |
| RE-2Y(St)H8P1.5 | 8x2x1.5 | 0.45 | 1.2 | 16.4 | 378 |
| RE-2Y(St)H10P1.5 | 10x2x1.5 | 0.45 | 1.3 | 18.8 | 473 |
| RE-2Y(St)H12P1.5 | 12x2x1.5 | 0.45 | 1.3 | 19.7 | 548 |
| RE-2Y(St)H16P1.5 | 16x2x1.5 | 0.45 | 1.4 | 22.5 | 727 |
| RE-2Y(St)H20P1.5 | 20x2x1.5 | 0.45 | 1.5 | 25.0 | 903 |
| RE-2Y(St)H24P1.5 | 24x2x1.5 | 0.45 | 1.5 | 27.1 | 1051 |
