PE Insulated, PVC Sheathed, Individual and Overall Screened & Armoured Instrumentation Cables (Multipair)
APPLICATION
For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.
STANDARDS
Basic design to EN 50288-7
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard, *** denotes optional.
VOLTAGE RATING
300V

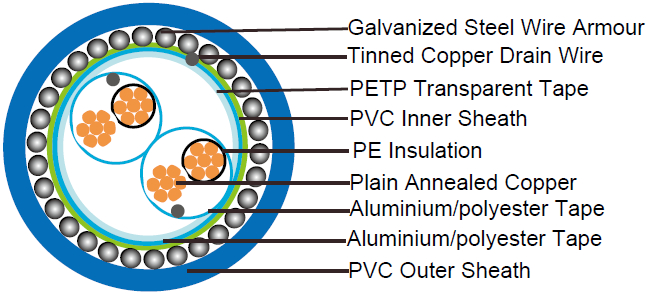

CABLE CONSTRUCTION
- Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
- Insulation: PE compound as per EN 50290. 2-23.
- Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
- Individual Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2
- Binder tape: PETP transparent tape
- Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2
- Inner Sheath: PVC compound as per EN 50290-2-22.
- Amouring: Galvanized steel wire armour
- Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.
COLOUR CODE
- Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
- Outer Sheath: Black or blue for intrinsically safe systems
PHYSICAL and THERMAL PROPERTIES
- Temperature Range During Operation (Fixed State): -30°C – +70°C
- Temperature Range During Installation (Mobile State): -20°C – +50°C
- Minimum Bending Radius: 10 X Overall Diameter
- Sunlight Resistance: UL 1581 section 1200
- Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)
ELECTRICAL ROPERTIES
| CONDUCTOR AREA SIZE | MM2 | 0.5 | 0.75 | 1.0 | 1.3 | 1.5 | |
|---|---|---|---|---|---|---|---|
| INSULATION THICKNESS (NOMINAL) | MM | 0.4 | 0.4 | 0.4 | 0.45 | 0.45 | |
| CONDUCTOR RESISTANCE (20°C) | Ω/KM | 36.7 | 25 | 18.5 | 14.2 | 12.3 | |
| INSULATION RESISTANCE (20°C) | MΩ.KM(MIN.) | 5000 | |||||
| MUTUAL CAPACITANCE (1 KHZ) | PF/M(MAX.) | 115 | |||||
| INDUCTANCE | MH/KM (MAX.) | 1 | |||||
| L / R (RATIO) (MAX.) | ΜH/Ω | 25 | 25 | 25 | 40 | 40 | |
| OPERATING VOLTAGE URMS | V | 300 | |||||
|
TEST VOLTAGE |
CORE TO CORE | V | 1500 | ||||
| CORE TO SCREEN | V | 1500 | |||||
CONSTRUCTION PARAMETERS
| CALEDONIAN CABLE CODE | RE-2Y(ST)YSWAY PIMF | |||||||
|---|---|---|---|---|---|---|---|---|
|
NO. OF PAIRSX2 XCROSS SECTION |
NOMINAL INSULATION THICK-NESS |
NOMINAL INNER SHEATH THICK-NESS | NOMINALOVERALL DIAMETER OVER INNER SHEATH |
NOMINAL ARMOUR WIRE DIAMETER |
NOMINAL OUTER SHEATH THICK-NESS | NOMINAL OVERALL DIAMETER | APPROX. WEIGHT | |
| NO.X2XMM2 | MM | MM | MM | MM | MM | MM | KG/KM | |
| 0.5mm2, Multipair | ||||||||
| RE-2Y(St)YSWAY PiMF 2P0.5 | 2x2x0.5 | 0.35 | 0.9 | 8.7 | 0.9 | 1.4 | 13.3 | 311 |
| RE-2Y(St)YSWAY PiMF 4P0.5 | 4x2x0.5 | 0.35 | 1.0 | 10.2 | 0.9 | 1.4 | 14.8 | 374 |
| RE-2Y(St)YSWAY PiMF 5P0.5 | 5x2x0.5 | 0.35 | 1.0 | 11.2 | 0.9 | 1.4 | 15.8 | 451 |
| RE-2Y(St)YSWAY PiMF 6P0.5 | 6x2x0.5 | 0.35 | 1.0 | 12.1 | 0.9 | 1.6 | 16.9 | 484 |
| RE-2Y(St)YSWAY PiMF 8P0.5 | 8x2x0.5 | 0.35 | 1.1 | 13.1 | 0.9 | 1.6 | 17.9 | 563 |
| RE-2Y(St)YSWAY PiMF 10P0.5 | 10x2x0.5 | 0.35 | 1.2 | 15.1 | 0.9 | 1.5 | 19.9 | 782 |
| RE-2Y(St)YSWAY PiMF 12P0.5 | 12x2x0.5 | 0.35 | 1.2 | 15.7 | 0.9 | 1.5 | 20.5 | 804 |
| RE-2Y(St)YSWAY PiMF 16P0.5 | 16x2x0.5 | 0.35 | 1.2 | 17.8 | 1.25 | 1.6 | 23.5 | 970 |
| RE-2Y(St)YSWAY PiMF 20P0.5 | 20x2x0.5 | 0.35 | 1.3 | 19.7 | 1.25 | 1.7 | 25.6 | 1145 |
| RE-2Y(St)YSWAY PiMF 24P0.5 | 24x2x0.5 | 0.35 | 1.4 | 21.5 | 1.25 | 1.7 | 27.4 | 1272 |
| 0.75mm2, Multipair | ||||||||
| RE-2Y(St)YSWAY PiMF 2P0.75 | 2x2x0.75 | 0.38 | 1.0 | 9.7 | 0.9 | 1.4 | 14.3 | 342 |
| RE-2Y(St)YSWAY PiMF 4P0.75 | 3x2x0.75 | 0.38 | 1.0 | 11.2 | 0.9 | 1.4 | 15.8 | 439 |
| RE-2Y(St)YSWAY PiMF 5P0.75 | 4x2x0.75 | 0.38 | 1.1 | 12.5 | 0.9 | 1.5 | 17.3 | 498 |
| RE-2Y(St)YSWAY PiMF 6P0.75 | 5x2x0.75 | 0.38 | 1.1 | 13.6 | 0.9 | 1.5 | 18.4 | 565 |
| RE-2Y(St)YSWAY PiMF 8P0.75 | 8x2x0.75 | 0.38 | 1.1 | 14.4 | 0.9 | 1.5 | 19.2 | 639 |
| RE-2Y(St)YSWAY PiMF 10P0.75 | 10x2x0.75 | 0.38 | 1.2 | 16.6 | 1.25 | 1.6 | 22.3 | 878 |
| RE-2Y(St)YSWAY PiMF 12P0.75 | 12x2x0.75 | 0.38 | 1.2 | 17.4 | 1.25 | 1.6 | 23.1 | 944 |
| RE-2Y(St)YSWAY PiMF 16P0.75 | 16x2x0.75 | 0.38 | 1.3 | 19.8 | 1.25 | 1.7 | 25.7 | 1132 |
| RE-2Y(St)YSWAY PiMF 20P0.75 | 20x2x0.75 | 0.38 | 1.4 | 22.0 | 1.25 | 1.7 | 27.9 | 1329 |
| RE-2Y(St)YSWAY PiMF 24P0.75 | 24x2x0.75 | 0.38 | 1.5 | 24.0 | 1.25 | 1.8 | 30.1 | 1488 |
| 1.0mm2, Multipair | ||||||||
| RE-2Y(St)YSWAY PiMF 2P1.0 | 2x2x1.0 | 0.4 | 1.0 | 10.4 | 0.9 | 1.4 | 15.0 | 377 |
| RE-2Y(St)YSWAY PiMF 4P1.0 | 3x2x1.0 | 0.4 | 1.0 | 12.1 | 0.9 | 1.4 | 16.7 | 502 |
| RE-2Y(St)YSWAY PiMF 5P1.0 | 4x2x1.0 | 0.4 | 1.1 | 13.5 | 0.9 | 1.5 | 18.3 | 567 |
| RE-2Y(St)YSWAY PiMF 6P1.0 | 5x2x1.0 | 0.4 | 1.1 | 14.7 | 0.9 | 1.5 | 19.5 | 658 |
| RE-2Y(St)YSWAY PiMF 8P1.0 | 8x2x1.0 | 0.4 | 1.2 | 15.8 | 0.9 | 1.5 | 20.6 | 865 |
| RE-2Y(St)YSWAY PiMF 10P1.0 | 10x2x1.0 | 0.4 | 1.2 | 18.0 | 1.25 | 1.6 | 23.7 | 994 |
| RE-2Y(St)YSWAY PiMF 12P1.0 | 12x2x1.0 | 0.4 | 1.3 | 19.0 | 1.25 | 1.7 | 24.7 | 1112 |
| RE-2Y(St)YSWAY PiMF 16P1.0 | 16x2x1.0 | 0.4 | 1.3 | 21.5 | 1.25 | 1.7 | 27.4 | 1363 |
| RE-2Y(St)YSWAY PiMF 20P1.0 | 20x2x1.0 | 0.4 | 1.4 | 23.9 | 1.25 | 1.7 | 29.8 | 1512 |
| RE-2Y(St)YSWAY PiMF 24P1.0 | 24x2x1.0 | 0.4 | 1.5 | 26.1 | 1.25 | 1.8 | 32.2 | 1996 |
| 1.3mm2, Multipair | ||||||||
| RE-2Y(St)YSWAY PiMF 2P1.3 | 2x2x1.3 | 0.45 | 1.0 | 11.4 | 0.9 | 1.4 | 16.0 | 452 |
| RE-2Y(St)YSWAY PiMF 4P1.3 | 3x2x1.3 | 0.45 | 1.1 | 13.4 | 0.9 | 1.5 | 18.2 | 577 |
| RE-2Y(St)YSWAY PiMF 5P1.3 | 4x2x1.3 | 0.45 | 1.1 | 14.8 | 0.9 | 1.5 | 19.6 | 647 |
| RE-2Y(St)YSWAY PiMF 6P1.3 | 5x2x1.3 | 0.45 | 1.2 | 16.3 | 0.9 | 1.6 | 21.3 | 858 |
| RE-2Y(St)YSWAY PiMF 8P1.3 | 8x2x1.3 | 0.45 | 1.3 | 17.6 | 1.25 | 1.6 | 23.3 | 982 |
| RE-2Y(St)YSWAY PiMF 10P1.3 | 10x2x1.3 | 0.45 | 1.3 | 20.0 | 1.25 | 1.7 | 25.9 | 1153 |
| RE-2Y(St)YSWAY PiMF 12P1.3 | 12x2x1.3 | 0.45 | 1.4 | 21.1 | 1.25 | 1.7 | 27.0 | 1287 |
| RE-2Y(St)YSWAY PiMF 16P1.3 | 16x2x1.3 | 0.45 | 1.5 | 24.1 | 1.25 | 1.8 | 30.2 | 1564 |
| RE-2Y(St)YSWAY PiMF 20P1.3 | 20x2x1.3 | 0.45 | 1.6 | 26.8 | 1.25 | 1.9 | 33.1 | 1960 |
| RE-2Y(St)YSWAY PiMF 24P1.3 | 24x2x1.3 | 0.45 | 1.7 | 29.2 | 1.25 | 2.0 | 36.4 | 2356 |
| 1.5mm2, Multipair | ||||||||
| RE-2Y(St)YSWAY PiMF 2P1.5 | 2x2x1.5 | 0.45 | 1.0 | 11.8 | 0.9 | 1.5 | 16.6 | 475 |
| RE-2Y(St)YSWAY PiMF 4P1.5 | 3x2x1.5 | 0.45 | 1.1 | 13.9 | 0.9 | 1.5 | 18.7 | 616 |
| RE-2Y(St)YSWAY PiMF 5P1.5 | 4x2x1.5 | 0.45 | 1.2 | 15.5 | 0.9 | 1.5 | 20.3 | 819 |
| RE-2Y(St)YSWAY PiMF 6P1.5 | 5x2x1.5 | 0.45 | 1.2 | 16.9 | 1.25 | 1.6 | 22.6 | 941 |
| RE-2Y(St)YSWAY PiMF 8P1.5 | 8x2x1.5 | 0.45 | 1.3 | 18.2 | 1.25 | 1.7 | 24.1 | 1039 |
| RE-2Y(St)YSWAY PiMF 10P1.5 | 10x2x1.5 | 0.45 | 1.4 | 21.0 | 1.25 | 1.7 | 26.9 | 1242 |
| RE-2Y(St)YSWAY PiMF 12P1.5 | 12x2x1.5 | 0.45 | 1.4 | 21.9 | 1.25 | 1.7 | 27.8 | 1387 |
| RE-2Y(St)YSWAY PiMF 16P1.5 | 16x2x1.5 | 0.45 | 1.5 | 25.1 | 1.25 | 1.8 | 31.2 | 1935 |
| RE-2Y(St)YSWAY PiMF 20P1.5 | 20x2x1.5 | 0.45 | 1.6 | 27.8 | 1.25 | 1.9 | 34.8 | 2227 |
| RE-2Y(St)YSWAY PiMF 24P1.5 | 24x2x1.5 | 0.45 | 1.7 | 30.4 | 1.25 | 2.0 | 37.6 | 2545 |
Note: Other conductor sizes & core configurations are available upon request.
