PE Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Single -triple)
APPLICATION
For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.
STANDARDS
Basic design to EN 50288-7
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard, *** denotes optional.
VOLTAGE RATING
300V

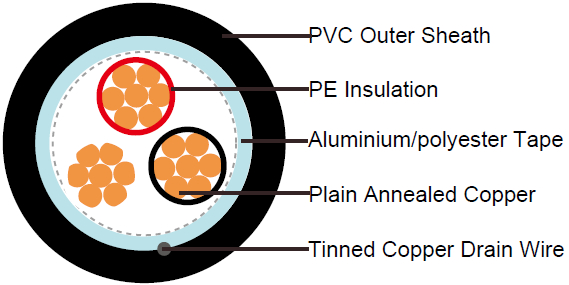

CABLE CONSTRUCTION
- Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
- Insulation: PE compound as per EN 50290. 2-23.
- Triple: Three conductors twisted to form a triple
- Lay-up: Triples laid up in layers of optimum pitch
- Separator: Polyester tape
- Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
- Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.
COLOUR CODE
- Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
- Outer Sheath: Black or blue for intrinsically safe systems
PHYSICAL and THERMAL PROPERTIES
- Temperature Range During Operation (Fixed State): -30°C – +70°C
- Temperature Range During Installation (Mobile State): -5°C – +50°C
- Minimum Bending Radius: 7.5 X Overall Diameter
- Sunlight Resistance: UL 1581 section 1200
- Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)
ELECTRICAL ROPERTIES
| CONDUCTOR AREA SIZE | MM 2 | 0.5 | 0.75 | 1.0 | 1.3 | 1.5 | |
|---|---|---|---|---|---|---|---|
| INSULATION THICKNESS (NOMINAL) | MM | 0.35 | 0.38 | 0.4 | 0.45 | 0.45 | |
|
CONDUCTOR RESISTANCE (20°C) |
Ω/KM | 36.7 | 25.0 | 18.5 | 14.2 | 12.3 | |
| INSULATION RESISTANCE (20°C) | MΩ.KM(MIN.) | 5000 | 5000 | 5000 | 5000 | 5000 | |
| MUTUAL CAPACITANCE (1 KHZ) | PF/M(MAX.) | 115 | |||||
| CAPACITANCE UNBALANCE(1 KHZ) | PF/500 M (MAX.) | 0 | |||||
| INDUCTANCE | MH/KM(MAX.) | 1 | |||||
| L / R (RATIO) (MAX.) | ΜH/Ω | 25 | 25 | 25 | 40 | 40 | |
| OPERATING VOLTAGE | V | 300 | |||||
|
TEST VOLTAGE URMS |
CORE TO CORE | V | 1500 | ||||
| CORE TO SCREEN | V | 1500 | |||||
CONSTRUCTION PARAMETERS
| CALEDONIAN CABLE CODE | RE-2Y(ST)Y | ||||
|---|---|---|---|---|---|
| NO. OF TRIPLES X3XCROSS SECTION | NOMINALINSULATION THICKNESS | NOMINALOUTER SHEATH THICKNESS | NOMINALOVERALL DIAMETER | APPROX. WEIGHT | |
| ? | NO.X3XMM2 | MM | MM | MM | KG/KM |
| RE-2Y(St)Y 1T0.5 | 1x3x0,50 | 0.35 | 0.8 | 5.4 | 49 |
| RE-2Y(St)Y 1T0.75 | 1x3x0,75 | 0.38 | 0.9 | 6.1 | 60 |
| RE-2Y(St)Y 1T1.0 | 1x3x1.0 | 0.4 | 0.9 | 6.6 | 71 |
| RE-2Y(St)Y 1T1.3 | 1x3x1,3 | 0.45 | 0.9 | 7.2 | 86 |
| RE-2Y(St)Y 1T1.5 | 1x3x1,5 | 0.45 | 0.9 | 7.5 | 97 |
Note : Other conductor sizes & core configurations are available upon request.
