PVC Insulated, PVC Sheathed, Individual and Overall Screened & Armoured Instrumentation Cables (Multi-triple)
RE-Y(St)YSWAY-TIMF 70°C / 300 V
APPLICATION
For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.
STANDARDS
Basic design to EN 50288-7
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard, *** denotes optional.
VOLTAGE RATING
300V

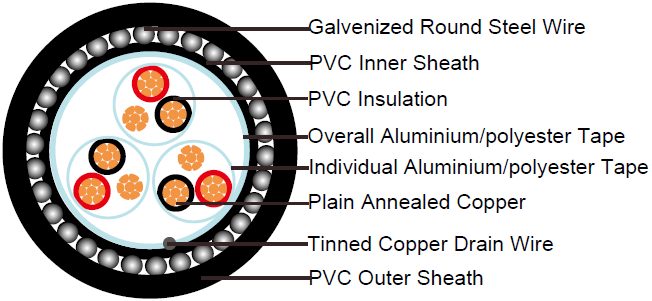

CABLE CONSTRUCTION
- Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
- Insulation: PVC compound as per EN 50290-2-21.
- Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm2
- Pair:Two conductors twisted to form a pair
- Lay-up: Pairs laid up in layers of optimum pitch
- Separator: Polyester tape
- Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
- Inner Sheath: Thermoplastic PVC compound
- Armour: Galvenized round steel wire, EN 10257-1
- Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.
COLOUR CODE
- Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
- Outer Sheath: Black or blue for intrinsically safe systems
PHYSICAL and THERMAL PROPERTIES
- Temperature Range During Operation (Fixed State): -30°C – +70°C
- Temperature Range During Installation (Mobile State): -5°C – +50°C
- Minimum Bending Radius: 7.5 X Overall Diameter
- Sunlight Resistance: UL 1581 section 1200
- Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)
ELECTRICAL ROPERTIES
| CONDUCTOR AREA SIZE | MM2 | 0.5 | 0.75 | 1.0 | 1.3 | 1.5 | |
|---|---|---|---|---|---|---|---|
| INSULATION THICKNESS (NOMINAL) | MM | 0.4 | 0.4 | 0.4 | 0.45 | 0.45 | |
| CONDUCTOR RESISTANCE (20°C) | Ω/KM | 36.7 | 25 | 18.5 | 14.2 | 12.3 | |
| INSULATION RESISTANCE (20°C) | MΩ.KM(MIN.) | 5000 | |||||
| MUTUAL CAPACITANCE (1 KHZ) | PF/M(MAX.) | 115 | |||||
| INDUCTANCE | MH/KM(MAX.) | 1 | |||||
| CAPACITANCE UNBALANCE(1 KHZ) | PF/500 M (MAX.) | 500 | |||||
| L / R (RATIO) (MAX.) | ΜH/Ω | 25 | 25 | 25 | 40 | 40 | |
| OPERATING VOLTAGE URMSV | 300 | ||||||
|
TEST VOLTAGE |
CORE TO CORE | V | 1500 | ||||
| CORE TO SCREEN | V | 1500 | |||||
CONSTRUCTION PARAMETERS
| CALEDONIAN CABLE CODE | RE-Y(ST)YSWAY-TIMF | |||||||
|---|---|---|---|---|---|---|---|---|
| NO. OF TRIPLES X3XCROSS SECTION |
NOMINAL INSULATION THICK-NESS |
NOMINAL INNER SHEATH THICK-NESS | NOMINALOVERALL DIAMETER OVER INNER SHEATH |
NOMINAL ARMOUR WIRE DIAMETER |
NOMINAL OUTER SHEATH THICK-NESS | NOMINAL OVERALL DIAMETER | APPROX. WEIGHT | |
| NO.X3XMM2 | MM | MM | MM | MM | MM | MM | KG/KM | |
| 0.5mm2, Multi-striple | ||||||||
| RE-Y(St)YSWAY-TiMF 2T0.5 | 2x3x0.5 | 0.35 | 1.0 | 9.7 | 0.9 | 1.4 | 14.3 | 363 |
| RE-Y(St)YSWAY-TiMF 4T0.5 | 4x3x0.5 | 0.35 | 1.0 | 11.1 | 0.9 | 1.4 | 15.7 | 456 |
| RE-Y(St)YSWAY-TiMF 5T0.5 | 5x3x0.5 | 0.35 | 1.1 | 12.4 | 0.9 | 1.5 | 17.2 | 516 |
| RE-Y(St)YSWAY-TiMF 6T0.5 | 6x3x0.5 | 0.35 | 1.1 | 14.0 | 0.9 | 1.5 | 18.8 | 611 |
| RE-Y(St)YSWAY-TiMF 8T0.5 | 8x3x0.5 | 0.35 | 1.1 | 14.9 | 0.9 | 1.5 | 19.7 | 766 |
| RE-Y(St)YSWAY-TiMF 10T0.5 | 10x3x0.5 | 0.35 | 1.2 | 17.0 | 1.25 | 1.6 | 22.7 | 950 |
| RE-Y(St)YSWAY-TiMF 12T0.5 | 12x3x0.5 | 0.35 | 1.2 | 17.6 | 1.25 | 1.6 | 23.3 | 975 |
| RE-Y(St)YSWAY-TiMF 16T0.5 | 16x3x0.5 | 0.35 | 1.3 | 20.1 | 1.25 | 1.7 | 26.0 | 1169 |
| RE-Y(St)YSWAY-TiMF 20T0.5 | 20x3x0.5 | 0.35 | 1.4 | 22.3 | 1.25 | 1.7 | 28.2 | 1365 |
| RE-Y(St)YSWAY-TiMF 24T0.5 | 24x3x0.5 | 0.35 | 1.5 | 24.4 | 1.25 | 1.8 | 30.5 | 1604 |
| 0.75mm2, Multi-striple | ||||||||
| RE-Y(St)YSWAY-TiMF 2T0.75 | 2x3x0.75 | 0.38 | 1.0 | 10.6 | 0.9 | 1.4 | 15.2 | 408 |
| RE-Y(St)YSWAY-TiMF 4T0.75 | 4x3x0.75 | 0.38 | 1.1 | 12.4 | 0.9 | 1.5 | 17.2 | 521 |
| RE-Y(St)YSWAY-TiMF 5T0.75 | 5x3x0.75 | 0.38 | 1.1 | 13.7 | 0.9 | 1.5 | 18.5 | 590 |
| RE-Y(St)YSWAY-TiMF 6T0.75 | 6x3x0.75 | 0.38 | 1.1 | 15.4 | 0.9 | 1.5 | 20.2 | 819 |
| RE-Y(St)YSWAY-TiMF 8T0.75 | 8x3x0.75 | 0.38 | 1.2 | 16.7 | 0.9 | 1.6 | 21.7 | 941 |
| RE-Y(St)YSWAY-TiMF 10T0.75 | 10x3x0.75 | 0.38 | 1.3 | 19.0 | 1.25 | 1.6 | 24.7 | 1103 |
| RE-Y(St)YSWAY-TiMF 12T0.75 | 12x3x0.75 | 0.38 | 1.3 | 19.7 | 1.25 | 1.7 | 25.6 | 1176 |
| RE-Y(St)YSWAY-TiMF 16T0.75 | 16x3x0.75 | 0.38 | 1.4 | 22.5 | 1.25 | 1.7 | 28.4 | 1439 |
| RE-Y(St)YSWAY-TiMF 20T0.75 | 20x3x0.75 | 0.38 | 1.5 | 24.9 | 1.25 | 1.8 | 31.0 | 1804 |
| RE-Y(St)YSWAY-TiMF 24T0.75 | 24x3x0.75 | 0.38 | 1.6 | 27.2 | 1.25 | 1.9 | 33.5 | 2164 |
| 1.0mm2, Multi-striple | ||||||||
| RE-Y(St)YSWAY-TiMF 2T1.0 | 2x3x1 | 0.4 | 1.0 | 11.5 | 0.9 | 1.4 | 16.1 | 447 |
| RE-Y(St)YSWAY-TiMF 4T1.0 | 4x3x1 | 0.4 | 1.1 | 13.4 | 0.9 | 1.5 | 18.2 | 579 |
| RE-Y(St)YSWAY-TiMF 5T1.0 | 5x3x1 | 0.4 | 1.1 | 14.8 | 0.9 | 1.5 | 19.6 | 688 |
| RE-Y(St)YSWAY-TiMF 6T1.0 | 6x3x1 | 0.4 | 1.2 | 16.9 | 0.9 | 1.5 | 21.7 | 913 |
| RE-Y(St)YSWAY-TiMF 8T1.0 | 8x3x1 | 0.4 | 1.2 | 18.1 | 1.25 | 1.6 | 23.8 | 1033 |
| RE-Y(St)YSWAY-TiMF 10T1.0 | 10x3x1 | 0.4 | 1.3 | 20.7 | 1.25 | 1.7 | 26.6 | 1277 |
| RE-Y(St)YSWAY-TiMF 12T1.0 | 12x3x1 | 0.4 | 1.3 | 21.4 | 1.25 | 1.7 | 27.3 | 1380 |
| RE-Y(St)YSWAY-TiMF 16T1.0 | 16x3x1 | 0.4 | 1.4 | 24.4 | 1.25 | 1.7 | 30.3 | 1686 |
| RE-Y(St)YSWAY-TiMF 20T1.0 | 20x3x1 | 0.4 | 1.5 | 27.1 | 1.25 | 1.8 | 33.2 | 2200 |
| RE-Y(St)YSWAY-TiMF 24T1.0 | 24x3x1 | 0.4 | 1.6 | 29.6 | 1.6 | 1.9 | 36.6 | 2504 |
| 1.3mm2, Multi-striple | ||||||||
| RE-Y(St)YSWAY-TiMF 2T1.3 | 2x3x1,3 | 0.45 | 1.1 | 12.8 | 0.9 | 1.5 | 17.6 | 532 |
| RE-Y(St)YSWAY-TiMF 4T1.3 | 4x3x1,3 | 0.45 | 1.1 | 14.7 | 0.9 | 1.5 | 19.5 | 684 |
| RE-Y(St)YSWAY-TiMF 5T1.3 | 5x3x1,3 | 0.45 | 1.2 | 16.5 | 0.9 | 1.6 | 21.5 | 924 |
| RE-Y(St)YSWAY-TiMF 6T1.3 | 6x3x1,3 | 0.45 | 1.3 | 18.8 | 1.25 | 1.6 | 24.5 | 1089 |
| RE-Y(St)YSWAY-TiMF 8T1.3 | 8x3x1,3 | 0.45 | 1.3 | 20.1 | 1.25 | 1.7 | 26.0 | 1249 |
| RE-Y(St)YSWAY-TiMF 10T1.3 | 10x3x1,3 | 0.45 | 1.4 | 23.0 | 1.25 | 1.8 | 29.1 | 1482 |
| RE-Y(St)YSWAY-TiMF 12T1.3 | 12x3x1,3 | 0.45 | 1.5 | 24.0 | 1.25 | 1.8 | 30.1 | 1592 |
| RE-Y(St)YSWAY-TiMF 16T1.3 | 16x3x1,3 | 0.45 | 1.6 | 27.4 | 1.25 | 1.9 | 33.7 | 2222 |
| RE-Y(St)YSWAY-TiMF 20T1.3 | 20x3x1,3 | 0.45 | 1.7 | 30.4 | 1.6 | 2.0 | 37.6 | 2592 |
| RE-Y(St)YSWAY-TiMF 24T1.3 | 24x3x1,3 | 0.45 | 1.8 | 33.1 | 1.6 | 2.0 | 40.3 | 2957 |
| 1.5mm2, Multi-striple | ||||||||
| RE-Y(St)YSWAY-TiMF 2T1.5 | 2x3x1,5 | 0.45 | 1.1 | 13.2 | 0.9 | 1.5 | 18.0 | 531 |
| RE-Y(St)YSWAY-TiMF 4T1.5 | 4x3x1,5 | 0.45 | 1.2 | 15.4 | 0.9 | 1.5 | 20.2 | 817 |
| RE-Y(St)YSWAY-TiMF 5T1.5 | 5x3x1,5 | 0.45 | 1.2 | 17.1 | 1.25 | 1.6 | 22.8 | 998 |
| RE-Y(St)YSWAY-TiMF 6T1.5 | 6x3x1,5 | 0.45 | 1.3 | 19.5 | 1.25 | 1.6 | 25.2 | 1162 |
| RE-Y(St)YSWAY-TiMF 8T1.5 | 8x3x1,5 | 0.45 | 1.4 | 21.1 | 1.25 | 1.7 | 27.0 | 1304 |
| RE-Y(St)YSWAY-TiMF 10T1.5 | 10x3x1,5 | 0.45 | 1.5 | 24.1 | 1.25 | 1.8 | 30.2 | 1541 |
| RE-Y(St)YSWAY-TiMF 12T1.5 | 12x3x1,5 | 0.45 | 1.5 | 24.9 | 1.25 | 1.8 | 31.0 | 1952 |
| RE-Y(St)YSWAY-TiMF 16T1.5 | 16x3x1,5 | 0.45 | 1.6 | 28.4 | 1.6 | 1.9 | 35.4 | 2384 |
| RE-Y(St)YSWAY-TiMF 20T1.5 | 20x3x1,5 | 0.45 | 1.7 | 31.6 | 1.6 | 2.0 | 38.8 | 2795 |
| RE-Y(St)YSWAY-TiMF 24T1.5 | 24x3x1,5 | 0.45 | 1.8 | 34.4 | 1.6 | 2.1 | 41.8 | 3093 |
Note : Other conductor sizes & core configurations are available upon request.
