Fire Resistant CAT6 Data Cables
FFX-CAT6U/UTP4P23FR
FFX-CAT6F/UTP4P23FR
FFX-CAT6SF/UTP4P23FR
APPLICATION
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
STANDARDS
ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568
FIRE PERFORMANCE
| Circuit Integrity |
IEC 60331-23; BS 6387 CWZ (Optional) |
| Flame Retardance (Single Vertical Wire or cable test) |
IEC 60332-1-2; EN 60332-1-2 |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) |
IEC 60332-3-24; EN 60332-3-24 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1 |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2 |
| Minimum Smoke Emission |
IEC 61034-2; EN 61034-2 |

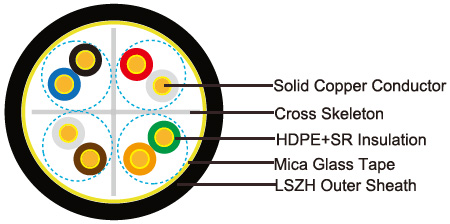

CABLE CONSTRUCTION
| Conductor |
23AWG solid bare copper. |
| Insulation |
HDPE+SR. |
| Twinning |
Two coloured insulated conductors twisted together to form a pair. |
| Overall Fire Barrier |
Mica glass tape. |
| Outer Sheath |
Halogen-free flame retardant thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered). |
| Outer Sheath Option |
UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. |

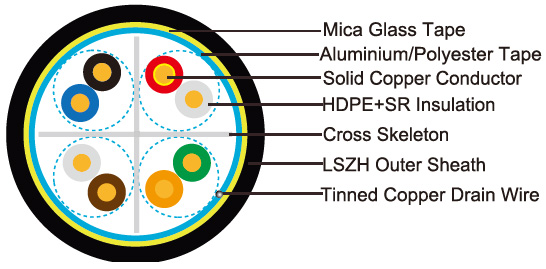

| Cat6F/UTP |
These cables have collective shielding of Aluminium/polyester tape with drain wire. |

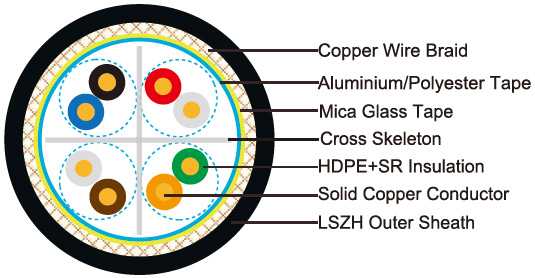

| Cat6SF/UTP |
These cables have double collective shielding of Aluminium/polyester tape & copper wire braid. |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range |
-30°C - +75°C |
| Minimum bending radius during installation (mobile state) |
8 x Overall Diameter |
| Minimum bending radius during operation (fixed state) |
4 x Overall Diameter |
ELECTRICAL PROPERTIES
| AWG |
γ |
23 |
| Nominal Conductor Diameter |
mm |
0.56/0.57/0.58 |
| Maximum DC Resistance@20°C |
Ω/100m |
9.38 |
| Maximum DCR Unbalance |
% |
5 |
| Maximum Mutual Capacitance |
pf/m |
5.6 |
| Maximum Capacitance Unbalance |
pf/100m |
330 |
| Characteristic Impedance@1-100MHz |
Ω |
100±15 |
| Maximum Propagation Delay Skew |
ns/100m |
44 |
TRANSMISSION PROPERTIES
| FREQ |
Maximum Attenuation |
Minimum NEXT |
Minimum PSNEXT |
Minimum ELFEXT |
Minimum PSELFEXT |
Minimum RL |
| MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB |
| 0.772 |
1.8 |
76.0 |
74.0 |
70.0 |
67.0 |
— |
| 1 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
20.0 |
| 4 |
3.8 |
65.3 |
63.3 |
55.7 |
52.7 |
23.0 |
| 8 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
24.5 |
| 10 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
25.0 |
| 16 |
7.6 |
56.3 |
54.3 |
43.7 |
40.7 |
25.0 |
| 20 |
8.5 |
54.8 |
52.8 |
41.7 |
38.7 |
25.0 |
| 25 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
24.3 |
| 31.25 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
23.6 |
| 62.5 |
15.4 |
47.4 |
45.4 |
31.8 |
28.8 |
21.5 |
| 100 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
20.1 |
| 155 |
25.2 |
41.5 |
39.5 |
23.9 |
20.9 |
18.8 |
| 200 |
29.0 |
39.8 |
37.8 |
21.7 |
18.7 |
18.0 |
| 250 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
17.3 |
CONSTRUCTION PARAMETERS
| Cable Code |
Conductor Diameter |
Diameter Over Insulation |
Pairs |
Screen |
Approx. Overall Diameter |
| |
mm |
mm |
γ |
|
mm |
| CAT6U/UTP4P23FR |
0.56/0.57 |
1.77 |
4 |
Nil |
8.9 |
| CAT6F/UTP4P23FR |
0.57/0.58 |
1.77 |
4 |
Overall Aluminum Tape Screen |
9.3 |
| CAT6SF/UTP4P23FR |
0.57/0.58 |
1.77 |
4 |
Overall Aluminum Tape Screen& Copper Wire Braid |
9.6 |
