Fire Resistant Individual and Overall Screened, Armoured Instrumentation Cables (Multipair)

RE-2X(St)HSWAH PiMF...CI

APPLICATION

The armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

FIRE PERFORMANCE

Circuit Integrity IEC 60331-21; BS 6387 CWZ (Optional); BS EN 50200 (PH30/PH60/PH120)
Flame Retardance (Single Vertical Wire or cable test) IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
Halogen Free IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission IEC 61034-2; EN 61034-2

VOLTAGE RATING

300, 500V

  • Individual and Overall Screened, Armoured Instrumentation Cable
  • RE-2X(St)HSWAH PiMF...CI

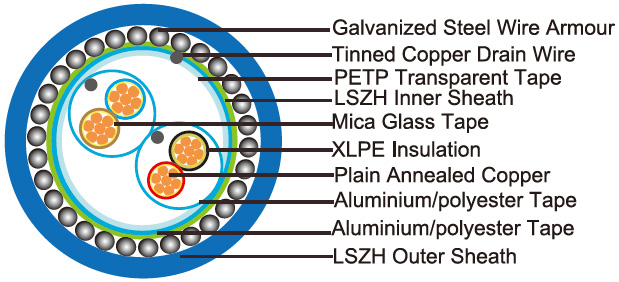

CABLE CONSTRUCTION

Conductor Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and class 5.
Fire Barrier Mica glass tape.
Insulation Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.
Pairs Two insulated conductors uniformly twisted together with a lay not exceeding 100mm (≤1.5mm²) or 150mm (for 2.5mm²).
Individual Screen Aluminium/polyester tape is applied over each pair with metallic side down in contact with tinned copper drain wire, 0.5mm².
Binder Tape PETP transparent tape.
Overall Screen Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm². Copper braid screen or aluminium/polyester tape combination with copper braid screen can be offered as option.
Inner Sheath Thermoplastic LSZH compound.
Amouring Galvanized steel wire armour.
Outer Sheath Thermoplastic LSZH compound according to EN 50290-2-22.
Outer Sheath Option Thermoplastic LSZH compound. UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
Outer Sheath Black. Other colours can be offered upon request.

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation -30°C - +90°C
Temperature range during installation -5°C - +50°C
Maximum short circuit temperature (5 Seconds) 250°C
Minimum bending radius 10 x Overall Diameter

ELECTRICAL PROPERTIES

300V

Conductor area size mm² 0.5 0.75 1.0 1.5
Insulation thickness (Nominal) mm 0.4 0.4 0.4 0.5
Insulation thickness (Minimum) mm 0.26 0.26 0.26 0.35
Conductor resistance (20°C) ohm/km 36.7 25.0 18.5 12.3
Minimum Insulation resistance (20°C) Mohm/km 1000
Maximum Mutual capacitance nf/km 250
Capacitance Unbalance pf/500m 500
Maximum l/R (ratio) μH/Ω 25 25 25 40
Operating Voltage V 300
Dielectric strength for 1 minute AC V ≥1000
DC V ≥2000

500v

Conductor area size mm² 0.5 0.75 1.0 1.5 2.5
Insulation thickness (nominal) mm 0.6 0.6 0.6 0.6 0.7
Insulation thickness (minimum) mm 0.44 0.44 0.44 0.44 0.53
Conductor resistance (20°C) ohm/km 36.7 25.0 18.5 12.3 7.4
Minimum Insulation resistance (20°C) Mohm/km 1000
Maximum Mutual capacitance nf/km 250
Capacitance Unbalance pf/500m 500
Maximum l/R (ratio) μH/Ω 25 25 25 40 60
Operating Voltage V 500
Dielectric strength for 1 minute AC V ≥2000
DC V ≥3000

CONSTRUCTION PARAMETERS

300V

Conductor RE-2X(St)HSWAH PiMF...CI
No. of Pairs X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Approx. Overall Diameter Approx. Weight
mm² γ€€ mm mm mm mm mm kg/km
0.5mm²
2x2x0.5 2 0.4 1.0 0.9 1.4 16.6 490
3x2x0.5 2 0.4 1.0 0.9 1.4 17.3 546
4x2x0.5 2 0.4 1.1 0.9 1.5 19.0 644
5x2x0.5 2 0.4 1.1 1.25 1.5 20.7 851
8x2x0.5 2 0.4 1.1 1.25 1.5 24.0 1067
10x2x0.5 2 0.4 1.2 1.25 1.6 28.0 1309
12x2x0.5 2 0.4 1.2 1.25 1.6 28.6 1403
16x2x0.5 2 0.4 1.3 1.6 1.7 32.4 1888
20x2x0.5 2 0.4 1.4 1.6 1.7 34.8 2152
24x2x0.5 2 0.4 1.5 1.6 1.8 39.3 2542
0.75mm²
2x2x0.75 2 0.4 1.0 0.9 1.4 17.2 524
3x2x0.75 2 0.4 1.1 0.9 1.5 18.4 613
4x2x0.75 2 0.4 1.1 0.9 1.5 19.8 697
5x2x0.75 2 0.4 1.2 1.25 1.5 22.2 937
8x2x0.75 2 0.4 1.2 1.25 1.6 25.5 1197
10x2x0.75 2 0.4 1.3 1.25 1.6 29.3 1451
12x2x0.75 2 0.4 1.3 1.25 1.6 30.0 1578
16x2x0.75 2 0.4 1.4 1.6 1.7 34.1 2095
20x2x0.75 2 0.4 1.5 1.6 1.8 36.8 2415
24x2x0.75 2 0.4 1.5 1.6 1.8 41.3 2800
1.0mm²
2x2x1.0 2 0.4 1.0 0.9 1.4 18.0 567
3x2x1.0 2 0.4 1.1 0.9 1.5 19.2 667
4x2x1.0 2 0.4 1.2 1.25 1.5 21.6 909
5x2x1.0 2 0.4 1.2 1.25 1.6 23.4 1036
8x2x1.0 2 0.4 1.2 1.25 1.6 26.7 1319
10x2x1.0 2 0.4 1.3 1.6 1.7 31.7 1821
12x2x1.0 2 0.4 1.4 1.6 1.7 32.8 1982
16x2x1.0 2 0.4 1.5 1.6 1.8 36.2 2372
20x2x1.0 2 0.4 1.5 1.6 1.8 38.8 2692
24x2x1.0 2 0.4 1.6 2.0 1.9 43.9 3516
1.5mm²
2x2x1.5 2 0.5 1.1 1.25 1.5 20.7 805
3x2x1.5 2 0.5 1.2 1.25 1.6 22.1 937
4x2x1.5 2 0.5 1.2 1.25 1.6 23.8 1072
5x2x1.5 2 0.5 1.3 1.25 1.6 25.8 1232
8x2x1.5 2 0.5 1.3 1.25 1.7 29.9 1604
10x2x1.5 2 0.5 1.4 1.6 1.8 35.5 2198
12x2x1.5 2 0.5 1.5 1.6 1.8 36.7 2400
16x2x1.5 2 0.5 1.6 1.6 1.9 40.6 2887
20x2x1.5 2 0.5 1.7 2.0 2.0 43.9 3679
24x2x1.5 2 0.5 1.8 2.0 2.0 49.5 4311

500v

Conductor RE-2X(St)HSWAH...CI
No. of Pairs X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Approx. Overall Diameter Approx. Weight
mm² γ€€ mm mm mm mm mm kg/km
0.5mm²
2x2x0.5 2 0.6 1.0 0.9 1.4 18.0 548
3x2x0.5 2 0.6 1.1 0.9 1.5 19.3 638
4x2x0.5 2 0.6 1.1 1.25 1.5 21.4 853
5x2x0.5 2 0.6 1.2 1.25 1.6 23.4 987
8x2x0.5 2 0.6 1.2 1.25 1.6 26.8 1241
10x2x0.5 2 0.6 1.3 1.25 1.7 31.1 1522
12x2x0.5 2 0.6 1.4 1.25 1.7 32.2 1656
16x2x0.5 2 0.6 1.5 1.6 1.8 36.3 2214
20x2x0.5 2 0.6 1.5 1.6 1.8 38.9 2493
24x2x0.5 2 0.6 1.6 2.0 1.9 44.0 3278
0.75mm²
2x2x0.75 2 0.6 1.1 0.9 1.5 19.0 608
3x2x0.75 2 0.6 1.1 1.25 1.5 20.7 806
4x2x0.75 2 0.6 1.2 1.25 1.6 22.6 943
5x2x0.75 2 0.6 1.2 1.25 1.6 24.3 1059
8x2x0.75 2 0.6 1.3 1.25 1.6 28.0 1361
10x2x0.75 2 0.6 1.4 1.6 1.7 33.3 1882
12x2x0.75 2 0.6 1.4 1.6 1.7 34.2 2014
16x2x0.75 2 0.6 1.5 1.6 1.8 37.8 2402
20x2x0.75 2 0.6 1.6 1.6 1.9 40.9 2769
24x2x0.75 2 0.6 1.7 2.0 2.0 46.3 3622
1.0mm²
2x2x1.0 2 0.6 1.1 0.9 1.5 19.8 652
3x2x1.0 2 0.6 1.2 1.25 1.5 21.7 883
4x2x1.0 2 0.6 1.2 1.25 1.6 23.5 1018
5x2x1.0 2 0.6 1.3 1.25 1.6 25.5 1167
8x2x1.0 2 0.6 1.3 1.25 1.7 29.6 1504
10x2x1.0 2 0.6 1.4 1.6 1.7 34.8 2049
12x2x1.0 2 0.6 1.5 1.6 1.8 36.1 2250
16x2x1.0 2 0.6 1.6 1.6 1.9 40.0 2692
20x2x1.0 2 0.6 1.7 2.0 1.9 43.0 3409
24x2x1.0 2 0.6 1.8 2.0 2.0 48.8 4017
1.5mm²
2x2x1.5 2 0.6 1.1 1.25 1.5 21.5 841
3x2x1.5 2 0.6 1.2 1.25 1.6 22.9 980
4x2x1.5 2 0.6 1.3 1.25 1.6 24.9 1140
5x2x1.5 2 0.6 1.3 1.25 1.7 27.0 1305
8x2x1.5 2 0.6 1.4 1.6 1.7 32.0 1905
10x2x1.5 2 0.6 1.5 1.6 1.8 37.1 2331
12x2x1.5 2 0.6 1.6 1.6 1.9 38.5 2566
16x2x1.5 2 0.6 1.7 2.0 2.0 42.6 3401
20x2x1.5 2 0.6 1.8 2.0 2.0 45.9 3892
24x2x1.5 2 0.6 1.9 2.0 2.1 52.1 4590
2.5mm²
2x2x2.5 2 0.7 1.2 1.25 1.6 24.1 1022
3x2x2.5 2 0.7 1.3 1.25 1.0 25.5 1186
4x2x2.5 2 0.7 1.4 1.25 1.7 27.9 1405
5x2x2.5 2 0.7 1.5 1.25 1.8 30.6 1639
8x2x2.5 2 0.7 1.6 1.6 1.8 36.2 2392
10x2x2.5 2 0.7 1.7 1.6 2.0 42.3 2955
12x2x2.5 2 0.7 1.8 2.0 2.0 43.7 3567
16x2x2.5 2 0.7 1.9 2.0 2.1 48.5 4280
20x2x2.5 2 0.7 2.1 2.5 2.2 52.6 5499
24x2x2.5 2 0.7 2.2 2.5 2.4 59.9 6505
