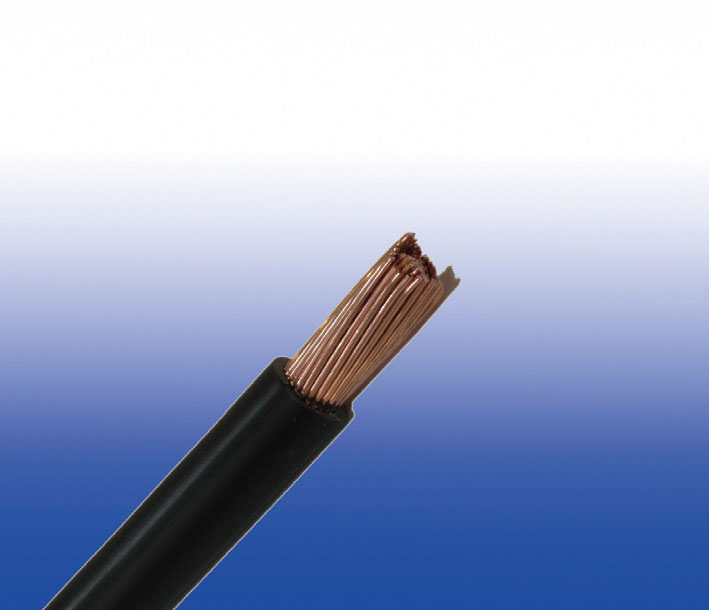

450/750V PVC Insulated, Non-sheathed Power Cables (Single Core)

FGD100 07V-U/R/K (CU/PVC 450/750V Class 1/2/5)

BS Code : 6491X

HAR Code : H07V-U, H07V-R, H07V-K

APPLICATION

This cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings. This product type is CE and TUV approved.

STANDARDS

Basic design to BS EN 50525-2-31(formerly BS 6004:2000)

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2

VOLTAGE RATING

450/750V

  • FIREGUARD Flame Retardant Power Cables
  • FIREGUARD Flame Retardant Power Cables

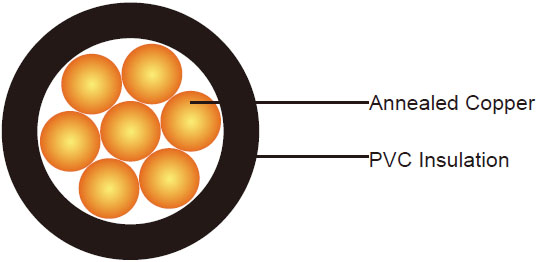

CABLE CONSTRUCTION

Conductor H05V-U Class 1 solid copper conductor to BS EN 60228.
  H05V-R Class 2 stranded copper conductor to BS EN 60228.
  H05V-K Class 5 stranded copper conductor to BS EN 60228.
Insulation PVC Type TI 1 according to BS EN 50363-3

COLOUR CODE

Black, Blue, Brown, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green and Yellow.

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation (PVC) 70°C
Maximum short circuit temperature (5 Seconds) 160°C
Minimum bending radius Up to 8mm² 4 x overall diameter
  8mm² to 12mm² 5 x overall diameter
  Above 12mm² 6 x overall diameter

CONSTRUCTION PARAMETERS

Conductor FGD100 07V-U/R/K　
  No. of Cores x Cross Section Class of Conductor Nominal Insulation Thickness Maximum Overall Diameter Approx. Weight
  No.xmm² 　 mm mm kg/km
  1x1.5 1 0.7 3.2 21
  1x2.5 1 0.8 3.9 33
  1x4.0 1 0.8 4.4 49
  1x6.0 1 0.8 5.0 69
  1x10 1 1.0 6.4 115
  1x1.5 2 0.7 3.3 23
  1x2.5 2 0.8 4.0 35
  1x4.0 2 0.8 4.6 51
  1x6.0 2 0.8 5.2 71
  1x10 2 1.0 6.7 120
  1x16 2 1.0 7.8 170
  1x25 2 1.2 9.7 260
  1x35 2 1.2 10.9 350
  1x50 2 1.4 12.8 480
  1x70 2 1.4 14.6 680
  1x95 2 1.6 17.1 930
  1x120 2 1.6 18.8 1160
  1x150 2 1.8 20.9 1430
  1x185 2 2.0 23.3 1780
  1x240 2 2.2 26.6 2360
  1x300 2 2.4 29.6 2940
  1x400 2 2.6 33.2 3740
  1x500 2 2.8 36.9 4950
  1x630 2 2.8 41.1 6300
  1x800 2 2.8 45.7 8610
  1x1000 2 3.0 51.0 10820
  1x1.5 5 0.7 3.4 20
  1x2.5 5 0.8 4.1 31
  1x4.0 5 0.8 4.8 48
  1x6.0 5 0.8 5.3 69
  1x10 5 1.0 6.8 121
  1x16 5 1.0 8.1 211
  1x25 5 1.2 10.2 303
  1x35 5 1.2 11.7 417
  1x50 5 1.4 13.9 539
  1x70 5 1.4 16.0 730
  1x95 5 1.6 18.2 900
  1x120 5 1.6 20.2 1135
  1x150 5 1.8 22.5 1410
  1x185 5 2.0 24.9 1845
  1x240 5 2.2 28.4 2270

ELECTRICAL PROPERTIES

Conductor Operating Temperature 70°C
Ambient Temperature 30°C

Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4D1A

Conductor cross- sectional area Reference Method A (enclosed in conduit in thermally insulating wall etc) Reference Method B (enclosed in conduit on a wall or in trunking etc) Reference Method C (clipped direct) Reference Method F (in free air or on a perforated cable tray horizontal or vertical etc)
Touching Spaced by one cable diameter
2 cables, single-phase a.c. or d.c. 3 or 4 cables, three -phase a.c. 2 cables, single-phase a.c. or d.c 3 or 4 cables, three-phase a.c. 2 cables, single-phase a.c. or d.c. flat and touching 3 or 4 cables, three-phase a.c. flat and touching or trefoil 2 cables, single-phase a.c. or d.c. flat 3 cables, three-phase a.c. flat 3 cables, three-phase a.c. trefoil 2 cables, single-phase a.c. or d.c. or 3 cables three- phase a.c. flat
Horizontal Vertical
1 2 3 4 5 6 7 8 9 10 11 12
mm² A A A A A A A A A A A
1.5 14.5 13.5 17.5 15.5 20 18 - - - - -
2.5 20 18 24 21 27 25 - - - - -
4.0 26 24 32 28 37 33 - - - - -
6.0 34 31 41 36 47 43 - - - - -
10 46 42 57 50 65 59 - - - - -
16 61 56 76 68 87 79 - - - - -
25 80 73 101 89 114 104 131 114 110 146 130
35 99 89 125 110 141 129 162 143 137 181 162
50 119 108 151 134 182 167 196 174 167 219 197
70 151 136 192 171 234 214 251 225 216 281 254
95 182 164 232 207 284 261 304 275 264 341 311
120 210 188 269 239 330 303 352 321 308 396 362
150 240 216 300 262 381 349 406 372 356 456 419
185 273 245 341 296 436 400 463 427 409 521 480
240 321 286 400 346 515 472 546 507 485 615 569
300 367 328 458 394 594 545 629 587 561 709 659
400 - - 546 467 694 634 754 689 656 852 795
500 - - 626 533 792 723 868 789 749 982 920
630 - - 720 611 904 826 1005 905 855 1138 1070
800 - - - - 1030 943 1086 1020 971 1265 1188
1000 - - - - 1154 1058 1216 1149 1079 1420 1337

Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4D1B

Nominal Cross Section Area 2 cables d.c. 2 cables, single-phase a.c. 3 or 4 cables, three-phase a.c.
Ref. Methods A and B (enclosed in conduit or trunking) Ref. Methods C & F(clipped direct, on trays or in free air) Ref. Methods A & B (enclosed in conduit or trunking Ref. Methods C & F (clipped direct, on trays or in free air)
Cables touching Cables spaced* Cables touching, Trefoil Cables touching, Flat Cables spaced*, Flat
1 2 3 4 5 6 7 8 9
mm² mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
1.5 29 29 29 29 25 25 25 25
2.5 18 18 18 18 15 15 15 15
4.0 11 11 11 11 9.5 9.5 9,5 9.5
6.0 7.3 7.3 7.3 7.3 6.4 6.4 6.4 6.4
10 4.4 4.4 4.4 4.4 3.8 3.8 3.8 3.8
16 2.8 2.8 2.8 2.8 2.4 2.4 2.4 2.4
    r x z r x z r x z r x z r x z r x z r x z
25 1.75 1.80 0.33 1.80 1.75 0.20 1.75 1.75 0.29 1.80 1.50 0.29 1.55 1.50 0.175 1.50 1.50 0.25 1.55 1.50 0.32 1.55
35 1.25 1.30 0.31 1.30 1.25 0.195 1.25 1.25 0.28 1.30 1.10 0.27 1.10 1.10 0.170 1.10 1.10 0.24 1.10 1.10 0.32 1.15
50 0.93 0.95 0.3 1.0 0.93 0.19 0.95 0.93 0.28 0.97 0.81 0.26 0.85 0.8 0.165 0.82 0.8 0.24 0.84 0.8 0.32 0.86
70 0.63 0.65 0.29 0.72 0.63 0.185 0.66 0.63 0.27 0.69 0.56 0.25 0.61 0.55 0.16 0.57 0.55 0.24 0.6 0.55 0.31 0.63
95 0.46 0.49 0.28 0.56 0.47 0.18 0.5 0.47 0.27 0.54 0.42 0.24 0.48 0.41 0.155 0.43 0.41 0.23 0.47 0.4 0.31 0.51
120 0.36 0.39 0.27 0.47 0.37 0.175 0.41 0.37 0.26 0.45 0.33 0.23 0.41 0.32 0.15 0.36 0.32 0.23 0.4 0.32 0.3 0.44
150 0.29 0.31 0.27 0.41 0.3 0.175 0.34 0.29 0.26 0.39 0.27 0.23 0.36 0.26 0.15 0.3 0.26 0.23 0.34 0.26 0.3 0.4
185 0.23 0.25 0.27 0.37 0.24 0.17 0.29 0.24 0.26 0.35 0.22 0.23 0.32 0.21 0.145 0.26 0.21 0.22 0.31 0.21 0.3 0.36
240 0.18 0.195 0.26 0.33 0.185 0.165 0.25 0.185 0.25 0.31 0.17 0.23 0.29 0.16 0.145 0.22 0.16 0.22 0.27 0.16 0.29 0.34
300 0.145 0.16 0.26 0.31 0.15 0.165 0.22 0.15 0.25 0.29 0.14 0.23 0.27 0.13 0.14 0.19 0.13 0.22 0.25 0.13 0.29 0.32
400 0.105 0.13 0.26 0.29 0.12 0.16 0.2 0.115 0.25 0.27 0.12 0.22 0.25 0.105 0.14 0.175 0.105 0.21 0.24 0.1 0.29 0.31
500 0.086 0.11 0.26 0.28 0.098 0.155 0.185 0.093 0.24 0.26 0.1 0.22 0.25 0.086 0.135 0.16 0.086 0.21 0.23 0.081 0.29 0.3
630 0.068 0.094 0.25 0.27 0.081 0.155 0.175 0.076 0.24 0.25 0.08 0.22 0.24 0.072 0.135 0.15 0.072 0.21 0.22 0.066 0.28 0.29
800 0.053 - - - 0.068 0.15 0.165 0.061 0.24 0.25 - - - 0.06 0.13 0.145 0.06 0.21 0.22 0.053 0.28 0.29
1000 0.042 - - - 0.059 0.15 0.16 0.05 0.24 0.24 - - - 0.052 0.13 0.14 0.052 0.2 0.21 0.044 0.28 0.28

Note: *Spacings larger than one cable diameter will result in a large voltage drop.

r = conductor resistance at operating temperature

x = reactance

z = impedance
