LSZH Flame Retardant RS 485 Databus Cables
APPLICATION
The cables are designed for RS 485 data connections where continued functionality is required during a fire situation. This cable combines low capacitance insulation with one of the highest levels of screening to provide high speed, interference free, data transmission where continued functionality is required during a fire situation.
STANDARDS
Basic design adapted to EIA/TIA 485
FIRE PERFORMANCE
| Flame Retardance (Single vertical wire or cable test) | IEC 60332-1-2; EN 60332-1-2 |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) | IEC 60332-3-24; EN 60332-3-24 |
| Halogen Free | IEC 60754-1; EN 50267-2-1 |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2 |
| Minimum Smoke Emission | IEC 61034-2; EN 61034-2 |
CABLE CONSTRUCTION
MULTIPAIR RS 485 OVERALL SCREENED DATABUS CABLE
Conductors : Tinned copper wire, stranded according to IEC 60228 class 2 or class5.
Insulation : Foam PE or foam skin PE.
Cabling Elements : Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation.
Cabling : Pairs are cabled together in concentric layers.
Overall Screen : Aluminum/polyester tape with tinned copper drain wire.
Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

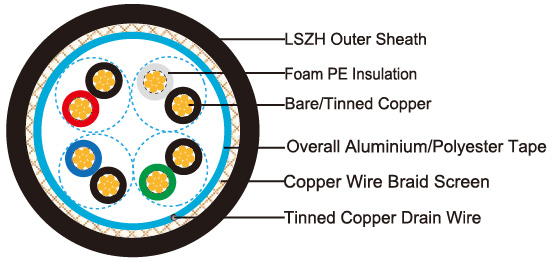

MULTIPAIR RS 485 OVERALL DOUBLE SCREENED DATABUS CABLE
Conductors : Tinned copper wire, stranded according to IEC 60228 class 2 or class5.
Insulation : Foam PE or foam skin PE.
Cabling Elements : Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation.
Cabling : Pairs are cabled together in concentric layers.
Overall Screen : Aluminium/polyester tape+copper wire braid.
Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.
MULTIPAIR RS 485 INDIVIDUAL & OVERALL SCREENED DATABUS CABLE
Conductors : Tinned copper wire, stranded according to IEC 60228 class 2 or class5.
Insulation : Foam PE or foam skin PE.
Cabling Elements : Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation.
Cabling : Pairs are cabled together in concentric layers.
Individual Screen : Individual aluminium/polyester tape.
Overall Screen : Copper wire braid.
Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.
MULTIPAIR RS 485 OVERALL SCREENED DATABUS CABLE
Conductors : Tinned copper wire, stranded according to IEC 60228 class 2 or class5.
Insulation : Foam PE or foam skin PE.
Cabling Elements : Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation.
Cabling : Pairs are cabled together in concentric layers.
Overall Screen : Copper wire braid.
Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.
PHYSICAL AND THERMAL PROPERTIES
Temperature range during operation (fixed state) : -20°C - +90°C
Temperature range during installation (mobile state) : -5°C - +60°C
Minimum bending radius : 8 x Overall Diameter
ELECTRICAL PROPERTIES
| Dielectric test | 1000 V r.m.s. for 5’ (core-core) |
| 1000 V r.m.s. for 5’ (core-screen) | |
| Impedance | 120Ω |
| Capacitance | 45 nF/km conductor to conductor |
| 90 nF/km conductor to shield |
CONSTRUCTION PARAMETERS
Multipair RS 485 Overall Screened Databus Cable
RE-02Y(St)H / RE-02YS(St)H
| No.of Pair | Nominal Cross Sectional Area | No./Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|---|
| No. | mm² | No/mm | mm | mm | mm | kg/km |
| 1 | 0.22 | 7/0.2 | 0.7 | 1.1 | 5.7 | 45 |
| 2 | 0.22 | 7/0.2 | 0.7 | 1.1 | 9.0 | 80 |
| 4 | 0.22 | 7/0.2 | 0.7 | 1.1 | 10.3 | 112 |
| 1 | 0.50 | 16/0.2 | 0.7 | 1.1 | 6.2 | 57 |
| 2 | 0.50 | 16/0.2 | 0.7 | 1.1 | 10.1 | 103 |
| 4 | 0.50 | 16/0.2 | 0.7 | 1.1 | 11.7 | 153 |
| 1 | 0.75 | 24/0.2 | 0.7 | 1.1 | 6.7 | 66 |
| 2 | 0.75 | 24/0.2 | 0.7 | 1.1 | 10.9 | 123 |
| 4 | 0.75 | 24/0.2 | 0.7 | 1.1 | 12.7 | 187 |
| 1 | 1.00 | 30/0.2 | 0.7 | 1.1 | 6.8 | 72 |
| 2 | 1.00 | 30/0.2 | 0.7 | 1.1 | 11.2 | 131 |
| 4 | 1.00 | 30/0.2 | 0.7 | 1.1 | 13.0 | 203 |
Multipair RS 485 Overall Double Screened Databus Cable
RE-02Y(St)CH / RE-02YS(St)CH
| No.of Pair | Nominal Cross Sectional Area | No./Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|---|
| No. | mm² | No/mm | mm | mm | mm | kg/km |
| 1 | 0.22 | 7/0.2 | 0.7 | 1.1 | 6.2 | 60 |
| 2 | 0.22 | 7/0.2 | 0.7 | 1.1 | 9.4 | 105 |
| 4 | 0.22 | 7/0.2 | 0.7 | 1.1 | 10.8 | 142 |
| 1 | 0.50 | 16/0.2 | 0.7 | 1.1 | 6.7 | 74 |
| 2 | 0.50 | 16/0.2 | 0.7 | 1.1 | 10.6 | 133 |
| 4 | 0.50 | 16/0.2 | 0.7 | 1.1 | 12.1 | 187 |
| 1 | 0.75 | 24/0.2 | 0.7 | 1.1 | 7.1 | 85 |
| 2 | 0.75 | 24/0.2 | 0.7 | 1.1 | 11.4 | 155 |
| 4 | 0.75 | 24/0.2 | 0.7 | 1.1 | 13.2 | 225 |
| 1 | 1.00 | 30/0.2 | 0.7 | 1.1 | 7.3 | 91 |
| 2 | 1.00 | 30/0.2 | 0.7 | 1.1 | 11.7 | 164 |
| 4 | 1.00 | 30/0.2 | 0.7 | 1.1 | 13.5 | 242 |
Multipair RS 485 Individual & Overall Screened Databus Cable
RE-02Y(St)CH PiMF / RE-02YS(St)CH PiMF
| No.of Pair | Nominal Cross Sectional Area | No./Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|---|
| No. | mm² | No/mm | mm | mm | mm | kg/km |
| 1 | 0.22 | 7/0.2 | 0.7 | 1.1 | 6.4 | 61 |
| 2 | 0.22 | 7/0.2 | 0.7 | 1.1 | 10.2 | 110 |
| 4 | 0.22 | 7/0.2 | 0.7 | 1.1 | 11.7 | 149 |
| 1 | 0.50 | 16/0.2 | 0.7 | 1.1 | 7.0 | 75 |
| 2 | 0.50 | 16/0.2 | 0.7 | 1.1 | 11.4 | 137 |
| 4 | 0.50 | 16/0.2 | 0.7 | 1.1 | 13.2 | 195 |
| 1 | 0.75 | 24/0.2 | 0.7 | 1.1 | 7.5 | 86 |
| 2 | 0.75 | 24/0.2 | 0.7 | 1.1 | 12.3 | 160 |
| 4 | 0.75 | 24/0.2 | 0.7 | 1.1 | 14.3 | 233 |
| 1 | 1.00 | 30/0.2 | 0.7 | 1.1 | 7.6 | 92 |
| 2 | 1.00 | 30/0.2 | 0.7 | 1.1 | 12.6 | 169 |
| 4 | 1.00 | 30/0.2 | 0.7 | 1.1 | 14.7 | 251 |
Multipair RS 485 Overall Screened Databus Cable
RE-02YCH / RE-02YSCH
| No.of Pair | Nominal Cross Sectional Area | No./Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|---|
| No. | mm² | No/mm | mm | mm | mm | kg/km |
| 1 | 0.22 | 7/0.2 | 0.7 | 1.1 | 6.0 | 56 |
| 2 | 0.22 | 7/0.2 | 0.7 | 1.1 | 9.2 | 99 |
| 4 | 0.22 | 7/0.2 | 0.7 | 1.1 | 10.6 | 134 |
| 1 | 0.50 | 16/0.2 | 0.7 | 1.1 | 6.5 | 69 |
| 2 | 0.50 | 16/0.2 | 0.7 | 1.1 | 10.4 | 125 |
| 4 | 0.50 | 16/0.2 | 0.7 | 1.1 | 12.0 | 179 |
| 1 | 0.75 | 24/0.2 | 0.7 | 1.1 | 6.9 | 80 |
| 2 | 0.75 | 24/0.2 | 0.7 | 1.1 | 11.2 | 147 |
| 4 | 0.75 | 24/0.2 | 0.7 | 1.1 | 13.0 | 216 |
| 1 | 1.00 | 30/0.2 | 0.7 | 1.1 | 7.1 | 86 |
| 2 | 1.00 | 30/0.2 | 0.7 | 1.1 | 11.5 | 156 |
| 4 | 1.00 | 30/0.2 | 0.7 | 1.1 | 13.3 | 233 |
