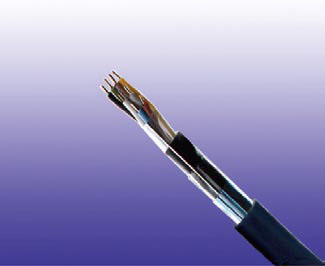

225V SR Insulated & LSZH Sheathed Fire Alarm Cables

JE-2G(St)H…Bd FE180 E30 (CU/SR/OSCR/LSZH 225V Class 1)

JE-2G(St)HSWAH…Bd FE180 E30 (CU/SR/OSCR/LSZH/SWA/LSZH 225V Class 1)

APPLICATION

The cables are used for the internal wiring of building when the circuit integrity during fire is paramount. The cables are intended for use in fire fighting plants with special ceramized silicone insulation, with and without aluminum foil and LSZH outer sheath.

The fire alarm cables with 30 to 90 minutes circuit integrity should be used for control voltages and data transfer in alarm and fire alarm systems, where a system circuit integrity E30/E60/E90 depending on lay system in accordance with DIN 4102-12 is required. The circuit integrity is guaranteed with a test voltage of 110V.

STANDARDS

  • Basic design to VDE 0815

FIRE PERFORMANCE

Circuit Integrity IEC 60331-23; BS 6387 CWZ; DIN VDE 0472-814(FE180); CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)
System circuit integrity DIN 4102-12, E30 depending on lay system
Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2);CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034-1&2; DIN VDE 0482-1034-1&2;CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard

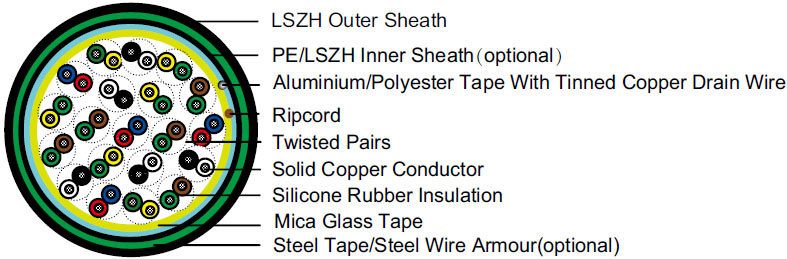

CABLE CONSTRUCTION

225V Fire Alarm Cables Fire Alarm Cables
Conductor Solid annealed bare or tinned copper sized 0.6/0.8/0.9mm as per class 1 of VDE 0295/IEC 60228
Insulation Silicone Rubber compound as per DIN VDE 0266
Cabling Elements Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two-pair cable had four cores laid in quad formation
Cabling Pairs are cabled together.In cables with 8 pairs or more, 4 pairs are assembled to form a bunch, and the bunches are then cabled together
Cable Core Assembly The twisted pairs are stranded to the core in layers
Core Wrapping One or more non hygroscopic polyester tapes are helically or longitudinally laid with an overlap prior to sheathing
Screen A laminated Aluminum/Polyester tape is placed in contact with solid copper 0.6mm or 0.8mm drain wire.
Inner Sheath (optional) PE or thermoplastic LSZH compound type
Armour (optional) Either corrugated steel tape armour or galvanized steel wire is applied over an inner polyethylene sheath. For steel tape armour, the 0.15mm thick steel tape is coated with a copolymer and applied with an overlap. For steel wire armour, single layer of galvanized steel wire armour is applied
Ripcord Nylon ripcord may be placed parallel to the cores to facilitate sheath removal
Drain Wire A solid tinned earth/continuity wire shall be laid longitudinally for screened cables
Outer Sheath Thermoplastic LSZH compound HM2 as per DIN VDE 0207-24. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option

VOLTAGE RATING

225V

COLOUR CODE

Insulation Colour Quad colour in each bundle
Pair 1 Blue-Red
Pair 2 Grey-Yellow
Pair 3 Green-Brown
Pair 4 White-Black
The individual bundles are identified by a numbered helix
Sheath Colour Black (other colours on request)

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation (fixed state) -30°C – +90°C
Temperature range during installation (mobile state) -20°C – +50°C
Minimum bending radius 8 x Overall Diameter (unarmoured cable)
  10 x Overall Diameter (armoured cables)

ELECTRICAL PROPERTIES

Conductor Diameter mm 0.6 0.8 0.9
Conductor Size mm2 0.283 0.5 0.636
Maximum Conductor Resistance @20°C Ω/km 63 34.6 28.0
Maximum Loop Resistance @20°C Ω/km 130 73.2 60
Minimum Insulation Resistance @500V DC @20°C MΩ.km 100 100 100
Maximum Average Attenuation @0.8KHz dB/km 1.7 1.2 0.74
Nominal Mutual Capacitance @0.8KHz nF/km 120 120 120
Maximum Capacitance Unbalance K1 @0.8KHz pair-to-pair pF/100m 200 200 200
Working Voltage V 225 225 225
Nominal Insulation Thickness mm 0.3 0.4 0.45
Nominal Insulated Conductor Diameter mm 1.2 1.6 1.8

CONSTRUCTION PARAMETERS

VDE CODE: JE-2G(St)H…x2x0.8 Bd FE180/E30

Cable Code No. of Pairs Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Approx. Weight
No. mm mm mm kg/km
0.8mm Conductor, 1.6mm Insulated Wire
JE-2G(St)H...1x2x0.8 Bd FE180/E30 1P0.8 1 0.4 1.0 6.0 46
JE-2G(St)H...2x2x0.8 Bd FE180/E30 2P0.8 2 0.4 1.0 6.6 61
JE-2G(St)H...4x2x0.8 Bd FE180/E30 4P0.8 4 0.4 1.0 8.8 104
JE-2G(St)H...6x2x0.8 Bd FE180/E30 6P0.8 6 0.4 1.0 10.8 160
JE-2G(St)H...8x2x0.8 Bd FE180/E30 8P0.8 8 0.4 1.0 12.8 218
JE-2G(St)H...10x2x0.8 Bd FE180/E30 10P0.8 10 0.4 1.2 13.1 220
JE-2G(St)H...12x2x0.8 Bd FE180/E30 12P0.8 12 0.4 1.2 13.5 235
JE-2G(St)H...16x2x0.8 Bd FE180/E30 16P0.8 16 0.4 1.2 14.7 297
JE-2G(St)H...20x2x0.8 Bd FE180/E30 20P0.8 20 0.4 1.2 16.1 367
JE-2G(St)H...24x2x0.8 Bd FE180/E30 24P0.8 24 0.4 1.4 18.1 440
JE-2G(St)H...30x2x0.8 Bd FE180/E30 30P0.8 30 0.4 1.4 20.1 645
JE-2G(St)H...32x2x0.8 Bd FE180/E30 32P0.8 32 0.4 1.4 20.6 645
JE-2G(St)H...40x2x0.8 Bd FE180/E30 40P0.8 40 0.4 1.4 22.5 656
JE-2G(St)H...50x2x0.8 Bd FE180/E30 50P0.8 50 0.4 1.6 24.3 840

VDE CODE: JE-2G(St)HSWAH…x2x0.6/0.8/0.9 Bd FE180/E30

Cable Code No. of Pairs Nominal Insulation Thickness Nominal Bedding/Sheath Thickness Nominal Overall Diameter Approx. Weight
mm mm mm kg/km
0.6mm Conductor,1.2mm Insulated Wire
JE-2G(St)HSWAH...2x2x0.6 Bd FE180/E30 2P0.6 2 0.3 1.0/1.8 12.1 305
JE-2G(St)HSWAH...3x2x0.6 Bd FE180/E30 3P0.6 3 0.3 1.0/1.8 12.6 325
JE-2G(St)HSWAH...6x2x0.6 Bd FE180/E30 6P0.6 6 0.3 1.0/1.8 12.6 380
JE-2G(St)HSWAH...8x2x0.6 Bd FE180/E30 8P0.6 8 0.3 1.0/1.8 14.6 415
JE-2G(St)HSWAH...10x2x0.6 Bd FE180/E30 10P0.6 10 0.3 1.0/1.8 16.5 450
JE-2G(St)HSWAH...12x2x0.6 Bd FE180/E30 12P0.6 12 0.3 1.0/1.8 17.0 500
JE-2G(St)HSWAH...20x2x0.6 Bd FE180/E30 20P0.6 20 0.3 1.0/1.8 20.5 580
JE-2G(St)HSWAH...25x2x0.6 Bd FE180/E30 25P0.6 25 0.3 1.0/1.8 21.5 940
JE-2G(St)HSWAH...30x2x0.6 Bd FE180/E30 30P0.6 30 0.3 1.0/1.8 22.5 1300
0.8mm Conductor, 1.6mm Insulated Wire
JE-2G(St)HSWAH...2x2x0.8 Bd FE180/E30 2P0.8 2 0.4 1.0/1.8 14.0 415
JE-2G(St)HSWAH...3x2x0.8 Bd FE180/E30 3P0.8 3 0.4 1.0/1.8 14.0 425
JE-2G(St)HSWAH...6x2x0.8 Bd FE180/E30 6P0.8 6 0.4 1.0/1.8 15.0 485
JE-2G(St)HSWAH...8x2x0.8 Bd FE180/E30 8P0.8 8 0.4 1.0/1.8 17.5 520
JE-2G(St)HSWAH...10x2x0.8 Bd FE180/E30 10P0.8 10 0.4 1.2/1.8 19.0 540
JE-2G(St)HSWAH...12x2x0.8 Bd FE180/E30 12P0.8 12 0.4 1.2/1.8 20.5 600
JE-2G(St)HSWAH...20x2x0.8 Bd FE180/E30 20P0.8 20 0.4 1.4/1.8 24.5 1050
JE-2G(St)HSWAH...25x2x0.8 Bd FE180/E30 25P0.8 25 0.4 1.4/1.8 27.0 1250
JE-2G(St)HSWAH...30x2x0.8 Bd FE180/E30 30P0.8 30 0.4 1.4/1.8 28.5 1450
0.9mm Conductor, 1.8mm Insulated Wire
JE-2G(St)HSWAH...10x2x0.9 Bd FE180/E30 10P0.8 10 0.45 1.2/1.8 19.7 600
JE-2G(St)HSWAH...15x2x0.9 Bd FE180/E30 15P0.8 15 0.45 1.2/1.8 23.0 1020
JE-2G(St)HSWAH...20x2x0.9 Bd FE180/E30 20P0.8 20 0.45 1.4/1.8 25.3 1160
JE-2G(St)HSWAH...25x2x0.9 Bd FE180/E30 25P0.8 25 0.45 1.4/1.8 27.3 1330
JE-2G(St)HSWAH...30x2x0.9 Bd FE180/E30 30P0.8 30 0.45 1.4/1.8 29.3 1520
