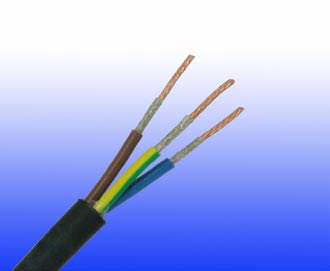

300/500V SR Insulated & Overall Screened Control Cables (Multipair)
FFX200 05SOZ1-U(PH30/60)(CU/SR/OSCR/LSZH 300/500V Class 1)
FFX200 05SOZ1-R(PH30/60)(CU/SR/OSCR/LSZH 300/500V Class 2)
APPLICATION
The cables are primarily intended for use in the following applications:
BS 5266-1 for emergency lighting of premises
BS 5839-1 for fire detection and fire alarm systems in and around building
BS 5839-8 for voice alarm systems
BS 5839-9 for emergency voice communication systems.
STANDARDS
- Basic design to BS 7629-1
FIRE PERFORMANCE
| Circuit Integrity |
IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180); BS 8434-1 (30mins); BS 5839-1 Clause 26 2d; CEI 20-36/2-1; SS229-1; NBN C 30-004(cat. F3); NF C32-070-2.3(CR1) |
| Circuit Integrity with mechanical shock |
EN 50200(PH30/60); CEI 20-36/4-0 |
| Circuit Integrity with mechanical shock & water spray |
EN 50200 annex E |
| System circuit integrity |
DIN 4102-12, E30 depending on lay system |
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation(Vertically-mounted bundled wire & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1* |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
450/750 V

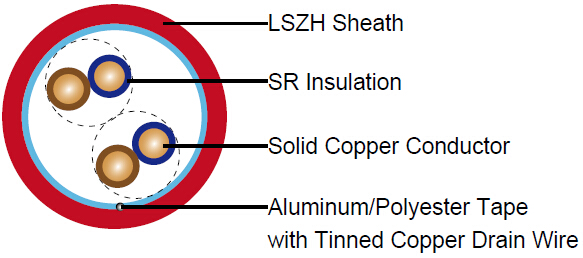

CABLE CONSTRUCTION
| Conductors |
Plain annealed copper wire, solid according to IEC 60228 class 1, stranded according to IEC 60228 class 2. |
| Insulation |
Fire resistant special ceramized silicone rubber compound type EI2 as per BS 7655-1.1 |
| Cabling |
The cores are cabled together in concentric layers with suitable non-hygroscopic fillers |
| Overall screen |
Aluminum/polyester tape with tinned copper drain wire |
| Circuit Protective Conductor or Drain Wire |
Uninsulated tinned copper conductor of the same section and class as the insulated conductors in the 2-, 3-and 4-core cables. Drain wire of 0.5mm2 tinned copper conductor is provided in cables of more than 4 conductors |
| Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |
COLOUR CODE
| Insulation colour as per BS 7629 |
|
| Sheath Colour |
Orange (other colours upon request) |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range during operation (fixed state) |
-30°C – +90°C |
| Temperature range during installation (mobile state) |
-20°C – +50°C |
| Minimum bending radius |
6 x Overall Diameter |
ELECTRICAL PROPERTIES
| Dielectric test |
2500 V r.m.s. x 5' (core/core) |
| Insulation resistance |
≥300 MΩ x km (at 20°C) |
| Short circuit temperature |
350°C |
CONSTRUCTION PARAMETERS
| Cable Code |
No. of Pairs X Cross Section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx.Weight |
| |
mm2 |
mm |
mm |
mm |
kg/km |
| 2 Pairs |
| FFX200 05SOZ1-U (PH30/60) 2P1.0 |
2x2x1.0 |
0.6 |
1.1 |
13.5 |
480 |
| FFX200 05SOZ1-U (PH30/60) 2P1.5 |
2x2x1.5 |
0.7 |
1.2 |
15.5 |
590 |
| FFX200 05SOZ1-R (PH30/60) 2P1.5 |
2x2x1.5 |
0.7 |
1.2 |
16.2 |
579 |
| FFX200 05SOZ1-R (PH30/60) 2P2.5 |
2x2x2.5 |
0.8 |
1.3 |
18.0 |
750 |
| 3 Pairs |
| FFX200 05SOZ1-U (PH30/60) 3P1.0 |
3x2x1.0 |
0.6 |
1.2 |
14.5 |
675 |
| FFX200 05SOZ1-U (PH30/60) 3P1.5 |
3x2x1.5 |
0.7 |
1.2 |
16.5 |
810 |
| FFX200 05SOZ1-R (PH30/60) 3P1.5 |
3x2x1.5 |
0.7 |
1.2 |
17.5 |
730 |
| FFX200 05SOZ1-R (PH30/60) 3P2.5 |
3x2x2.5 |
0.8 |
1.3 |
19.5 |
1045 |
ELECTRICAL PROPERTIES
| Conductor Operating Temperature |
90°C |
| Ambient Temperature |
30°C |
Current-Carrying Capacities (Amp)
| Conductor
cross-sectional
area |
Reference Method A
(enclosed in conduit in thermally
insulating wall etc) |
Reference Method B
(enclosed in conduit on a wall
or in trunking etc) |
Reference Method C
(clipped direct) |
Reference Method E
(in free air or on aperforated cable tray,
horizontal or vertical etc) Touching |
| 1 two-core cable*,
single-phase a.c. or d.c. |
1 three-or four corecable*,
three-phase a.c. |
1 two-core cable*,
single-phase a.c. or d.c. |
1 three-or four corecable*,
three-phase a.c. |
1 two-core cable*,
single-phase a.c. or d.c. |
1 three-or four corecable*,
three-phase a.c. |
1 two-core cable*,s
ingle-phase a.c. or d.c. |
1 three-or four corecable*,
three-phase a.c. |
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
| mm2 |
A |
A |
A |
A |
A |
A |
A |
A |
| 1.0 |
14.5 |
13 |
17 |
15 |
19 |
17 |
21 |
18 |
| 1.5 |
18.5 |
16.5 |
22 |
19.5 |
24 |
22 |
26 |
23 |
| 2.5 |
25 |
22 |
30 |
26 |
33 |
30 |
36 |
32 |
| 4 |
33 |
30 |
40 |
35 |
45 |
40 |
49 |
42 |
Voltage Drop (Per Amp Per Meter)
| Conductor cross-sectional area |
Two-core cables, d.c. |
Two-core cable, single-phase a.c. |
Three-or four core cable,three-phase a.c. |
| 1 |
2 |
3 |
4 |
| mm2 |
mV/A/m |
mV/A/m |
mV/A/m |
| 1.0 |
46 |
46 |
40 |
| 1.5 |
31 |
31 |
27 |
| 2.5 |
19 |
19 |
16 |
| 4 |
12 |
12 |
10 |
