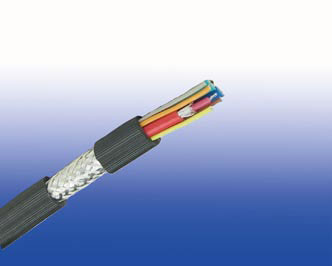

300/500V Braid-Screened Flexible Equipment Cables (Multipair)
LI-05SCH FE180(PH30)(CU/SR/CWB/LSZH 300/500V Class 5)
APPLICATION
The cables are designed for indoor instrumentation and control cabling,electrically noisy environments and fire alarm systems in office buildings.
STANDARDS
FIRE PERFORMANCE
| Circuit Integrity |
IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180);BS 8434-1(30mins); BS 5839-1 Clause 26 2d; CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat.F3); NF C32-070-2.3(CR1) |
| Circuit Integrity with mechanical shock |
EN 50200(PH30); CEI 20-36/4-0 |
| Circuit Integrity with mechanical shock & water spray |
EN 50200 annex E |
| System circuit integrity |
DIN 4102-12, E30 depending on lay system |
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1* |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2; BS 6425-2* |
| Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard

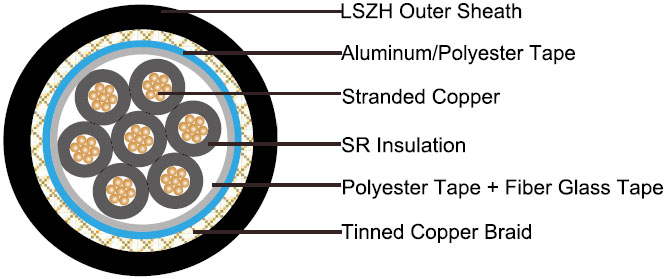

CABLE CONSTRUCTION
| Conductor |
Plain annealed copper wire, stranded according to IEC 60228 class 5. |
| Insulation |
Fire resistant special ceramized silicone rubber compound type EI2 as per BS 7655-1.1. |
| Cabling |
The insulated cores are cabled in concentric layers with suitable non-hygroscopic fillers. |
| Fire Barrier |
Polyester tape + fiber glass tape |
| Overall Screen |
Aluminum/polyester tape with tinned copper braid (min. 85% Coverage) |
| Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. |
VOLTAGE RATING
300/500 V
COLOUR CODE
| Insulation Colour as Per VDE 0812 |
| Sheath Colour |
Orange (other colours on request) |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range during operation (fixed state) |
-30°C – +90°C |
| Temperature range during installation (mobile state) |
-20°C – +50°C |
| Minimum bending radius |
7.5 x Overall Diameter |
ELECTRICAL PROPERTIES
| Dielectric test |
2000 V r.m.s. x 5' (core/core) |
| Insulation resistance @20°C |
≥300 MΩ x km |
| Short circuit temperature |
350°C |
CONSTRUCTION PARAMETERS
| Cable Code |
No. of Core X Cross Section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
| |
mm2 |
mm |
mm |
mm |
kg/km |
| 2 Cores |
| LI-05SCH FE180 (PH30) 2G0.75 |
2x0.75 |
0.6 |
0.8 |
6.3 |
55 |
| LI-05SCH FE180 (PH30) 2G1.0 |
2x1.0 |
0.6 |
0.9 |
6.9 |
62 |
| LI-05SCH FE180 (PH30) 2G1.5 |
2x1.5 |
0.7 |
0.9 |
7.3 |
79 |
| 3 Cores |
| LI-05SCH FE180 (PH30) 3G0.75 |
3x0.75 |
0.6 |
0.8 |
6.6 |
67 |
| LI-05SCH FE180 (PH30) 3G1.0 |
3x1.0 |
0.6 |
0.9 |
7.2 |
77 |
| LI-05SCH FE180 (PH30) 3G1.5 |
3x1.5 |
0.7 |
0.9 |
7.6 |
101 |
| 4 Cores |
| LI-05SCH FE180 (PH30) 4G0.75 |
4x0.75 |
0.6 |
0.9 |
7.2 |
85 |
| LI-05SCH FE180 (PH30) 4G1.0 |
4x1.0 |
0.6 |
1.0 |
7.7 |
98 |
| LI-05SCH FE180 (PH30) 4G1.5 |
4x1.5 |
0.7 |
1.0 |
8.2 |
112 |
| 5 Cores |
| LI-05SCH FE180 (PH30) 5G0.75 |
5x0.75 |
0.6 |
0.9 |
7.9 |
105 |
| LI-05SCH FE180 (PH30) 5G1.0 |
5x1.0 |
0.6 |
1.0 |
7.9 |
117 |
| LI-05SCH FE180 (PH30) 5G1.5 |
5x1.5 |
0.7 |
1.0 |
9.0 |
127 |
| 6 Cores |
| LI-05SCH FE180 (PH30) 6G0.75 |
6x0.75 |
0.6 |
0.9 |
8.6 |
121 |
| LI-05SCH FE180 (PH30) 6G1.0 |
6x1.0 |
0.6 |
1.0 |
9.1 |
138 |
| LI-05SCH FE180 (PH30) 6G1.5 |
6x1.5 |
0.7 |
1.0 |
10.0 |
161 |
| 7 Cores |
| LI-05SCH FE180 (PH30) 7G0.75 |
7x0.75 |
0.6 |
0.9 |
8.6 |
131 |
| LI-05SCH FE180 (PH30) 7G1.0 |
7x1.0 |
0.6 |
1.0 |
9.1 |
152 |
| LI-05SCH FE180 (PH30) 7G1.5 |
7x1.5 |
0.7 |
1.1 |
10.0 |
193 |
