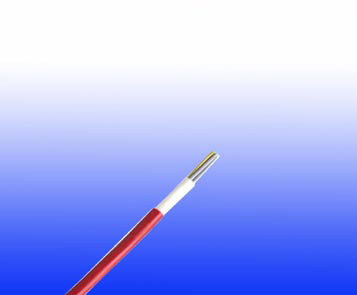

Fire Resistant UTP CAT 5 Data Cables

CAT5UTP4P23FR

APPLICATION

The cables are desgined for structure wiring, compatible with all known connection systems according to EN 50173. Based on the design for structured wiring (found in IEC 61156 and BS EN 50288), this cable brings together high frequency data transmission and circuit integrity in four pair cable that will continue to transmit data even when being directly attacked by fire.

STANDARDS

  • Basic design to EN50173

FIRE PERFORMANCE

Circuit Integrity IEC 60331-23
Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034-1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING

110V

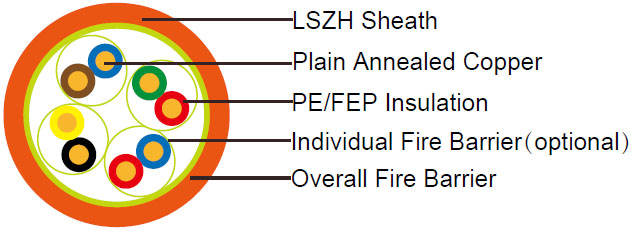

CABLE CONSTRUCTION

Fire Resistant UTP CAT 5 Data Cables UTP CAT 5 Data Cables
Conductors Plain annealed copper wire, solid according to IEC 60228 class 1
Insulation PE or fluoropolymer(FEP) compound
Fire Barrier Fire resistance tape wrapped around the individual pairs or core assembly
Twisted Pairs Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk
Cabling Elements Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two-pair cable had four cores laid in quad formation
Cabling Pairs are cabled together in concentric layers
Sheath Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation (fixed state) -5°C - +50°C
Temperature range during installation (mobile state) -20°C - +90°C
Minimum bending radius 8 x Overall Diameter

ELECTRICAL PROPERTIES

Characteristic Impedance 100±15Ω
Nominal Velocity of Propagation (NVP) 69%
Max. DC Resistance 7.5 Ω/100M
Max. Resistance Unbalance 5%
Max. Mutual Capacitance 5.6 NF/100M
Maximum Capacitance Unbalance 330 PF/100M
Max. Propagation Delay Skew 30 NS/100M
Max. Propagation Delay 536 NS/100M@100MHZ
Max. Pulling Load 80 N

TRANSMISSION PROPERTIES

FREQ NEXT Minimum Value/Typical Value/Standard Value IL SRL Minimum Value/Typical Value/Standard Value
MHz dB/100m dB/100m dB/100m
1 64.0/71.0/62.0 2.0 24.5/26.0/23.0
4 55.0/62.0/53.0 4.0 24.5/26.0/23.0
8 49.5/57.0/48.0 5.7 24.5/26.0/23.0
10 49.0/56.0/47.0 6.4 24.5/26.0/23.0
16 44.9/52.0/44.0 8.2 24.5/26.0/23.0
20 42.5/48.0/42.0 9.2 24.5/26.0/23.0
25 42.0/48.0/41.0 10.3 24.5/26.0/23.0
31.25 40.6/48.0/39.0 11.6 22.5/24.0/21.0
62.5 36.1/43.0/35.0 16.9 19.5/22.0/18.0
100 34.0/40.0/32.0 21.8 17.5/20.0/16.0

CONSTRUCTION PARAMETERS

Cable Code Conductor Diameter Nominal Insulation Thickness Nominal Overall Diameter Approx. Weight
mm mm mm kg/km
CAT5UTP4P23FR 0.58 0.4 6.5±1.0 68
