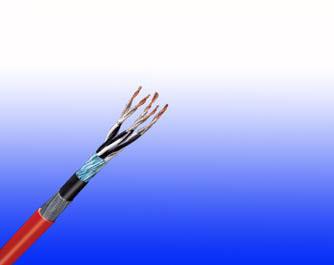

300/500V Mica+XLPE/SR Insulated Individual And Overall Screened Instrumentation Cables

RE-2X(St)H PiMF...CI. FE 180 PH30( CU/MGT+XLPE/PSCR/OSCR/LSZH 300/500V Class 2 )

RE-2G(St)H PiMF...CI. FE 180 PH 30( CU/SR/PSCR/OSCR/LSZH 300/500V Class 2 )

RE-2X(St)HSWAH PiMF..CI. FE 180 PH 30 (CU/MGT+XLPE/PSCR/OSCR/LSZH/SWA/LSZH 300/500V Class 2 )

RE-2G(St)HSWAH PiMF...CI. FE 180 PH 30 ( CU/SR/PSCR/OSCR/LSZH/SWA/LSZH 300/500V Class 2 )

APPLICATION

The cables are designed, manufactured and tested as data transmission cables for emergency services. These are used for data and voice transmission when high frequency signal has to be assured also in the event of a fire.

STANDARDS

  • Basic design to BS 5308/BS 7629-1

FIRE PERFORMANCE

Circuit Integrity IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180); BS 8434-1 (30mins); BS 5839-1 Clause 26 2d; CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)
Circuit Integrity with mechanical shock EN 50200(PH30); CEI 20-36/4-0
Circuit Integrity with mechanical shock & water spray EN 50200 annex E
System circuit integrity DIN 4102-12, E30 depending on lay system
Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat.F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

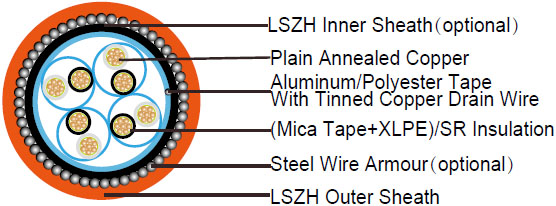

CABLE CONSTRUCTION

300/500V Instrumentation Cables Fire Resistant Instrumentation Cables
Insulation Mica glass tape covered by extruded XLPE compound or fire resistant special ceramized silicone rubber compound type EI2 as per BS 7655-1.1
Cabling Elements Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two-pair cable had four cores laid in quad formation
Cabling Pairs are cabled together. In cables with 8 pairs or more, 4 pairs are assembled to form a bunch, the bunches are then cabled together
Individual Screen Aluminum/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire
Overall screen Aluminum/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire
Inner Sheath(optional) Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 Armouring(optional): Galvanized steel wire armour
Outer Sheath Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1( Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option

VOLTAGE RATING

300/500 V

COLOUR CODE

Insulation Colour White with black numberings
Sheath Colour Orange (other colours on request)

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation -30°C – +70°C (fixed state)
Temperature range during installation -20°C – +50°C (mobile state)
Minimum bending radius 6 x Overall Diameter (unarmoured cables with SR insulation)
  8 x Overall Diameter (unarmoured cables with XLPE insulation)
  10 x Overall Diameter (armoured cables)

ELECTRICAL PROPERTIES

Dielectric test 2000 V r.m.s. x 5' (core/core)
Insulation resistance@ 20°C ≥1000 MΩ x km
Short circuit temperature XLPE: 250°C SR: 350°C

CONSTRUCTION PARAMETERS

Conductor RE-2X(St)H PiMF...CI. FE 180 PH30 RE-2G(St)H PiMF...CI. FE 180 PH30 RE-2X(St)HSWAH PiMF..CI. FE 180 PH30RE-2G(St)HSWAH PiMF..CI. FE 180 PH30
No. of Pairs X Cross Section No./Nominal Diameter of Strands Nominal Insulation Thickness Unarmoured Armoured
Nominal Overall Diameter Approx. Weight Armour Wire Diameter Diameter Over Armour Nominal Overall Diameter Approx. Weight
mm2 no./mm mm mm kg/km mm mm mm kg/km
2 Pairs
2X2x0.5 1/0.8 0.5 9.3 150 0.90 11.1 13.9 380
2X2x1.0 1/1.13 0.6 11.8 166 0.90 13.6 16.6 555
2X2x1.5 7/0.53 0.6 13.7 205 1.25 16.2 19.4 769
2X2x2.5 7/0.67 0.7 19.2 350 1.25 19.2 24.9 938
5 Pairs
5X2x0.5 1/0.8 0.5 12.5 250 1.25 15.0 18.0 640
5X2x1.0 1/1.13 0.6 15.2 335 1.25 17.7 20.9 1000
5X2x1.5 7/0.53 0.6 17.8 433 1.60 21.0 24.4 1352
5X2x2.5 7/0.67 0.7 24.0 592 1.60 24.0 30.8 1665
10 Pairs
10X2x0.5 1/0.8 0.5 17.3 380 1.25 19.8 23.2 890
10X2x1.0 1/1.13 0.6 21.6 626 1.60 24.8 28.4 1800
10X2x1.5 7/0.53 0.6 25.5 811 1.60 28.7 32.5 2165
10X2x2.5 7/0.67 0.7 31.5 1132 2.00 31.5 39.5 3007
15 Pairs
15X2x0.5 1/0.8 0.5 20.1 490 1.60 23.3 26.7 1350
15X2x1.0 1/1.13 0.6 25.2 780 1.60 28.4 32.2 1680
15X2x1.5 7/0.53 0.6 29.8 1020 2.0 33.0 37.8 2350
15X2x2.5 7/0.67 0.7 36.7 1490 2.5 38.5 45.9 3380
20 Pairs
20X2x0.5 1/0.8 0.5 22.5 640 1.60 25.7 29.3 1470
20X2x1.0 1/1.13 0.6 28.8 1143 2.0 32.8 36.8 2540
20X2x1.5 7/0.53 0.6 33.4 1509 2.0 37.4 41.6 3030
20X2x2.5 7/0.67 0.7 42.5 2112 2.5 42.5 51.9 5107
30 Pairs
30X2x0.5 1/0.8 0.5 26.9 970 2.0 38.4 42.8 1870
30X2x1.0 1/1.13 0.6 34.4 1430 2.0 31.2 35.2 2900
30X2x1.5 7/0.53 0.6 40.0 1900 2.5 45.0 49.8 4050
30X2x2.5 7/0.67 0.7 50.6 2600 2.5 51.8 60.5 6400
50 Pairs
50X2x0.5 1/0.8 0.5 35.1 1470 2.0 39.1 43.5 3000
50X2x1.0 1/1.13 0.6 43.9 2360 2.5 48.9 53.9 4800
50X2x1.5 7/0.53 0.6 51.2 3060 2.5 56.2 61.6 5960
50X2x2.5 7/0.67 0.7 63.5 3950 2.5 68.0 74.5 8390

Note : Other conductor sizes & core configurations are available upon request.
