300/500V Mica+XLPE/SR Insulated & Overall Screened Multipair Instrumentation Cables
RE-2X(St)H...CI. FE 180 PH30( CU/MGT+XLPE/OSCR/LSZH 300/500V Class 2)
RE-2G(St)H...CI. FE 180 PH30( CU/SR/OSCR/LSZH 300/500V Class 2 )
RE-2X(St)HSWAH...CI. FE 180 PH30 ( CU/MGT+XLPE/OSCR/LSZH/SWA/LSZH 300/500V Class 2 )
RE-2G(St)HSWAH...CI. FE 180 PH30( CU/SR/OSCR/LSZH/SWA/LSZH 300/500V Class 2 )
APPLICATION
The cables are designed, manufactured and tested as data transmission cables for emergency services. These are used for data and voice transmission when high frequency signal has to be assured also in the event of a fire.
STANDARDS
- Basic design tS 5308/BS 7629-1
FIRE PERFORMANCE
| Circuit Integrity | IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180); BS 8434-1 (30mins); BS 5839-1 Clause 26 2d; CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1) |
| Circuit Integrity with mechanical shock | EN 50200(PH30); CEI 20-36/4-0 |
| Circuit Integrity with mechanical shock & water spray | EN 50200 annex E |
| System circuit integrity | DIN 4102-12, E30 depending on lay system |
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.

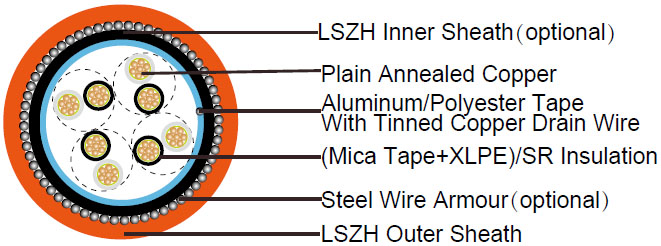

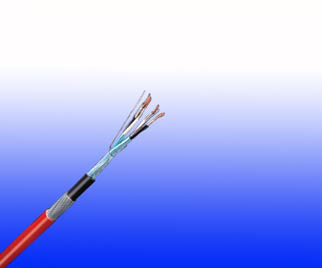

CABLE CONSTRUCTION
 |
 |
| Conductor | Plain annealed copper wire, stranded according to IEC 60228 class 1 or class 2 |
| Insulation | Mica glass tape covered by extruded XLPE compound or fire resistant special ceramized silicone rubber compound type EI2 as per BS 7655-1.1 |
| Cabling Elements | Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two-pair cable had four cores laid in quad formation |
| Cabling | Pairs are cabled together. In cables with 8 pairs or more, 4 pairs are assembled to form a bunch, the bunches are then cabled together |
| Overall screen | Aluminum/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire |
| Inner Sheath(optional) | Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 Armouring(optional): Galvanized steel wire armour |
| Outer Sheath | Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1(Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. |
VOLTAGE RATING
300/500 V
COLOUR CODE
| Insulation Colour | White with black numberings |
| Sheath Colour | Orange(other colours upon request) |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range during operation | -30°C – +90°C (fixed state) |
| Temperature range during installation | -20°C – +50°C (mobile state) |
| Minimum bending radius | 6 x Overall Diameter (unarmoured cables with silicone rubber insulation) |
| 8 x Overall Diameter (unarmoured cables with XLPE insulation) | |
| 10 x Overall Diameter (armoured cables) |
ELECTRICAL PROPERTIES
| Dielectric test | 2000 V r.m.s. x 5' (core/core) |
| Insulation resistance@ 20°C | XLPE: ≥1000 MΩ x km SR: ≥300 MΩ x km |
| Short circuit temperature | XLPE: 250°C SR: 350°C |
CONSTRUCTION PARAMETERS
| Conductor | RE-2X(St)H...CI. FE 180 PH30 RE-2G(St)H...CI. FE 180 PH30 |
RE-2X(St)HSWAH...CI. FE 180 PH30 RE-2G(St)HSWAH...CI. FE 180 PH30 |
||||||
|---|---|---|---|---|---|---|---|---|
| No. of Pairs X Cross Section | No./Nominal Diameter of Strands | Nominal Insulation Thickness | Unarmoured | Armoured | ||||
| Nominal Overall Diameter | Approx. Weight | Armour Wire Diameter | Diameter Over Armour | Nominal Overall Diameter | Approx. Weight | |||
| mm2 | no./mm | mm | mm | kg/km | mm | mm | mm | kg/km |
| 1 Pair | ||||||||
| 1X2x0.5 | 1/0.8 | 0.5 | 5.3 | 50 | 0.90 | 7.1 | 9.7 | 200 |
| 1X2x1.0 | 1/1.13 | 0.6 | 6.4 | 76 | 0.90 | 8.2 | 10.8 | 281 |
| 1X2x1.5 | 7/0.53 | 0.6 | 7.3 | 94 | 0.90 | 9.1 | 11.9 | 332 |
| 1X2x2.5 | 7/0.67 | 0.7 | 10.5 | 130 | 0.90 | 13.2 | 15.1 | 401 |
| 2 Pairs | ||||||||
| 2X2x0.5 | 1/0.8 | 0.5 | 6.1 | 75 | 0.90 | 7.9 | 10.5 | 260 |
| 2X2x1.0 | 1/1.13 | 0.6 | 7.4 | 120 | 0.90 | 9.2 | 12.0 | 370 |
| 2X2x1.5 | 7/0.53 | 0.6 | 8.7 | 160 | 0.90 | 10.5 | 13.3 | 450 |
| 2X2x2.5 | 7/0.67 | 0.7 | 16.0 | 230 | 0.90 | 16.0 | 20.5 | 550 |
| 5 Pairs | ||||||||
| 5X2x0.5 | 1/0.8 | 0.5 | 10.6 | 200 | 0.90 | 12.4 | 15.2 | 460 |
| 5X2x1.0 | 1/1.13 | 0.6 | 13.2 | 276 | 1.25 | 15.7 | 18.7 | 854 |
| 5X2x1.5 | 7/0.53 | 0.6 | 15.4 | 368 | 1.25 | 17.9 | 21.1 | 1023 |
| 5X2x2.5 | 7/0.67 | 0.7 | 23.0 | 518 | 1.25 | 23.8 | 28.9 | 1276 |
| 10 Pairs | ||||||||
| 10X2x0.5 | 1/0.8 | 0.5 | 14.0 | 270 | 1.25 | 16.5 | 19.7 | 790 |
| 10X2x1.0 | 1/1.13 | 0.6 | 17.4 | 501 | 1.25 | 19.9 | 23.3 | 1271 |
| 10X2x1.5 | 7/0.53 | 0.6 | 20.6 | 673 | 1.60 | 23.8 | 27.4 | 1742 |
| 10X2x2.5 | 7/0.67 | 0.7 | 29.5 | 971 | 1.60 | 30.2 | 36.5 | 2205 |
| 15 Pairs | ||||||||
| 15X2x0.5 | 1/0.8 | 0.5 | 16.1 | 370 | 1.25 | 18.6 | 21.8 | 1100 |
| 15X2x1.0 | 1/1.13 | 0.6 | 20.3 | 670 | 1.60 | 23.5 | 27.1 | 1740 |
| 15X2x1.5 | 7/0.53 | 0.6 | 24.2 | 880 | 1.60 | 27.4 | 31.2 | 1970 |
| 15X2x2.5 | 7/0.67 | 0.7 | 32.4 | 1020 | 2.0 | 33.5 | 39.5 | 2370 |
| 20 Pairs | ||||||||
| 20X2x0.5 | 1/0.8 | 0.5 | 18.4 | 440 | 1.25 | 21.6 | 25.0 | 1280 |
| 20X2x1.0 | 1/1.13 | 0.6 | 23.4 | 917 | 1.60 | 26.6 | 30.2 | 2040 |
| 20X2x1.5 | 7/0.53 | 0.6 | 27.5 | 1258 | 2.0 | 31.5 | 35.5 | 2705 |
| 20X2x2.5 | 7/0.67 | 0.7 | 38.5 | 1830 | 2.0 | 36.8 | 46.7 | 3836 |
| 30 Pairs | ||||||||
| 30X2x0.5 | 1/0.8 | 0.5 | 22.0 | 630 | 1.60 | 25.2 | 28.8 | 1520 |
| 30X2x1.0 | 1/1.13 | 0.6 | 28.0 | 1030 | 1.6 | 31.2 | 35.2 | 2680 |
| 30X2x1.5 | 7/0.53 | 0.6 | 33.3 | 1560 | 2.0 | 37.3 | 41.5 | 3170 |
| 30X2x2.5 | 7/0.67 | 0.7 | 49.7 | 1980 | 2.5 | 46.3 | 49.7 | 4250 |
| 50 Pairs | ||||||||
| 50X2x0.5 | 1/0.8 | 0.5 | 27.9 | 980 | 1.60 | 31.1 | 35.9 | 2100 |
| 50X2x1.0 | 1/1.13 | 0.6 | 36.3 | 1750 | 2.0 | 40.3 | 44.7 | 3500 |
| 50X2x1.5 | 7/0.53 | 0.6 | 42.6 | 2400 | 2.5 | 47.6 | 52.4 | 5020 |
| 50X2x2.5 | 7/0.67 | 0.7 | 60.4 | 3240 | 2.5 | 57.2 | 68.6 | 5870 |
