Flame Retardant CAT6 CWB/SWB/SWA Armoured Data Cables>
FGD-CAT6 U/UTP4P23 CWB/SWB/SWA
FGD-CAT6 F/UTP4P23 CWB/SWB/SWA
FGD-CAT6 SF/UTP4P23 CWB/SWB/SWA
APPLICATION
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
STANDARDS
- Basic design adapted to EN50173
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** |
EN 60332-3-22 (cat. A); IEC 60332-3-22; BS EN 60332-3-22; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.
VOLTAGE RATING
60V

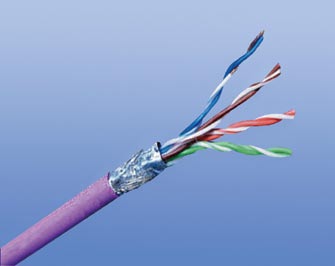

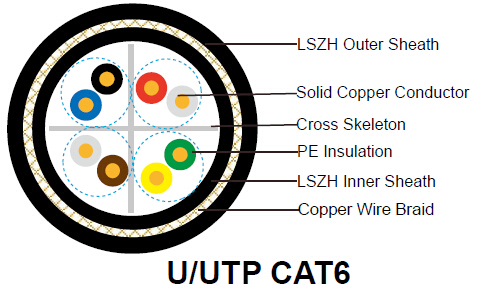

CABLE CONSTRUCTION
| Conductors |
23 AWG solid bare copper |
| Insulation |
HDPE |
| Twinning |
Two coloured insulated conductors twisted together to form a pair |
| Inner Sheath |
Flame retardant, low smoke and halogen-free polyolefin, coloured black |
| Armouring |
CWB: Copper Wire Braid
SWB : Steel Wire Braid
SWA: Steel Wire Armour |
| Outer Sheath |
Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request |

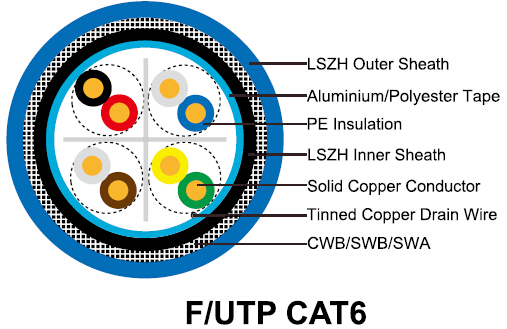

| Cat6 F/UTP |
These cables have collective shielding of aluminium/Polyester tape with drain wire |

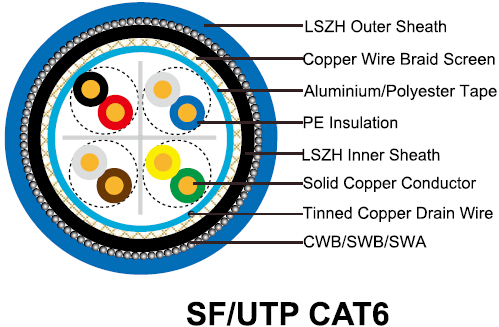

| Cat6 SF/UTP |
These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid with drain wire |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range |
-30°C – +75°C |
| Minimum bending radius during installation (mobile state) |
8 x Overall Diameter |
| Minimum bending radius during operation (fixed state) |
4 x Overall Diameter |
ELECTRICAL PROPERTIES
| AWG |
|
23 |
| Nominal Conductor Diameter |
mm |
0.56/0.57/0.58 |
| Maximum DC Resistant@20°C |
Ω/100m |
9.38 |
| Maximum DCR Unbalance |
% |
3 |
| Maximum Mutual Capacitance |
pF/m |
5.8 |
| Maximum Capacitance Unbalance |
pF/100m |
30 |
| Characteristic Impedance@1-100MHz |
Ω |
100+/-15 |
| Maximum Propagation Delay Skew |
ns/100m |
18 |
TRANSMISSION PROPERTIES
| FREQ |
Maximum Attenuation |
Minimum NEXT |
Minimum PSNEXT |
Minimum ELFEXT |
Minimum PSELFEXT |
MinimumRL |
| MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB |
| 0.772 |
1.8 |
76.0 |
74. |
70.0 |
67.0 |
— |
| 1 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
20.0 |
| 4 |
3.8 |
65.3 |
63.3 |
55.7 |
52.7 |
23.0 |
| 8 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
24.5 |
| 10 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
25.0 |
| 16 |
7.6 |
56.3 |
54.3 |
43.7 |
40.7 |
25.0 |
| 20 |
8.5 |
54.8 |
52.8 |
41.7 |
38.7 |
25.0 |
| 25 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
24.3 |
| 31.25 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
23.6 |
| 62.5 |
15.4 |
47.4 |
45.4 |
31.8 |
28.8 |
21.5 |
| 100 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
20.1 |
| 155 |
25.2 |
41.5 |
39.5 |
23.9 |
20.9 |
18.8 |
| 200 |
29.0 |
39.8 |
37.8 |
21.7 |
18.7 |
18.0 |
| 200 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
17.3 |
CONSTRUCTION PARAMETERS
| Cable Code |
Construction
No. of elements×
No. of cores in element×
Conductor diameter |
Nominal Insulation Thickness |
Nominal Inner Sheath Thickness |
Nominal Outer Sheath Thickness |
Nominal Overall Diameter |
Nominal
Weight |
| |
mm |
mm |
mm |
mm |
mm |
kg/km |
| FGD-CAT6 U/UTP CWB |
4×2×0.56/0.57 |
0.2 |
0.6 |
1.0 |
7.88 |
115 |
| FGD-CAT6 U/UTP SWB |
4×2×0.56/0.57 |
0.2 |
0.6 |
1.0 |
7.88 |
109 |
| FGD-CAT6 U/UTP SWA |
4×2×0.56/0.57 |
0.2 |
0.6 |
1.0 |
8.88 |
189 |
| FGD-CAT6 F/UTP CWB |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
8.48 |
126 |
| FGD-CAT6 F/UTP SWB |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
8.48 |
132 |
| FGD-CAT6 F/UTP SWA |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
9.48 |
213 |
| FGD-CAT6 SF/UTP CWB |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
8.96 |
154 |
| FGD-CAT6 SF/UTP SWB |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
8.96 |
148 |
| FGD-CAT6 SF/UTP SWA |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
9.96 |
242 |
