Flame Retardant Multi Loose Tube Fiber Optic Cables
APPLICATION
The multi loose tube non metallic cables are designed for outside plant, which is prone to electrical interference. They are mainly installed inside buildings, tunnels,subways or closed areas in general, specially designed to guarantee the signal transmission even in case of fire. The cable can also be used for direct burial for armoured version.
STANDARDS
- Basic design adapted to Telcordia GR-20/RUS 7 CFR 1755.900 (REA PE-90)/ICEA S 87-640
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** |
EN 60332-3-22 (cat. A); IEC 60332-3-22; BS EN 60332-3-22; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.
CABLE CONSTRUCTION
| Fibers |
Singlemode and multimode fibers, with loose tube technology |
| Structure |
The cable consists of 5 to 36 fibers containing tubes or fillers stranded in up to 3 layers around a central strength member and bound under a PVC sheath. Each tube contains 4 -12 fibers, which is filled with water blocking gel |
| Central Strength Member |
Solid or stranded steel wire coated with polyethylene is usually used as central strength member. Fiber glass reinforced plastics (FRP) will be used as central strength member if non metallic construction is required |
| Water blocking |
The jelly filled tube is waterblocked by using swellable tape and thread |
| Reinforcement |
Either aramid yarn or fiber glass is wound around the tube to provide physical protection and tensile strength, with added fire protection |
| Inner sheath (optional) |
The cable can be jacketed with either PE or Thermoplastic PVC inner sheath. PE is the preferred option in outdoor environment for water protection purpose |
| Moisture Barrier Tape (optional) |
An aluminum moisture tape can be incorporated under the sheath for water blocking and shielding purpose |
| Armouring(optional) |
For diect burial, either galvanized steel wire braid, corrugated steel tape armour or galvanized steel wire armour is applied over an inner polyethylene or PVC sheath. For steel tape armour, the 0.15mm thick steel tape is coated with a copolymer and applied with an overlap. For steel wire braid or armour, single layer of galvanized steel wire braid or armour is applied
|
| Ripcord (optional) |
An optional ripcord can be located under the jacket to facilitate jacket removal.Outer Sheath
|
| Outer Sheath |
Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request |
FIBER COLOR CODE
| Fiber colour code |
1 |
Red |
7 |
Brown |
| |
2 |
Green |
8 |
Violet |
| |
3 |
Blue |
9 |
Turquoise |
| |
4 |
Yellow |
10 |
Black |
| |
5 |
White |
11 |
Orange |
| |
6 |
Grey |
12 |
Pink |
CONSTRUCTION

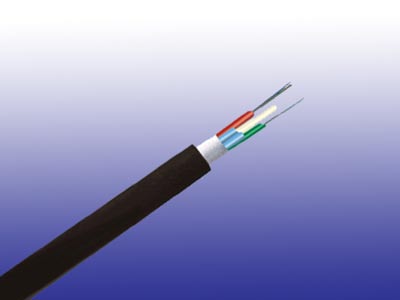

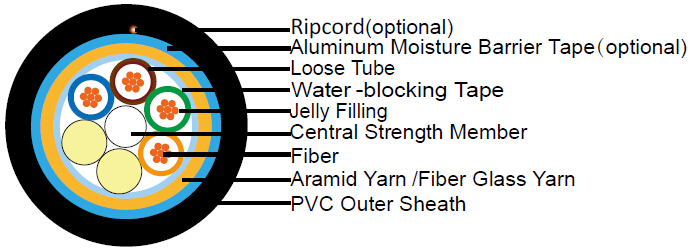

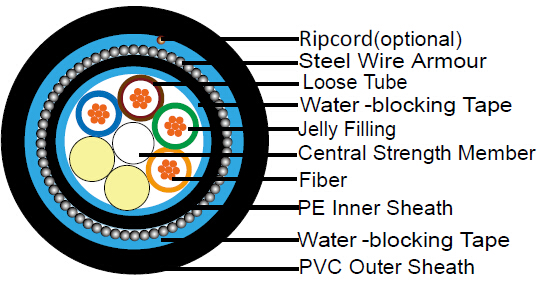

Unarmoured Type
CONSTRUCTION PARAMETERS
| Cable Code |
Fiber
Count |
Tube
Diameter |
Nominal Overall Diameter |
Approx. Weight |
Tension load |
Crush |
| |
(n°) |
mm |
mm |
kg/km |
N |
N/100mm |
| MLA-B-C×D-F-Y-J |
72 |
2.5 |
15.0 |
230 |
4000 |
3000 |
| MLA-B-C×D-F-Y-J |
96 |
2.5 |
16.5 |
250 |
4000 |
3000 |
| MLA-B-C×D-F-Y-J |
144 |
2.5 |
20.5 |
280 |
4000 |
3000 |

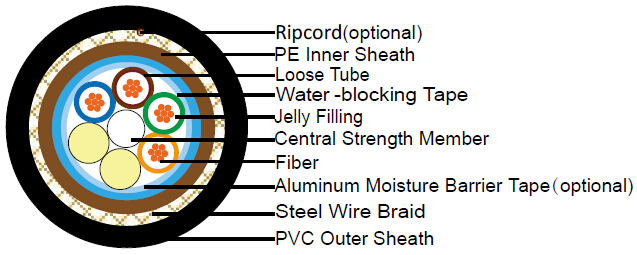

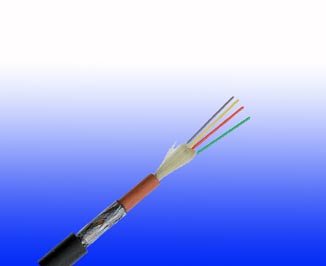

Steel Wire Braid
CONSTRUCTION PARAMETERS
| Cable Code |
Fiber Count |
Tube Diameter |
Nominal Overall Diameter |
Approx.Weight |
Tension load |
Crush |
| |
(n°) |
mm |
mm |
kg/km |
N |
N/100mm |
| MLA-B-C×D-F-2Y(SWB)Y-J |
72 |
2.5 |
15.0 |
280 |
3000 |
3500 |
| MLA-B-C×D-F-2Y(SWB)Y-J |
96 |
2.5 |
17.5 |
310 |
3000 |
3500 |
| MLA-B-C×D-F-2Y(SWB)Y-J |
144 |
2.5 |
21.5 |
350 |
3500 |
3500 |

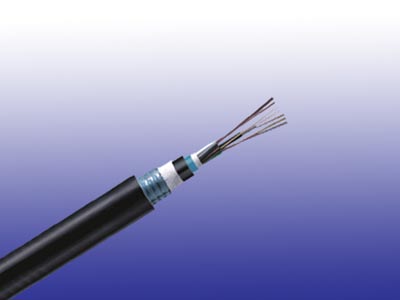

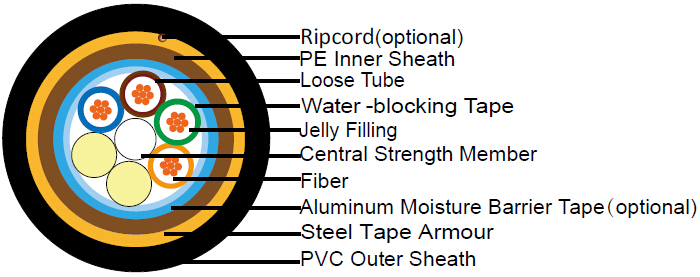

Corrugated Steel Tape Armour
CONSTRUCTION PARAMETERS
| Cable Code |
Fiber Count |
Tube Diameter |
Nominal
Overall Diameter |
Approx.Weight |
Tension load |
Crush |
| |
(n°) |
mm |
mm |
kg/km |
N |
N/100mm |
| MLA-B-C×D-F-2Y(STA)Y-J |
72 |
2.5 |
16.5 |
290 |
3000 |
7500 |
| MLA-B-C×D-F-2Y(STA)Y-J |
96 |
2.5 |
18.5 |
350 |
3000 |
7500 |
| MLA-B-C×D-F-2Y(STA)Y-J |
144 |
2.5 |
22.5 |
450 |
3500 |
7500 |

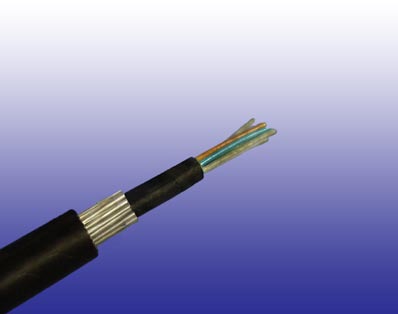

Steel Wire Armour
CONSTRUCTION PARAMETERS
| Cable Code |
Fiber Count |
Tube Diameter |
Nominal Overall Diameter |
Approx.Weight |
Tension load |
Crush |
| |
(n°) |
mm |
mm |
kg/km |
N |
N/100mm |
| MLA-B-C×D-F-2Y(SWA)Y-J |
72 |
2.0 |
15.0 |
360 |
3500 |
5000 |
| MLA-B-C×D-F-2Y(SWA)Y-J |
96 |
2.0 |
16.5 |
390 |
4000 |
5000 |
| MLA-B-C×D-F-2Y(SWA)Y-J |
144 |
2.0 |
18.5 |
430 |
4500 |
5000 |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range during operation (fixed state) |
-20°C - +60°C |
| Temperature range during installation (mobile state) |
0°C - +50°C |
| Minimum Operation Bending Radius |
10 times the outer diameter for unarmoured cables;
20 times the outer diameter for armoured cables |
| Minimum Installation Bending Radius |
20 times the outer diameter |
MERCHANICAL PROPERTIES
| Maximum Compressive Load: |
4000N for unarmoured cables 6000N for armoured cables |
| Repeated Impact |
4.4 N.m (J) |
| Twist (Torsion) |
180×10 times, 125×OD |
| Cyclic Flexing |
25 cycles for armoured cables 100 cycles for unarmoured cables |
| Crush Resistance |
220N/cm(125lb/in) |
FIBER COMPLIANCE
| Temperature Cycling |
IEC60794-1-2-F2 |
| Tensile Strength |
IEC60794-1-2-E1A |
| Crush |
IEC60794-1-2-E3 |
| Impact |
IEC60794-1-2-E4 |
| Repeated Bending |
IEC60794-1-2-E6 |
| Torsion |
IEC60794-1-2-E7 |
| Kink |
IEC60794-1-2-E10 |
| Cable Bend |
IEC60794-1-2-E11 |
| Cool Bend |
IEC60794-1-2-E11 |
