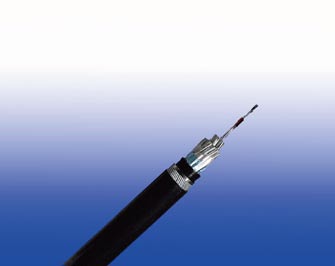

Flame Retardant Individual and Overall Screened, Armoured Instrumentation Cables (Multipair)
RE-2X(St)YSWAY PiMF
APPLICATION
The armoured PVC versions (Part 1 Type 2) are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services.
STANDARDS
- Basic design adapted to BS 5308 Part 1 Type 2
FIRE PERFORMANCE
Flame Retardance (Single Vertical
Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation
(Vertically-mounted bundled wires& cable test)** |
EN 60332-3-24 (cat. A); IEC 60332-3-22; BS EN 60332-3-22; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.
VOLTAGE RATING
300/500 V

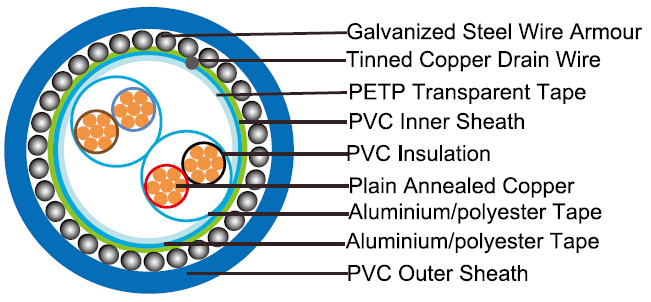

CABLE CONSTRUCTION
| Conductors |
Annealed or tinned copper, sizes: 0.5mm^2 and 0.75mm^2 mulitistranded(Class 5), 0.5 mm^2, 1.0 mm^2 solid(Class 1), 1.5mm^2 or 2.5mm^2,multistranded(Class 2) to BS6360 |
| Insulation |
Extruded XLPE compound, PE compound can be offered as option |
| Pairs |
Two insulated conductors uniformly twisted together with a lay not exceeding 100mm |
| Individual Screen |
Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm^2 |
| Binder tape |
PETP transparent tape |
| Overall Screen |
Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm^2 |
| Inner Sheath |
Thermoplastic PVC compound |
| Amouring |
Galvanized steel wire armour |
| Outer Sheath |
Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request |
COLOUR CODE
| Insulation Colour |
See technical information |
| Outer Sheath |
Black or blue |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range during operation |
-5°C - +50°C |
| Temperature range fixed installation |
-30°C - +90°C for XLPE, -30°C - +70°C for PE |
| Maximum short circuit temperature (5 Seconds) |
250°C |
| Minimum bending radius |
6 x Overall Diameter |
ELECTRICAL PROPERTIES
| Conductor Area Size |
mm 2 |
0.5 |
0.5 |
0.75 |
1.0 |
1.5 |
| Conductor Stranding |
No. x mm |
1 x 0.8 |
16 x 0.2 |
24 x 0.2 |
1 x 1.13 |
7 x 0.53 |
| Conductor resistance max |
ohm/km |
36.8 |
39.7 |
26.5 |
18.2 |
12.3 |
| Insulation resistance min |
Gohm/km |
5 |
5 |
5 |
5 |
5 |
| Capacitance unbalance at 1 kHz(pair to pair screen) |
pF/250m |
250 |
| Max. Mutual Capacitance @ 1 kHz forNon OS or OS cables (except one-pair and two-pairs) |
pF/m |
115 |
115 |
115 |
115 |
115 |
| Max. Mutual Capacitance @ 1 kHz IS/OS cables (include 1 pair and 2 pair) |
pF/m |
75 |
75 |
75 |
75 |
75 |
| Max. L/R Ratio for adjacent cores(Inductance/Resistance) |
μH/ohm |
25 |
25 |
25 |
25 |
40 |
| Test voltage |
Core to core |
V |
1000 |
1000 |
1000 |
1000 |
1000 |
| Core to screen |
V |
1000 |
1000 |
1000 |
1000 |
1000 |
| Rated Voltage max |
V |
300/500 |
300/500 |
300/500 |
300/500 |
300/500 |
CONSTRUCTION PARAMETERS
| No.of Pairs |
No./Nominal Diameter of Strands |
Nominal Conductor
Cross-Section
Area |
Nominal Insulation Thickness |
Nominal
Inner Sheath
Thickness |
Nominal Diameter
Overall Inner
Sheath |
Nominal Armour Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx.
Weight |
| No. |
No./mm |
mm2 |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 2 |
1/0.80 |
0.5 |
0.5 |
0.9 |
9.7 |
0.9 |
1.4 |
14.3 |
380 |
| 5 |
1/0.80 |
0.5 |
0.5 |
1.2 |
13 |
1.25 |
1.5 |
18.5 |
640 |
| 10 |
1/0.80 |
0.5 |
0.5 |
1.2 |
16.9 |
1.25 |
1.7 |
22.8 |
890 |
| 15 |
1/0.80 |
0.5 |
0.5 |
1.3 |
19.7 |
1.6 |
1.7 |
26.3 |
1350 |
| 20 |
1/0.80 |
0.5 |
0.5 |
1.3 |
22.3 |
1.6 |
1.8 |
29.1 |
1470 |
| 30 |
1/0.80 |
0.5 |
0.5 |
1.5 |
27.1 |
1.6 |
1.9 |
34.1 |
1870 |
| 50 |
1/0.80 |
0.5 |
0.5 |
2 |
35 |
2 |
2.2 |
43.4 |
3000 |
| 2 |
16/0.2 |
0.5 |
0.6 |
1.1 |
11.2 |
0.9 |
1.5 |
16 |
460 |
| 5 |
16/0.2 |
0.5 |
0.6 |
1.2 |
14.5 |
1.25 |
1.6 |
20.2 |
760 |
| 10 |
16/0.2 |
0.5 |
0.6 |
1.3 |
19.3 |
1.6 |
1.8 |
26.1 |
1300 |
| 15 |
16/0.2 |
0.5 |
0.6 |
1.5 |
22.6 |
1.6 |
1.8 |
29.4 |
1440 |
| 20 |
16/0.2 |
0.5 |
0.6 |
1.5 |
25.7 |
1.6 |
1.9 |
32.7 |
1870 |
| 30 |
16/0.2 |
0.5 |
0.6 |
1.7 |
31 |
2 |
2.1 |
39.2 |
2400 |
| 50 |
16/0.2 |
0.5 |
0.6 |
2.2 |
39.9 |
2.5 |
2.4 |
49.7 |
3930 |
| 2 |
24/0.2 |
0.75 |
0.6 |
1.1 |
12.1 |
0.9 |
1.5 |
16.9 |
500 |
| 5 |
24/0.2 |
0.75 |
0.6 |
1.2 |
15.7 |
1.25 |
1.6 |
21.4 |
920 |
| 10 |
24/0.2 |
0.75 |
0.6 |
1.3 |
20.9 |
1.6 |
1.7 |
27.5 |
1610 |
| 15 |
24/0.2 |
0.75 |
0.6 |
1.5 |
24.6 |
1.6 |
1.9 |
31.6 |
1960 |
| 20 |
24/0.2 |
0.75 |
0.6 |
1.5 |
27.9 |
1.6 |
1.9 |
34.9 |
2420 |
| 30 |
24/0.2 |
0.75 |
0.6 |
2 |
34.4 |
2 |
2.2 |
42.8 |
3180 |
| 50 |
24/0.2 |
0.75 |
0.6 |
2.2 |
43.5 |
2.5 |
2.5 |
53.5 |
4506 |
| 2 |
1/1.13 |
1 |
0.6 |
1.1 |
11.9 |
0.9 |
1.5 |
16.7 |
515 |
| 5 |
1/1.13 |
1 |
0.6 |
1.2 |
15.4 |
1.25 |
1.6 |
21.1 |
950 |
| 10 |
1/1.13 |
1 |
0.6 |
1.3 |
20.5 |
1.6 |
1.8 |
27.3 |
1330 |
| 15 |
1/1.13 |
1 |
0.6 |
1.5 |
24.1 |
1.6 |
1.9 |
31.1 |
1680 |
| 20 |
1/1.13 |
1 |
0.6 |
1.7 |
27.7 |
2 |
2 |
35.7 |
2540 |
| 30 |
1/1.13 |
1 |
0.6 |
2 |
33.7 |
2 |
2.2 |
42.1 |
2900 |
| 50 |
1/1.13 |
1 |
0.6 |
2.2 |
42.5 |
2.5 |
2.5 |
52.5 |
4800 |
| 2 |
7/0.53 |
1.5 |
0.6 |
1.2 |
13.6 |
1.25 |
1.6 |
19.3 |
730 |
| 5 |
7/0.53 |
1.5 |
0.6 |
1.3 |
17.7 |
1.6 |
1.7 |
24.3 |
1180 |
| 10 |
7/0.53 |
1.5 |
0.6 |
1.5 |
23.9 |
1.6 |
1.9 |
30.9 |
1820 |
| 15 |
7/0.53 |
1.5 |
0.6 |
1.7 |
28 |
2 |
2 |
36 |
2350 |
| 20 |
7/0.53 |
1.5 |
0.6 |
1.7 |
31.7 |
2 |
2.1 |
39.9 |
3030 |
| 30 |
7/0.53 |
1.5 |
0.6 |
2 |
38.6 |
2 |
2.5 |
48.6 |
4050 |
| 50 |
7/0.53 |
1.5 |
0.6 |
2.2 |
48.9 |
2 |
2.7 |
59.3 |
5960 |
