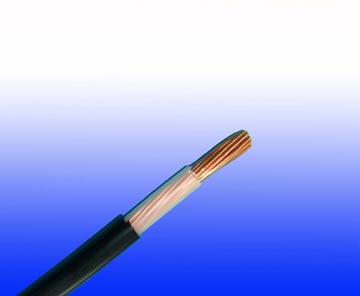

300/500V XLPE Insulated, PVC Sheathed Power Cables (Single Core)

FGD300 05RV-R (CU/XLPE/PVC 300/500V Class 2)

APPLICATION

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

STANDARDS

• Basic design adapted to IEC 60502-1

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)**	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)**	EN 60332-3-22 (cat. A); IEC 60332-3-22; BS EN 60332-3-22; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

VOLTAGE RATING

300/500 V

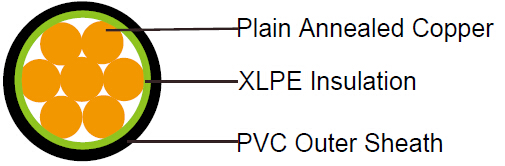

CABLE CONSTRUCTION

Conductor	Plain annealed copper wire, stranded according to IEC 60228 class 2
Insulation	Extruded XLPE compound
Outer Sheath	Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request

COLOUR CODE

Insulation Colour as per BS7671
Sheath Colour	Black (other colors upon request)

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation (XLPE)	90°C
Maximum short circuit temperature (5 Seconds)	250°C
Minimum bending radius	6 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor		FGD300 05RV-R
No. of Core X Cross Section	No./Nominal Diameter of Strands	Nominal Insulation Thickness	Nominal Overall Diameter	Approx. Weight
Noxmm2	No./mm	mm	mm	kg/km
1x1.5	7/0.53	0.50	3.8	27
1x2.5	7/0.67	0.50	4.2	37
1x4.0	7/0.85	0.50	4.8	54

ELECTRICAL PROPERTIES

Conductor Operating Temperature	70°C
Ambient Temperature	30°C

Current-Carrying Capacities (Amp)

Conductor cross-sectional area	Reference Method A (enclosed inconduit in thermally insulating walletc)		Reference Method B (enclosed inconduit on a wall or in trunking etc)		Reference Method C (clipped direct)		Reference Method F (in free air or on aperforated cable tray, horizontal or verticaletc) Touching			Reference MethodG (in free air) Spaced by one cable diameter
	2 cables, single-phase a.c. or d.c.	3 or 4 cables, three-a.c.	2 cables, single-phase a.c. or d.c	3 or 4 cables, three-phase a.c.	2 cables, single-phase a.c. or d.c. flat and touching	3 or 4 cables, three-phase a.c. flat and touching or trefoil	2 cables, single-phase a.c. or d.c. flat	3 cables, three-phasea. c. flat	3 cables, three-phase a.c. trefoil	2 cables, single-phase a.c. or d.c. or 3 cables three-phase a.c. flat
										Horizontal	Vertical
1	2	3	4	5	6	7	8	9	10	11	12
mm2	A	A	A	A	A	A	A	A	A	A	A
1.5	19	17	23	20	25	23	-	-	-	-	-
2.5	26	23	31	28	34	31	-	-	-	-	-
4.0	35	31	42	37	46	41	-	-	-	-	-

Voltage Drop (Per Amp Per Meter)

Nominal Cross Section Area	2 cablesd.c.	2 cables, single-phase a.c.			3 or 4 cables, three-phase a.c.
		Ref. Methods A and B (enclosed in conduit ortrunking)	Ref. Methods C, F&G(clipped direct, on trays or in free air)		Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall)	Ref. Methods C, F&G (clipped direct, on trays or in free air)
						Cables touching,Trefoil	Cables touching,Flat	Cables spaced*,Flat
1	2	3	Cables touching 4	Cables spaced*5	6	7	8	9
mm2	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m	mV/A/m
1.5	31	31	31	31	27	27	27	27
2.5	19	19	19	19	16	16	16	16
4.0	12	12	12	12	10	10	10	10

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
