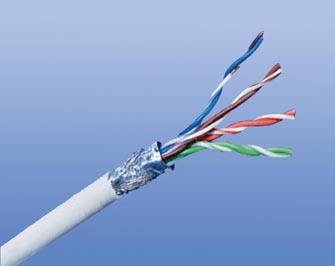

Flame Retardant CAT5e CWB/SWB/SWA Armoured Data
CAT5e U/UTP4P24LH CWB/SWB/SWA
CAT5e F/UTP4P24LH CWB/SWB/SWA
CAT5e SF/UTP4P24LH CWB/SWB/SWA
APPLICATION
Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
STANDARDS
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1* |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
110V

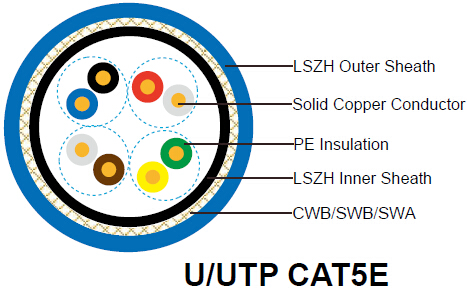

CABLE CONSTRUCTION
| Conductors |
24AWG solid bare copper |
| Insulation |
HDPE |
| Twinning |
Two coloured insulated conductors twisted together to form a pair |
| Inner Sheath |
Flame retardant, low smoke and halogen-free polyolefin, coloured black |
| Armouring |
CWB: Copper Wire Braid
SWB: Steel Wire Braid
SWA: Steel Wire Armour |
| Outer Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655:section 2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |
| Cat5E F/UTP |
These cables have collective shielding of aluminium/Polyester tape with drain wire |
| Cat5E SF/UTP |
These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range |
-30°C – +75°C |
| Minimum bending radius during installation (mobile state) |
8 x Overall Diameter |
| Minimum bending radius during operation (fixed state) |
4 x Overall Diameter |
ELECTRICAL PROPERTIES
| AWG |
|
24 |
| Nominal Conductor Diameter |
mm |
0.5/0.51/0.53 |
| Maximum DC Resistant@20°C |
Ω/100m |
9.38 |
| Maximum DC Resistant Unbalance |
% |
5 |
| Maximum Mutual Capacitance |
pF/m |
55.8 |
| Maximum Capacitance Unbalance |
pF/100m |
330 |
| Characteristic Impedance@1-100MHz |
Ω |
100±15 |
| Maximum Propagation Delay Skew |
ns/100m |
45 |
TRANSMISSION PROPERTIES
| FREQ |
Maximum Attenuation |
Minimum NEXT |
Minimum PSNEXT |
Minimum ELFEXT |
Minimum PSELFEXT |
MinimumRL |
| MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB |
| 0.772 |
1.8 |
67.0 |
64.0 |
66.0 |
63.0 |
— |
| 1 |
2.0 |
65.3 |
62.3 |
63.8 |
60.8 |
20.0 |
| 4 |
4.1 |
56.3 |
53.3 |
51.7 |
48.7 |
23.0 |
| 8 |
5.8 |
51.8 |
48.8 |
45.7 |
42.7 |
24.5 |
| 10 |
6.5 |
50.3 |
47.3 |
43.8 |
40.8 |
25.0 |
| 16 |
8.2 |
47.3 |
44.3 |
39.7 |
36.7 |
25.0 |
| 20 |
9.3 |
45.8 |
42.8 |
37.7 |
34.7 |
25.0 |
| 25 |
10.4 |
44.3 |
41.3 |
35.8 |
32.8 |
24.3 |
| 31.25 |
11.7 |
42.9 |
39.9 |
33.9 |
30.9 |
23.6 |
| 62.5 |
17.0 |
38.4 |
35.4 |
27.8 |
24.8 |
21.5 |
| 100 |
22.0 |
35.3 |
32.3 |
23.8 |
20.8 |
20.1 |
CONSTRUCTION PARAMETERS
| Cable Code |
Construction No. of elements× No. of cores in element× Conductor Diameter |
Nominal
Insulation
Thickness |
Nominal Inner Sheath Thickness |
Nominal Outer Sheath Thickness |
Nominal
Overall Diameter |
Nominal Weight |
| |
mm |
mm |
mm |
mm |
mm |
kg/km |
| CAT5 U/UTP4P24LH CWB |
4×2×0.5/0.51 |
0.2 |
0.6 |
1.0 |
7.68 |
97 |
| CAT5 U/UTP4P24LH SWB |
4×2×0.5/0.51 |
0.2 |
0.6 |
1.0 |
7.68 |
93 |
| CAT5 U/UTP4P24LH SWA |
4×2×0.5/0.51 |
0.2 |
0.6 |
1.0 |
8.68 |
165 |
| CAT5 F/UTP4P24LH CWB |
4×2×0.53 |
0.2 |
0.6 |
1.0 |
8.28 |
116 |
| CAT5 F/UTP4P24LH SWB |
4×2×0.53 |
0.2 |
0.6 |
1.0 |
8.28 |
112 |
| CAT5 F/UTP4P24LH SWA |
4×2×0.53 |
0.2 |
0.6 |
1.0 |
9.28 |
192 |
| CAT5 SF/UTP4P24LH CWB |
4×2×0.53 |
0.2 |
0.6 |
1.0 |
8.76 |
123 |
| CAT5 SF/UTP4P24LH SWB |
4×2×0.53 |
0.2 |
0.6 |
1.0 |
8.76 |
119 |
| CAT5 SF/UTP4P24LH SWA |
4×2×0.53 |
0.2 |
0.6 |
1.0 |
9.76 |
216 |
