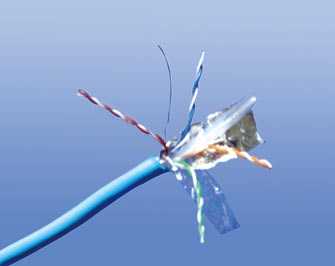

Flame Retardant CAT6 Data Cables
CAT6 U/UTP4P23LH
CAT6 F/UTP4P23LH
CAT6 SF/UTP4P23LH
APPLICATION
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol,suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet)application. In addition, these cables are with copper wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
STANDARDS
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1* |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
110V

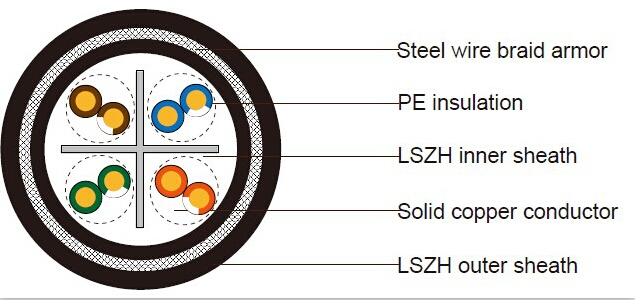

CABLE CONSTRUCTION
| Conductors |
23AWG solid bare copper |
| Insulation |
HDPE |
| Twinning |
Two coloured insulated conductors twisted together to form a pair |
| Outer Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655:section 2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |

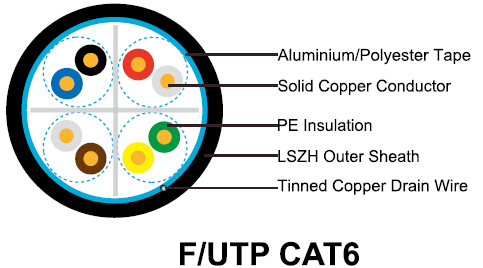

| Cat6 F/UTP |
These cables have collective shielding of aluminium/Polyester tape with drain wire |

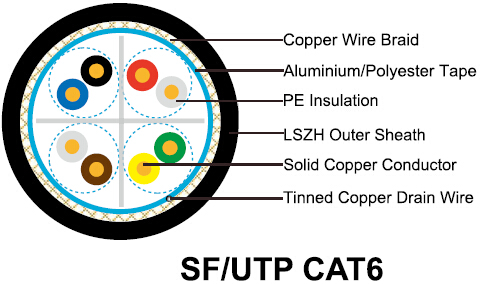

| Cat6 SF/UTP |
These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid with drain wire |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range |
-30°C – +75°C |
| Minimum bending radius during installation (mobile state) |
8 x Overall Diameter |
| Minimum bending radius during operation (fixed state) |
4 x Overall Diameter |
ELECTRICAL PROPERTIES
| AWG |
|
23 |
| Nominal Conductor Diameter |
mm |
0.56/0.57/0.58 |
| Maximum DC Resistant@20°C |
Ω/100m |
9.38 |
| Maximum DC Resistant Unbalance |
% |
3 |
| Maximum Mutual Capacitance |
pF/m |
5.8 |
| Maximum Capacitance Unbalance |
pF/100m |
30 |
| Characteristic Impedance@1-100MHz |
Ω |
100±15 |
| Maximum Propagation Delay Skew |
ns/100m |
18 |
TRANSMISSION PROPERTIES
| FREQ |
Maximum Attenuation |
Minimum NEXT |
Minimum PSNEXT |
Minimum ELFEXT x |
Minimum PSELFEXT |
MinimumRL |
| MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB |
| 0.772 |
1.8 |
76.0 |
74. |
70.0 |
67.0 |
— |
| 1 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
20.0 |
| 4 |
3.8 |
65.3 |
63.3 |
55.7 |
52.7 |
23.0 |
| 8 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
24.5 |
| 10 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
25.0 |
| 16 |
7.6 |
56.3 |
54.3 |
43.7 |
40.7 |
25.0 |
| 20 |
8.5 |
54.8 |
52.8 |
41.7 |
38.7 |
25.0 |
| 25 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
24.3 |
| 31.25 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
23.6 |
| 62.5 |
15.4 |
47.4 |
45.4 |
31.8 |
28.8 |
21.5 |
| 100 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
20.1 |
| 155 |
25.2 |
41.5 |
39.5 |
23.9 |
20.9 |
18.8 |
| 200 |
29.0 |
39.8 |
37.8 |
21.7 |
18.7 |
18.0 |
| 250 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
17.3 |
CONSTRUCTION PARAMETERS
| Cable Code |
Conductor
Diameter |
Diameter
Over Insulation |
Pairs |
Screen |
Nominal
Overall Diameter |
| |
mm |
mm |
|
mm |
mm |
| CAT6 U/UTP4P24LH |
0.56/0.57 |
1.02 |
4 |
Nil |
6.0 |
| CAT6 F/UTP4P24LH |
0.57/0.58 |
1.02 |
4 |
Overall Aluminum Tape Screen |
6.3 |
| CAT6 SF/UTP4P24LH |
0.57/0.58 |
1.02 |
4 |
Overall Aluminum Tape Screen & Copper Wire Braid |
6.6 |
