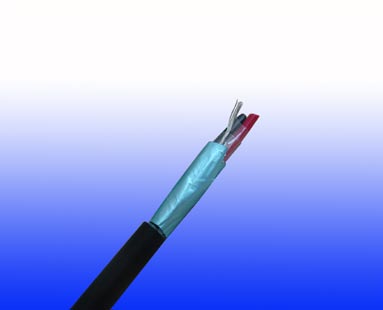

Flame Retardant RS485 Databus Cables
APPLICATION
The cables are designed for RS485 data connections where continued functionality is required during a fire situation. This cable combines low capacitance insulation with one of the highest levels of screening to provide high speed, interference free, data transmission where continued functionality is required during a fire situation.
STANDARDS
- Basic design adapted to EIA/TIA 485
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1* |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.
CABLE CONSTRUCTION
Multipair RS 485 Overall Screened Databus Cable
| Conductors |
tinned copper wire, stranded according to IEC 60228 class 2 |
| Insulation |
Foam PE or foam skin PE |
| Cabling Elements |
Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation |
| Cabling |
Pairs are cabled together in concentric layers |
| Overall screen |
Aluminum/polyester tape with tinned copper drain wire |
| Outer Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZHcompound type SW2-SW4 as per BS 7655-2.6 can be offered.) |

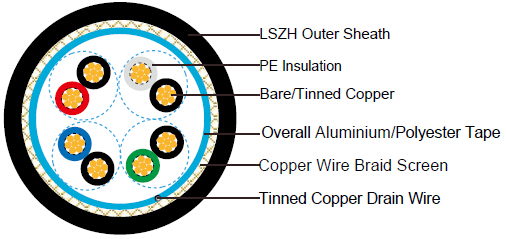

Multipair RS 485 Overall Double Screened Databus Cable
| Conductors |
tinned copper wire, stranded according to IEC 60228 class 2 |
| Insulation |
Foam PE or foam skin PE |
| Cabling Elements |
Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation |
| Cabling |
Pairs are cabled together in concentric layers |
| Overall screen |
Aluminium/polyester tape+copper wire braid |
| Outer Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |
Multipair RS 485 Individual & Overall screened Databus Cable
| Conductors |
tinned copper wire, stranded according to IEC 60228 class 2 |
| Insulation |
Foam PE or foam skin PE |
| Cabling Elements |
Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation |
| Cabling |
Pairs are cabled together in concentric layers |
| Individual Screen |
Individual aluminium/polyester tape |
| Overall screen |
Copper wire braid |
| Outer Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.) UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |
Multipair RS 485 Overall Screened Databus Cable
| Conductors |
tinned copper wire, stranded according to IEC 60228 class 2 |
| Insulation |
Foam PE or foam skin PE |
| Cabling Elements |
Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two pair cable had four cores laid in quad formation |
| Cabling |
Pairs are cabled together in concentric layers |
| Overall screen |
Copper wire braid |
| Outer Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.) UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range during operation (fixed state) |
-20°C – +90°C |
| Temperature range during installation (mobile state) |
-5°C - +60°C |
| Minimum bending radius |
8 x Overall Diameter |
ELECTRICAL PROPERTIES
| Dielectric test |
1000 V r.m.s. for 5’ (core-core) |
|
1000 V r.m.s. for 5’ (core-screen) |
| Impedance |
120Ω |
| Capacitance |
45 nF/km conductor to conductor |
|
90 nF/km conductor to shield |
CONSTRUCTION PARAMETERS
Multipair RS 485 Overall Screened Databus Cable
RE-02Y(St)H/RE-02YS(St)H
| No.of pair x |
Nominal Cross Sectional Area |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal
Overall Diameter |
Approx.Weight |
| No. |
mm2 |
No/mm |
mm |
mm |
mm |
kg/km |
| 1 |
0.22 |
7/0.2 |
0.55 |
0.40 |
4.0 |
21 |
| 2 |
0.22 |
7/0.2 |
0.55 |
0.40 |
7.1 |
42 |
| 4 |
0.22 |
7/0.2 |
0.55 |
0.40 |
8.3 |
68 |
| 1 |
0.50 |
16/0.2 |
0.55 |
0.40 |
4.6 |
32 |
| 2 |
0.50 |
16/0.2 |
0.55 |
0.40 |
8.2 |
68 |
| 4 |
0.50 |
16/0.2 |
0.55 |
0.40 |
9.8 |
115 |
| 1 |
0.75 |
24/0.2 |
0.55 |
0.40 |
5.1 |
40 |
| 2 |
0.75 |
24/0.2 |
0.55 |
0.40 |
9.1 |
84 |
| 4 |
0.75 |
24/0.2 |
0.55 |
0.40 |
10.9 |
144 |
| 1 |
1.00 |
30/0.2 |
0.55 |
0.40 |
5.2 |
49 |
| 2 |
1.00 |
30/0.2 |
0.55 |
0.40 |
9.5 |
105 |
| 4 |
1.00 |
30/0.2 |
0.55 |
0.40 |
11.2 |
182 |
Multipair RS 485 Overall Double Screened Databus Cable
RE-02Y(St)CH / RE-02YS(St)CH
| No.of pair x |
Nominal
Cross Sectional Area |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
| |
mm2 |
No/mm |
mm |
mm |
mm |
kg/km |
| 1 |
0.22 |
7/0.2 |
0.55 |
0.40 |
4.5 |
34 |
| 2 |
0.22 |
7/0.2 |
0.55 |
0.40 |
7.5 |
67 |
| 4 |
0.22 |
7/0.2 |
0.55 |
0.40 |
8.8 |
97 |
| 1 |
0.50 |
16/0.2 |
0.55 |
0.40 |
5.1 |
48 |
| 2 |
0.50 |
16/0.2 |
0.55 |
0.40 |
8.7 |
97 |
| 4 |
0.50 |
16/0.2 |
0.55 |
0.40 |
10.3 |
150 |
| 1 |
0.75 |
24/0.2 |
0.55 |
0.40 |
5.6 |
57 |
| 2 |
0.75 |
24/0.2 |
0.55 |
0.40 |
9.7 |
116 |
| 4 |
0.75 |
24/0.2 |
0.55 |
0.40 |
11.4 |
182 |
| 1 |
1.00 |
30/0.2 |
0.55 |
0.40 |
5.7 |
67 |
| 2 |
1.00 |
30/0.2 |
0.55 |
0.40 |
10.0 |
138 |
| 4 |
1.00 |
30/0.2 |
0.55 |
0.40 |
11.8 |
222 |
Multipair RS 485 Individual & Overall screened Databus Cable
RE-02Y(St)H PiMF/ RE-02YS(St)H PiMF
| No.of pair x |
Nominal Cross
Sectional Area |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal
Overall Diameter |
Approx.Weight |
| No. |
mm2 |
No/mm |
mm |
mm |
mm |
kg/km |
| 1 |
0.22 |
7/0.2 |
0.55 |
0.40 |
4.4 |
35 |
| 2 |
0.22 |
7/0.2 |
0.55 |
0.40 |
7.5 |
69 |
| 4 |
0.22 |
7/0.2 |
0.55 |
0.40 |
8.8 |
106 |
| 1 |
0.50 |
16/0.2 |
0.55 |
0.40 |
5.0 |
49 |
| 2 |
0.50 |
16/0.2 |
0.55 |
0.40 |
8.7 |
100 |
| 4 |
0.50 |
16/0.2 |
0.55 |
0.40 |
10.3 |
159 |
| 1 |
0.75 |
24/0.2 |
0.55 |
0.40 |
5.5 |
58 |
| 2 |
0.75 |
24/0.2 |
0.55 |
0.40 |
9.7 |
119 |
| 4 |
0.75 |
24/0.2 |
0.55 |
0.40 |
11.2 |
174 |
| 1 |
1.00 |
30/0.2 |
0.55 |
0.40 |
5.6 |
68 |
| 2 |
1.00 |
30/0.2 |
0.55 |
0.40 |
10.0 |
142 |
| 4 |
1.00 |
30/0.2 |
0.55 |
0.40 |
11.8 |
234 |
Multipair RS 485 Overall Screened Databus Cables
RE-02YCH / RE-02YSCH
| No.of pair x |
Nominal
Cross Sectional Area |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
| |
mm2 |
No/mm |
mm |
mm |
mm |
kg/km |
| 1 |
0.22 |
7/0.2 |
0.55 |
0.40 |
4.3 |
31 |
| 2 |
0.22 |
7/0.2 |
0.55 |
0.40 |
7.3 |
61 |
| 4 |
0.22 |
7/0.2 |
0.55 |
0.40 |
8.5 |
91 |
| 1 |
0.50 |
16/0.2 |
0.55 |
0.40 |
4.9 |
44 |
| 2 |
0.50 |
16/0.2 |
0.55 |
0.40 |
8.5 |
91 |
| 4 |
0.50 |
16/0.2 |
0.55 |
0.40 |
10.0 |
142 |
| 1 |
0.75 |
24/0.2 |
0.55 |
0.40 |
5.4 |
53 |
| 2 |
0.75 |
24/0.2 |
0.55 |
0.40 |
9.5 |
109 |
| 4 |
0.75 |
24/0.2 |
0.55 |
0.40 |
11.2 |
174 |
| 1 |
1.00 |
30/0.2 |
0.55 |
0.40 |
5.5 |
63 |
| 2 |
1.00 |
30/0.2 |
0.55 |
0.40 |
9.8 |
131 |
| 4 |
1.00 |
30/0.2 |
0.55 |
0.40 |
11.5 |
213 |
