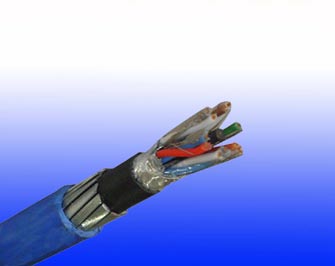

Flame Retardant Overall Screened, Armoured Instrumentation Cables (Multipair)
RE-2X(St)HSWAH
APPLICATION
The armoured LSZH versions (Part 1 Type 2) cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.
STANDARDS
- Basic design adapted to BS 5308 Part1 Type2
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1; BS 6425-1* |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
300/500 V

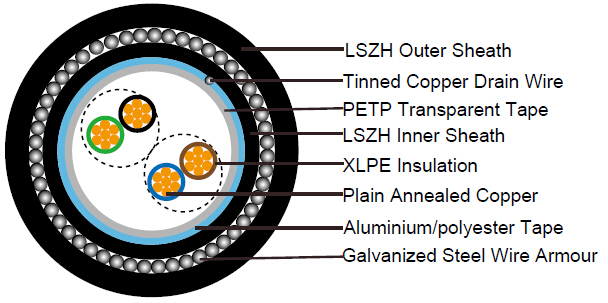

CABLE CONSTRUCTION
| Conductors |
Annealed or tinned copper, sizes: 0.5mm^2 and 0.75mm^2 mulitistranded (Class 5), 0.5 mm^2, 1.0 mm^2 solid (Class 1), 1.5mm^2 or 2.5mm^2, multistranded (Class 2) to BS6360 |
| Insulation |
Extruded XLPE compound, PE compound can be offered as option |
| Pairs |
Two insulated conductors uniformly twisted together with a lay not exceeding 100mm |
| Binder Tape |
PETP transparent tape |
| Overall Screen |
Aluminium/polyester tape is applied over the laid up pairs with metallic side down in contact with tinned copper drain wire, 0.5mm^2 |
| Inner Sheath |
Thermoplastic LSZH compound |
| Amouring: |
Galvanized steel wire armour |
| Outer Sheath |
Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option |
COLOUR CODE
| Insulation Colour |
Please refer to BS 5308 Part 1 colour code chat |
| Outer Sheath |
Black or blue |
PHYSICAL AND THERMAL PROPERTIES
| Temperature range during operation |
-5°C - +50°C |
| Temperature range fixed installation |
-30°C - +90°C for XLPE, -30°C - +70°C for PE |
| Maximum short circuit temperature (5 Seconds) |
250°C |
| Minimum bending radius |
6 x Overall Diameter |
ELECTRICAL PROPERTIES
| Conductor Area Size |
mm2 |
0.5 |
0.5 |
0.75 |
1.0 |
1.5 |
| Conductor Stranding |
No. x mm |
1 x 0.8 |
16 x 0.2 |
24 x 0.2 |
1 x 1.13 |
7 x 0.53 |
| Conductor resistance max |
ohm/km |
36.8 |
39.7 |
26.5 |
18.2 |
12.3 |
| Insulation resistance min |
Gohm/km |
5 |
5 |
5 |
5 |
5 |
| Capacitance unbalance at 1 kHz(pair to pair screen) |
pF/250m |
250 |
| Max. Mutual Capacitance @ 1 kHz forNon OS or OS cables (except one-pair and two-pairs) |
pF/m |
115 |
115 |
115 |
115 |
120 |
| Max. Mutual Capacitance @ 1 kHz IS/OS cables (include 1 pair and 2 pair) |
pF/m |
75 |
75 |
75 |
75 |
85 |
| Max. L/R Ratio for adjacent cores(Inductance/Resistance) |
μH/ohm |
25 |
25 |
25 |
25 |
40 |
| Test voltage |
Core to core |
V |
1000 |
1000 |
1000 |
1000 |
1000 |
| Core to screen |
V |
1000 |
1000 |
1000 |
1000 |
1000 |
| Rated voltage max |
V |
300/500 |
300/500 |
300/500 |
300/500 |
300/500 |
CONSTRUCTION PARAMETERS
| Number of Pairs |
No./Nominal Diameter of Strands |
Nominal Conductor
Cross-Section
Area |
Nominal Insulation
Thickness |
Nominal Bedding Thickness |
Diameter
Under
Armour |
Armour
Wire Diameter |
Nominal Sheath Thickness |
Nominal
Overall Diameter |
Approx. Weight |
| No. |
no./mm |
mm2 |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 1 |
1/0.80 |
0.5 |
0.5 |
0.8 |
5.5 |
0.9 |
1.3 |
9.9 |
200 |
| 2 |
1/0.80 |
0.5 |
0.5 |
0.8 |
6.8 |
0.9 |
1.3 |
11.2 |
260 |
| 5 |
1/0.80 |
0.5 |
0.5 |
1.1 |
10.9 |
0.9 |
1.4 |
15.5 |
460 |
| 10 |
1/0.80 |
0.5 |
0.5 |
1.2 |
14.4 |
1.25 |
1.6 |
20.1 |
790 |
| 15 |
1/0.80 |
0.5 |
0.5 |
1.2 |
16.5 |
1.25 |
1.6 |
22.2 |
1100 |
| 20 |
1/0.80 |
0.5 |
0.5 |
1.3 |
18.8 |
1.6 |
1.7 |
25.4 |
1280 |
| 30 |
1/0.80 |
0.5 |
0.5 |
1.3 |
22.3 |
1.6 |
1.8 |
29.1 |
1520 |
| 50 |
1/0.80 |
0.5 |
0.5 |
1.5 |
28.5 |
1.6 |
2 |
35.7 |
2100 |
| 1 |
16/0.2 |
0.5 |
0.6 |
0.8 |
6.2 |
0.9 |
1.3 |
10.6 |
250 |
| 2 |
16/0.2 |
0.5 |
0.6 |
0.8 |
7.6 |
0.9 |
1.3 |
12 |
300 |
| 5 |
16/0.2 |
0.5 |
0.6 |
1.1 |
12.4 |
0.9 |
1.5 |
17.2 |
560 |
| 10 |
16/0.2 |
0.5 |
0.6 |
1.2 |
16.5 |
1.25 |
1.6 |
22.2 |
970 |
| 15 |
16/0.2 |
0.5 |
0.6 |
1.3 |
19.2 |
1.6 |
1.7 |
25.8 |
1240 |
| 20 |
16/0.2 |
0.5 |
0.6 |
1.3 |
21.7 |
1.6 |
1.8 |
28.5 |
1640 |
| 30 |
16/0.2 |
0.5 |
0.6 |
1.5 |
26.4 |
1.6 |
1.9 |
33.4 |
1770 |
| 50 |
16/0.2 |
0.5 |
0.6 |
1.7 |
33.4 |
2 |
2.1 |
41.6 |
2770 |
| 1 |
24/0.2 |
0.75 |
0.6 |
0.8 |
6.7 |
0.9 |
1.4 |
10.9 |
280 |
| 2 |
24/0.2 |
0.75 |
0.6 |
0.9 |
8.4 |
0.9 |
1.4 |
12.8 |
330 |
| 5 |
24/0.2 |
0.75 |
0.6 |
1.2 |
13.8 |
1.25 |
1.6 |
19.3 |
750 |
| 10 |
24/0.2 |
0.75 |
0.6 |
1.3 |
18.4 |
1.6 |
1.8 |
24.3 |
1260 |
| 15 |
24/0.2 |
0.75 |
0.6 |
1.3 |
21.1 |
1.6 |
1.9 |
27 |
1480 |
| 20 |
24/0.2 |
0.75 |
0.6 |
1.5 |
24.4 |
1.6 |
2 |
31.4 |
1890 |
| 30 |
24/0.2 |
0.75 |
0.6 |
1.7 |
29.5 |
2 |
2.1 |
37 |
2440 |
| 50 |
24/0.2 |
0.75 |
0.6 |
2 |
37.6 |
2.5 |
2.4 |
47.3 |
3210 |
| 1 |
1/1.13 |
1.0 |
0.6 |
0.8 |
6.6 |
0.9 |
1.3 |
11 |
290 |
| 2 |
1/1.13 |
1.0 |
0.6 |
0.8 |
8 |
0.9 |
1.4 |
12.6 |
345 |
| 5 |
1/1.13 |
1.0 |
0.6 |
1.2 |
13.5 |
1.25 |
1.5 |
19 |
790 |
| 10 |
1/1.13 |
1.0 |
0.6 |
1.2 |
17.7 |
1.25 |
1.7 |
23.6 |
1310 |
| 15 |
1/1.13 |
1.0 |
0.6 |
1.3 |
20.6 |
1.6 |
1.8 |
27.4 |
1740 |
| 20 |
1/1.13 |
1.0 |
0.6 |
1.5 |
23.8 |
1.6 |
1.8 |
30.6 |
2040 |
| 30 |
1/1.13 |
1.0 |
0.6 |
1.5 |
28.4 |
1.6 |
2 |
35.6 |
2180 |
| 50 |
1/1.13 |
1.0 |
0.6 |
2 |
36.6 |
2 |
2.2 |
45 |
3500 |
| 1 |
7/0.53 |
1.5 |
0.6 |
0.8 |
7.5 |
0.9 |
1.4 |
11.9 |
320 |
| 2 |
7/0.53 |
1.5 |
0.6 |
0.9 |
9.3 |
0.9 |
1.5 |
14.1 |
420 |
| 5 |
7/0.53 |
1.5 |
0.6 |
1.2 |
15.6 |
1.25 |
1.6 |
21.6 |
940 |
| 10 |
7/0.53 |
1.5 |
0.6 |
1.3 |
20.9 |
1.6 |
1.8 |
27.4 |
1500 |
| 15 |
7/0.53 |
1.5 |
0.6 |
1.5 |
24.6 |
1.6 |
1.9 |
31.2 |
1970 |
| 20 |
7/0.53 |
1.5 |
0.6 |
1.5 |
27.8 |
1.6 |
2 |
35.8 |
2400 |
| 30 |
7/0.53 |
1.5 |
0.6 |
1.7 |
33.7 |
2 |
2.2 |
42.3 |
3170 |
| 50 |
7/0.53 |
1.5 |
0.6 |
2 |
43 |
2.5 |
2.5 |
53.2 |
5020 |
