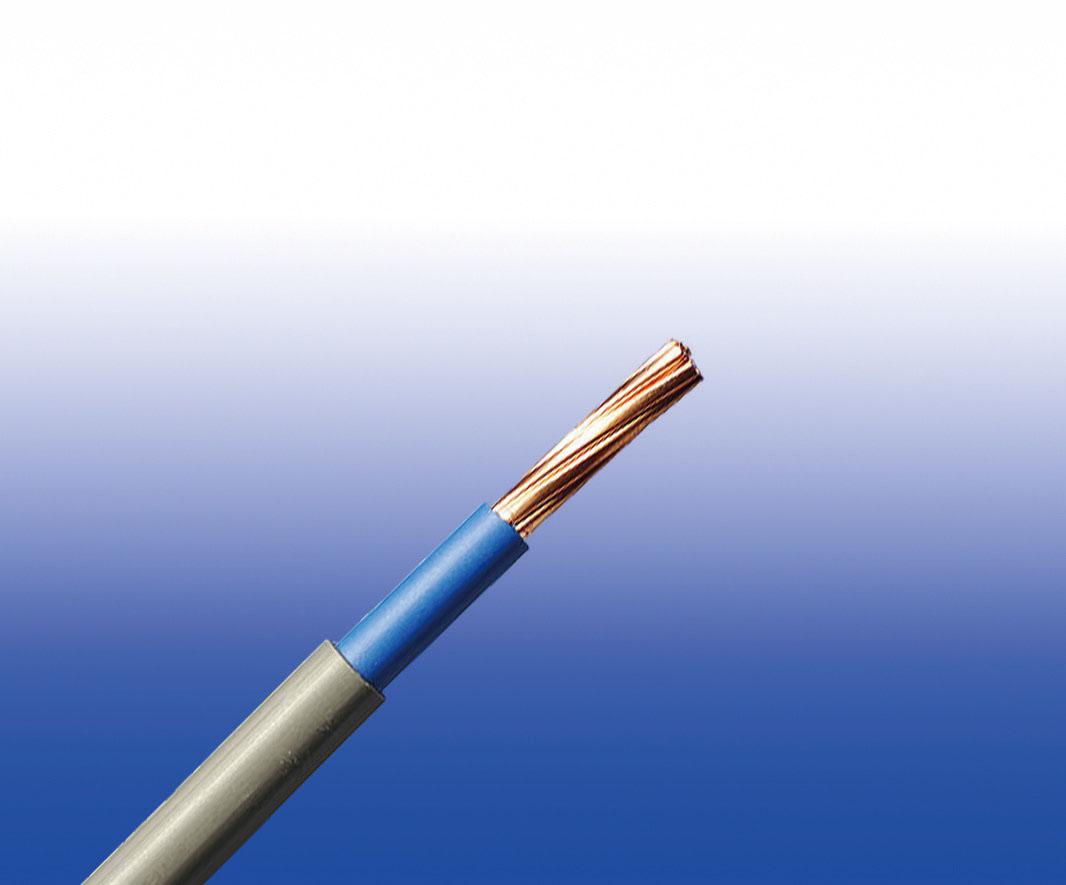

300/500V PVC Insulated, PVC Sheathed Power Cables to BS 6004 (Single Core)
FGD300 05VV-U/R (CU/PVC/PVC 300/500V Class 1/2)
BS Code: 6181Y (CU/PVC/PVC)
APPLICATION
The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
STANDARDS
- Basic design to BS 6004: 2012
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2 |
VOLTAGE RATING
300/500V

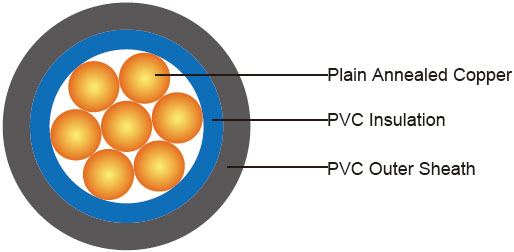

Cable Construction
| Conductor |
Annealed copper conductor, class 1 (1.0mm^2 to 2.5mm^2) or class 2 (4mm^2 to 35mm^2) according to BS EN 60228. |
| Insulation |
PVC Type TI 1 according to BS EN 50363-3. |
| Outer Sheath |
PVC Type 6 according to BS 7655-4.2. |
| Outer Sheath Option |
UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request. |
COLOUR CODE
| Insulation Colour |
Brown or blue. |
| Sheath Colour |
Grey, other colours can be offered upon request. |
PHYSICAL AND THERMAL PROPERTIES
| Maximum temperature range during operation (PVC) |
70°C |
| Maximum short circuit temperature (5 Seconds) |
160°C |
| Minimum bending radius |
Up to 10mm^2 - Fixed: 3 x overall diameter |
| |
10mm^2 to 25mm^2 - Fixed: 4 x overall diameter |
CONSTRUCTION PARAMETERS
| Conductor |
FGD300 05VV-U/R |
| No. of Cores x Cross Section |
Class of Conductor |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Maximum Overall Diameter |
Approx. Weight |
| No.xmm² |
|
mm |
|
mm |
kg/km |
| 1x1.0 |
1 |
0.6 |
0.8 |
4.5 |
27 |
| 1x1.5 |
1 |
0.7 |
0.8 |
5.0 |
36 |
| 1x2.5 |
1 |
0.8 |
0.8 |
5.7 |
52 |
| 1x4.0 |
2 |
0.8 |
0.9 |
6.7 |
76 |
| 1x6.0 |
2 |
0.8 |
0.9 |
7.3 |
100 |
| 1x10 |
2 |
1.0 |
0.9 |
8.8 |
160 |
| 1x16 |
2 |
1.0 |
1.0 |
10.1 |
230 |
| 1x25 |
2 |
1.2 |
1.1 |
12.1 |
340 |
| 1x35 |
2 |
1.2 |
1.1 |
13.5 |
440 |
ELECTRICAL PROPERTIES
| Conductor Operating Temperature |
70°C |
| Ambient Temperature |
30° |
Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4D1A
| Conductor cross- sectional area |
Reference Method A (enclosed in conduit in thermally insulating wall etc) |
Reference Method B (enclosed in conduit on a wall or in trunking etc) |
Reference Method C (clipped direct) |
Reference Method F (in free air or on a perforated cable tray horizontal or vertical etc) |
| Touching |
Spaced by one cable diameter |
| 2 cables, single- phase a.c. or d.c. |
3 or 4 cables, three- phase a.c. |
2 cables, single- phase a.c. or d.c |
3 or 4 cables, three- phase a.c. |
2 cables, single- phase a.c. or d.c. flat and touching |
3 or 4 cables, three-phase a.c. flat and touching or trefoil |
2 cables, single- phase a.c. or d.c. flat |
3 cables, three- phase a.c. flat |
3 cables, three- phase a.c. trefoil |
2 cables, single-phase a.c. or d.c. or 3 cables three-phase a.c. flat |
| Horizontal |
Vertical |
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
| mm² |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
| 1.0 |
11.0 |
10.5 |
13.5 |
12.0 |
15.5 |
14 |
- |
- |
- |
- |
- |
| 1.5 |
14.5 |
13.5 |
17.5 |
15.5 |
20 |
18 |
- |
- |
- |
- |
- |
| 2.5 |
20 |
18 |
24 |
21 |
27 |
25 |
- |
- |
- |
- |
- |
| 4.0 |
26 |
24 |
32 |
28 |
37 |
33 |
- |
- |
- |
- |
- |
| 6.0 |
34 |
31 |
41 |
36 |
47 |
43 |
- |
- |
- |
- |
- |
| 10 |
46 |
42 |
57 |
50 |
65 |
59 |
- |
- |
- |
- |
- |
| 16 |
61 |
56 |
76 |
68 |
87 |
79 |
- |
- |
- |
- |
- |
| 25 |
80 |
73 |
101 |
89 |
114 |
104 |
131 |
114 |
110 |
146 |
130 |
| 35 |
99 |
89 |
125 |
110 |
141 |
129 |
162 |
143 |
137 |
181 |
162 |
Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4D1B
| Nominal Cross Section Area |
2 cables d.c. |
2 cables, single-phase a.c. |
3 or 4 cables, three-phase a.c. |
| Ref. Methods A and B (enclosed in conduit or trunking) |
Ref. Methods C & F(clipped direct, on trays or in free air) |
Ref. Methods A & B (enclosed in conduit or trunking |
Ref. Methods C & F (clipped direct, on trays or in free air) |
| Cables touching |
Cables spaced* |
Cables touching, Trefoil |
Cables touching, Flat |
Cables spaced*, Flat |
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
| mm² |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
| 1.0 |
44 |
44 |
44 |
44 |
38 |
38 |
38 |
38 |
| 1.5 |
29 |
29 |
29 |
29 |
25 |
25 |
25 |
25 |
| 2.5 |
18 |
18 |
18 |
18 |
15 |
15 |
15 |
15 |
| 4.0 |
11 |
11 |
11 |
11 |
9.5 |
9.5 |
9,5 |
9.5 |
| 6.0 |
7.3 |
7.3 |
7.3 |
7.3 |
6.4 |
6.4 |
6.4 |
6.4 |
| 10 |
4.4 |
4.4 |
4.4 |
4.4 |
3.8 |
3.8 |
3.8 |
3.8 |
| 16 |
2.8 |
2.8 |
2.8 |
2.8 |
2.4 |
2.4 |
2.4 |
2.4 |
| |
|
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
| 25 |
1.75 |
1.8 |
0.33 |
1.8 |
1.75 |
0.20 |
1.75 |
1.75 |
0.29 |
1.8 |
1.5 |
0.29 |
1.55 |
1.5 |
0.175 |
1.5 |
1.5 |
0.25 |
1.55 |
1.5 |
0.32 |
1.55 |
| 35 |
1.25 |
1.3 |
0.31 |
1.3 |
1.25 |
0.195 |
1.25 |
1.25 |
0.28 |
1.3 |
1.1 |
0.27 |
1.10 |
1.1 |
0.170 |
1.1 |
1.1 |
0.24 |
1.10 |
1.1 |
0.32 |
1.15 |
Note: *Spacings larger than one cable diameter will result in a large voltage drop.
r = conductor resistance at operating temperature
x = reactance
z = impedance
