3GKW-DW/S EMC 0.6/1KV Dual Wall Screened Multicore

Applications

Multi core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

Standards

  • EN45545-2
  • BS 6853 -1a
  • DIN 5510-2 1-4
  • NFF 16-101 F0

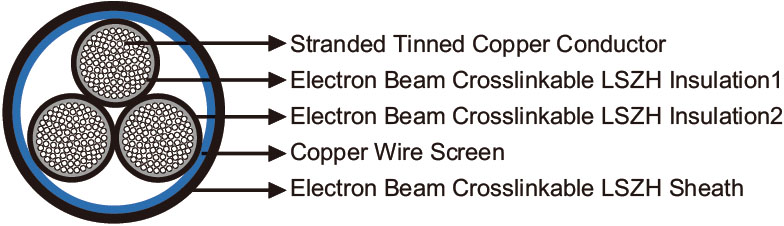

Construction

GKW Traction & High Temperature Cables 3GKW-DW/S EMC 0.6/1KV Dual Wall Screened Multicore
Conductors Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.
Insulation1 Electron beam crosslinkable LSZH compound.
Insulation2 Electron beam crosslinkable LSZH compound.
Screen Copper wire screen.
Sheath Electron beam crosslinkable LSZH compound.

Electrical Characteristics at 20 °C

Nominal Conductor Cross Section mm^2 0.25 0.5 0.75 1 1.5 2.5
Maximum Conductor Resistance Ω/km 88.5 40.1 26.7 20.0 13.7 8.21
Voltage Rating KV 0.6/1

Mechanical and Thermal Properties

Minimum Bending Radius 4xOD (Static); 8xOD (Flexing)
Temperature Range -60℃ ~+120℃ (Static); -40℃ ~+90℃ (Flexing)
Short Circuit Temperature +280℃

Dimensions and Weight

No. of cores& Nominal Conductor Cross Sectional Area Number and Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
No.×mm^2 No./mm mm mm kg/km
2×0.5 19/0.18 16/0.20 0.2 4.0 24
3×0.5 19/0.18 16/0.20 0.2 4.2 30
5×0.5 19/0.18 16/0.20 0.2 5.0 43
6×0.5 19/0.18 16/0.20 0.2 5.4 51
9×0.5 19/0.18 16/0.20 0.2 6.7 64
12×0.5 19/0.18 16/0.20 0.2 6.9 89
16×0.5 19/0.18 16/0.20 0.2 7.8 115
25×0.5 19/0.18 16/0.20 0.2 9.5 170
30×0.5 19/0.18 16/0.20 0.2 10.1 204
2×2×0.5 19/0.18 16/0.20 0.2 5.8 50
2×0.75 19/0.22 24/0.20 0.2 4.4 32
4×0.75 19/0.22 24/0.20 0.2 5.0 49
9×0.75 19/0.22 24/0.20 0.2 7.7 106
14×0.75 19/0.22 24/0.20 0.2 8.4 140
27×0.75 19/0.22 24/0.20 0.2 11.3 268
36×0.75 19/0.22 24/0.20 0.2 12.8 360
3×1.0 19/0.25 32/0.20 0.2 5.0 45
4×1.0 19/0.25 32/0.20 0.2 5.5 60
6×1.0 19/0.25 32/0.20 0.2 6.6 88
12×1.0 19/0.25 32/0.20 0.2 8.6 160
14×1.0 19/0.25 32/0.20 0.2 9.1 174
20×1.0 19/0.25 32/0.20 0.2 11.2 255
50×1.0 19/0.25 32/0.20 0.2 16.8 620
2×1.5 37/0.22 30/0.25 0.3 5.4 55
5×1.5 37/0.22 30/0.25 0.3 7.1 110
7×1.5 37/0.22 30/0.25 0.3 8.4 150
10×1.5 37/0.22 30/0.25 0.3 9.9 170
16×1.5 37/0.22 30/0.25 0.3 11.7 310
18×1.5 37/0.22 30/0.25 0.3 12.4 350
24×1.5 37/0.22 30/0.25 0.3 14.4 450
30×1.5 37/0.22 30/0.25 0.3 15.6 560
50×1.5 37/0.22 30/0.25 0.3 20.1 868
3×2.5 37/0.29 50/0.25 0.3 7.0 105
6×2.5 37/0.29 50/0.25 0.3 9.6 200
12×2.5 37/0.29 50/0.25 0.3 12.6 360
18×2.5 37/0.29 50/0.25 0.3 15.3 545
24×2.5 37/0.29 50/0.25 0.3 17.8 695
27×2.5 37/0.29 50/0.25 0.3 18.2 780
30×2.5 37/0.29 50/0.25 0.3 19.3 870
36×2.5 37/0.29 50/0.25 0.3 21.0 1050
5×0.75 19/0.22 24/0.20 0.2 6.1 75
6×0.75 19/0.22 24/0.20 0.2 6.6 85
7×0.75 19/0.22 24/0.20 0.2 7.2 100
8×0.75 19/0.22 24/0.20 0.2 7.7 113
10×0.75 19/0.22 24/0.20 0.2 8.1 130
12×0.75 19/0.22 24/0.20 0.2 8.4 150
14×0.75 19/0.22 24/0.20 0.2 9.1 169
16×0.75 19/0.22 24/0.20 0.2 9.7 206
18×0.75 19/0.22 24/0.20 0.2 10.1 230
20×0.75 19/0.22 24/0.20 0.2 11.1 256
24×0.75 19/0.22 24/0.20 0.2 12.0 294
25×0.75 19/0.22 24/0.20 0.2 12.3 300
2×2×0.75 19/0.22 24/0.20 0.2 7.1 85
3×2×0.75 19/0.22 24/0.20 0.2 7.6 109
4×2×0.75 19/0.22 24/0.20 0.2 9.9 143
5×2×0.75 19/0.22 24/0.20 0.2 10.7 182
6×2×0.75 19/0.22 24/0.20 0.2 11.9 226
7×2×0.75 19/0.22 24/0.20 0.2 13.2 279
8×2×0.75 19/0.22 24/0.20 0.2 13.4 291
10×2×0.75 19/0.22 24/0.20 0.2 14.8 333
3×3×0.75 19/0.22 24/0.20 0.2 8.9 151
5×4×0.75 19/0.22 24/0.20 0.2 12.8 288
2×1.0 19/0.25 32/0.20 0.2 5.0 50
3×1.0 19/0.25 32/0.20 0.2 5.5 60
4×1.0 19/0.25 32/0.20 0.2 5.8 72
5×1.0 19/0.25 32/0.20 0.2 6.6 88
6×1.0 19/0.25 32/0.20 0.2 7.3 114
7×1.0 19/0.25 32/0.20 0.2 7.9 133
8×1.0 19/0.25 32/0.20 0.2 8.5 150
9×1.0 19/0.25 32/0.20 0.2 8.9 160
10×1.0 19/0.25 32/0.20 0.2 8.9 168
12×1.0 19/0.25 32/0.20 0.2 9.2 188
16×1.0 19/0.25 32/0.20 0.2 10.5 250
18×1.0 19/0.25 32/0.20 0.2 11.2 275
25×1.0 19/0.25 32/0.20 0.2 12.7 355
27×1.0 19/0.25 32/0.20 0.2 13.3 395
30×1.0 19/0.25 32/0.20 0.2 13.8 450
36×1.0 19/0.25 32/0.20 0.2 15.1 530
42×1.0 19/0.25 32/0.20 0.2 16.3 604
50×1.0 19/0.25 32/0.20 0.2 17.8 690
2×2×1.0 19/0.25 32/0.20 0.2 7.8 107
4×2×1.0 19/0.25 32/0.20 0.2 9.4 128
6×2×1.0 19/0.25 32/0.20 0.2 11.6 239
12×2×1.0 19/0.25 32/0.20 0.2 14.3 400
4×3×1.0 19/0.25 32/0.20 0.2 11.5 230
3×4×1.0 19/0.25 32/0.20 0.2 11.3 245
4×4×1.0 19/0.25 32/0.20 0.2 12.5 265
2×1.5 37/0.22 30/0.25 0.3 5.8 70
3×1.5 37/0.22 30/0.25 0.3 6.1 81
4×1.5 37/0.22 30/0.25 0.3 6.7 100
5×1.5 37/0.22 30/0.25 0.3 7.7 134
6×1.5 37/0.22 30/0.25 0.3 8.3 153
7×1.5 37/0.22 30/0.25 0.3 9.1 184
8×1.5 37/0.22 30/0.25 0.3 10.3 222
9×1.5 37/0.22 30/0.25 0.3 10.5 234
10×1.5 37/0.22 30/0.25 0.3 10.5 240
12×1.5 37/0.22 30/0.25 0.3 10.9 268
16×1.5 37/0.22 30/0.25 0.3 12.5 364
18×1.5 37/0.22 30/0.25 0.3 13.2 405
25×1.5 37/0.22 30/0.25 0.3 15.8 562
48×1.5 37/0.22 30/0.25 0.3 20.7 988
2×2×1.5 37/0.22 30/0.25 0.3 9.2 153
3×2×1.5 37/0.22 30/0.25 0.3 9.8 205
7×2×1.5 37/0.22 30/0.25 0.3 12.6 330
2×2.5 37/0.29 50/0.25 0.3 7.0 105
3×2.5 37/0.29 50/0.25 0.3 7.6 130
4×2.5 37/0.29 50/0.25 0.3 8.4 170
5×2.5 37/0.29 50/0.25 0.3 9.4 190
6×2.5 37/0.29 50/0.25 0.3 10.3 225
7×2.5 37/0.29 50/0.25 0.3 11.4 270
8×2.5 37/0.29 50/0.25 0.3 12.6 343
10×2.5 37/0.29 50/0.25 0.3 13.2 370
12×2.5 37/0.29 50/0.25 0.3 13.6 420
16×2.5 37/0.29 50/0.25 0.3 15.6 560
18×2.5 37/0.29 50/0.25 0.3 16.6 620
25×2.5 37/0.29 50/0.25 0.3 19.3 834
27×2.5 37/0.29 50/0.25 0.3 20.5 870
48×2.5 37/0.29 50/0.25 0.3 25.6 1560
