3GKW-MW/S EMC 0.6/1KV Medium Wall Screened Multicore

Applications

Multi core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

Standards

  • EN45545-2
  • BS 6853 -1a
  • DIN 5510-2 1-4
  • NFF 16-101 F0

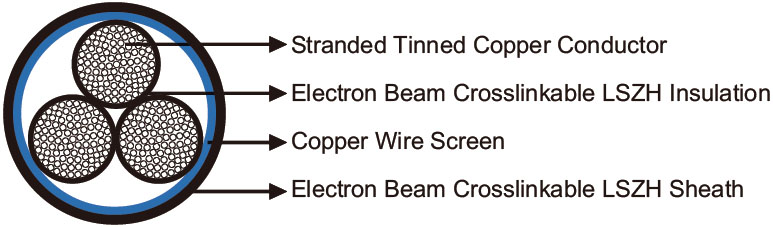

Construction

GKW Traction & High Temperature Cables 3GKW-MW/S EMC 0.6/1KV Medium Wall Screened Multicore
Conductors Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.
Insulation Electron beam crosslinkable LSZH compound.
Screen Copper wire screen.
Sheath Electron beam crosslinkable LSZH compound.

Electrical Characteristics at 20 °C

Nominal Conductor Cross Section mm^2 1.5 2.5 4.0 6.0 10 16 25 35 50
Maximum Conductor Resistance Ω/km 13.7 8.21 5.09 3.39 1.95 1.24 0.795 0.565 0.393
Voltage Rating KV 0.6/1

Mechanical and Thermal Properties

Minimum Bending Radius 4xOD (Static); 8xOD (Flexing)
Temperature Range -60℃ ~+120℃ (Static); -40℃ ~+90℃ (Flexing)
Short Circuit Temperature +280℃

Dimensions and Weight

No. of cores& Nominal Conductor Cross Sectional Area Number and Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
No.×mm^2 No./mm mm mm kg/km
2×0.5 19/0.18 16/0.20 0.5 6.6 68
3×0.5 19/0.18 16/0.20 0.5 6.9 75
4×0.5 19/0.18 16/0.20 0.5 7.5 81
5×0.5 19/0.18 16/0.20 0.5 8.2 93
6×0.5 19/0.18 16/0.20 0.5 8.8 111
7×0.5 19/0.18 16/0.20 0.5 9.8 125
8×0.5 19/0.18 16/0.20 0.5 10.3 143
9×0.5 19/0.18 16/0.20 0.5 10.8 149
10×0.5 19/0.18 16/0.20 0.5 11.0 154
12×0.5 19/0.18 16/0.20 0.5 12.3 175
14×0.5 19/0.18 16/0.20 0.5 13.0 198
15×0.5 19/0.18 16/0.20 0.5 13.4 210
16×0.5 19/0.18 16/0.20 0.5 13.7 223
20×0.5 19/0.18 16/0.20 0.5 14.0 274
24×0.5 19/0.18 16/0.20 0.5 14.2 310
27×0.5 19/0.18 16/0.20 0.5 14.5 343
9×2×0.5 19/0.18 16/0.20 0.5 20.6 540
2×0.75 19/0.21 24/0.20 0.5 7.2 80
3×0.75 19/0.21 24/0.20 0.5 7.5 90
4×0.75 19/0.21 24/0.20 0.5 8.3 116
5×0.75 19/0.21 24/0.20 0.5 9.1 133
6×0.75 19/0.21 24/0.20 0.5 9.9 165
7×0.75 19/0.21 24/0.20 0.5 10.7 186
8×0.75 19/0.21 24/0.20 0.5 11.5 194
9×0.75 19/0.21 24/0.20 0.5 12.3 220
10×0.75 19/0.21 24/0.20 0.5 12.6 250
12×0.75 19/0.21 24/0.20 0.5 13.2 278
14×0.75 19/0.21 24/0.20 0.5 13.8 300
16×0.75 19/0.21 24/0.20 0.5 14.4 348
20×0.75 19/0.21 24/0.20 0.5 14.5 354
24×0.75 19/0.21 24/0.20 0.5 15.6 401
27×0.75 19/0.21 24/0.20 0.5 16.3 459
5×2×0.75 19/0.21 24/0.20 0.5 16.0 350
2×1.0 32/0.20 0.55 7.4 93
3×1.0 32/0.20 0.55 8.1 114
4×1.0 32/0.20 0.55 8.8 140
5×1.0 32/0.20 0.55 9.8 158
6×1.0 32/0.20 0.55 10.8 170
7×1.0 32/0.20 0.55 11.8 189
8×1.0 32/0.20 0.55 11.8 219
9×1.0 32/0.20 0.55 12.0 223
10×1.0 32/0.20 0.55 12.2 234
12×1.0 32/0.20 0.55 12.5 268
14×1.0 32/0.20 0.55 13.2 305
16×1.0 32/0.20 0.55 13.9 339
20×1.0 32/0.20 0.55 15.6 430
24×1.0 32/0.20 0.55 17.1 511
27×1.0 32/0.20 0.55 17.7 560
2×1.5 30/0.25 0.55 8.1 114
3×1.5 30/0.25 0.55 8.6 124
4×1.5 30/0.25 0.55 9.9 139
5×1.5 30/0.25 0.55 10.9 150
6×1.5 30/0.25 0.55 11.7 173
7×1.5 30/0.25 0.55 13.2 203
8×1.5 30/0.25 0.55 14.6 243
9×1.5 30/0.25 0.55 14.9 274
10×1.5 30/0.25 0.55 15.5 299
12×1.5 30/0.25 0.55 16.2 342
14×1.5 30/0.25 0.55 16.8 390
16×1.5 30/0.25 0.55 17.5 560
20×1.5 30/0.25 0.55 17.6 614
24×1.5 30/0.25 0.55 19.3 670
27×1.5 30/0.25 0.55 19.9 734
6×2×1.5 30/0.25 0.55 18.9 540
2×2.5 50/0.25 0.6 9.6 160
3×2.5 50/0.25 0.6 10.5 200
4×2.5 50/0.25 0.6 11.3 220
5×2.5 50/0.25 0.6 12.7 250
6×2.5 50/0.25 0.6 13.7 345
7×2.5 50/0.25 0.6 14.8 400
8×2.5 50/0.25 0.6 14.9 410
9×2.5 50/0.25 0.6 16.0 437
10×2.5 50/0.25 0.6 16.0 461
12×2.5 50/0.25 0.6 16.8 531
14×2.5 50/0.25 0.6 17.7 601
16×2.5 50/0.25 0.6 19.0 691
20×2.5 50/0.25 0.6 23.3 969
24×2.5 50/0.25 0.6 23.5 1004
27×2.5 50/0.25 0.6 24.0 1104
2×4 56/0.30 0.65 10.8 216
3×4 56/0.30 0.65 11.8 260
4×4 56/0.30 0.65 13.3 345
5×4 56/0.30 0.65 14.7 440
5×4 56/0.30 0.65 14.7 460
5×4 56/0.30 0.65 15.7 485
5×4 56/0.30 0.65 17.2 584
5×4 56/0.30 0.65 18.3 605
5×4 56/0.30 0.65 18.3 641
12×4 56/0.30 0.65 19.5 760
2×6 84/0.30 0.7 12.1 291
3×6 84/0.30 0.7 13.8 370
4×6 84/0.30 0.7 16.3 458
5×6 84/0.30 0.7 17.4 620
6×6 84/0.30 0.7 17.4 640
7×6 84/0.30 0.7 17.8 673
8×6 84/0.30 0.7 19.4 774
9×6 84/0.30 0.7 20.7 820
10×6 84/0.30 0.7 20.7 875
12×6 84/0.30 0.7 21.8 1026
2×10 80/0.40 0.8 14.3 432
3×10 80/0.40 0.8 17.1 580
4×10 80/0.40 0.8 19.2 750
5×10 80/0.40 0.8 21.1 850
6×10 80/0.40 0.8 21.9 875
7×10 80/0.40 0.8 22.8 1019
8×10 80/0.40 0.8 23.7 1190
2×16 119/0.40 126/0.40 0.9 18.2 660
3×16 119/0.40 126/0.40 0.9 20.5 820
4×16 119/0.40 126/0.40 0.9 20.4 874
5×16 119/0.40 126/0.40 0.9 22.7 1083
6×16 119/0.40 126/0.40 0.9 24.9 1294
7×16 119/0.40 126/0.40 0.9 27.1 1521
8×16 119/0.40 126/0.40 0.9 29.6 1808
2×25 182/0.40 196/0.40 1.0 22.9 990
3×25 182/0.40 196/0.40 1.0 24.4 1075
4×25 182/0.40 196/0.40 1.0 25.2 1404
5×25 182/0.40 196/0.40 1.0 27.0 1750
3×35 266/0.40 276/0.40 1.1 27.9 1600
6×35 266/0.40 276/0.40 1.1 39.7 3350
2×50 378/0.40 396/0.40 1.2 29.8 1760
