3GKW-MW/S 0.6/1KV Medium Wall Multicore

Applications

Multi core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

Standards

  • EN45545-2
  • BS 6853 -1a
  • DIN 5510-2 1-4
  • NFF 16-101 F0

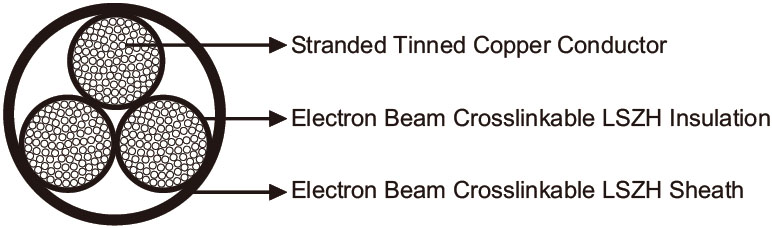

Construction

GKW Traction & High Temperature Cables 3GKW-MW/S 0.6/1KV Medium Wall Multicore
Conductors Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.
Insulation Electron beam crosslinkable LSZH compound.
Sheath Electron beam crosslinkable LSZH compound.

Electrical Characteristics at 20 °C

Nominal Conductor Cross Section mm^2 0.5 0.75 1 1.5 2.5 4.0 6.0 10 16 25 35
Maximum Conductor Resistance Ω/km 40.1 26.7 20.0 13.7 8.21 5.09 3.39 1.95 1.24 0.795 0.565
Voltage Rating KV 0.6/1

Mechanical and Thermal Properties

Minimum Bending Radius 4xOD (Static); 6xOD (Flexing)
Temperature Range -60℃ ~+120℃ (Static); -40℃ ~+90℃ (Flexing)
Short Circuit Temperature +280℃

Dimensions and Weight

No. of cores& Nominal Conductor Cross Sectional Area Number and Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
No.×mm^2 No./mm mm mm kg/km
2×0.5 19/0.18 16/0.20 0.5 5.9 39
3×0.5 19/0.18 16/0.20 0.5 6.1 50
4×0.5 19/0.18 16/0.20 0.5 7.0 55
5×0.5 19/0.18 16/0.20 0.5 7.3 74
6×0.5 19/0.18 16/0.20 0.5 7.5 85
7×0.5 19/0.18 16/0.20 0.5 9.1 99
8×0.5 19/0.18 16/0.20 0.5 9.3 111
9×0.5 19/0.18 16/0.20 0.5 9.5 114
10×0.5 19/0.18 16/0.20 0.5 9.5 122
12×0.5 19/0.18 16/0.20 0.5 10.0 145
14×0.5 19/0.18 16/0.20 0.5 10.5 163
16×0.5 19/0.18 16/0.20 0.5 11.2 185
18×0.5 19/0.18 16/0.20 0.5 12.7 205
20×0.5 19/0.18 16/0.20 0.5 13.0 233
24×0.5 19/0.18 16/0.20 0.5 13.9 264
27×0.5 19/0.18 16/0.20 0.5 14.5 295
36×0.5 19/0.18 16/0.20 0.5 16.3 386
48×0.5 19/0.18 16/0.20 0.5 19.0 516
2×0.75 19/0.21 24/0.20 0.5 6.0 49
3×0.75 19/0.21 24/0.20 0.5 6.8 63
4×0.75 19/0.21 24/0.20 0.5 6.9 77
5×0.75 19/0.21 24/0.20 0.5 8.4 96
6×0.75 19/0.21 24/0.20 0.5 8.7 107
7×0.75 19/0.21 24/0.20 0.5 9.1 131
8×0.75 19/0.21 24/0.20 0.5 10.9 147
9×0.75 19/0.21 24/0.20 0.5 11.3 152
10×0.75 19/0.21 24/0.20 0.5 11.6 162
12×0.75 19/0.21 24/0.20 0.5 11.9 175
14×0.75 19/0.21 24/0.20 0.5 12.1 213
16×0.75 19/0.21 24/0.20 0.5 12.4 241
20×0.75 19/0.21 24/0.20 0.5 15.2 325
24×0.75 19/0.21 24/0.20 0.5 15.6 349
27×0.75 19/0.21 24/0.20 0.5 16.1 385
36×0.75 19/0.21 24/0.20 0.5 18.1 505
48×0.75 19/0.21 24/0.20 0.5 21.2 678
2×1.0 32/0.20 0.55 6.4 59
3×1.0 32/0.20 0.55 6.8 78
4×1.0 32/0.20 0.55 7.4 93
5×1.0 32/0.20 0.55 8.3 115
6×1.0 32/0.20 0.55 10.0 130
7×1.0 32/0.20 0.55 10.3 158
8×1.0 32/0.20 0.55 10.7 181
9×1.0 32/0.20 0.55 12.5 200
10×1.0 32/0.20 0.55 12.7 210
12×1.0 32/0.20 0.55 12.9 234
14×1.0 32/0.20 0.55 13.2 265
16×1.0 32/0.20 0.55 13.5 300
20×1.0 32/0.20 0.55 14.7 377
24×1.0 32/0.20 0.55 16.9 433
25×1.0 32/0.20 0.55 18.7 519
27×1.0 32/0.20 0.55 19.0 600
36×1.0 32/0.20 0.55 19.9 644
48×1.0 32/0.20 0.55 22.9 837
2×1.5 30/0.25 0.55 7.5 75
3×1.5 30/0.25 0.55 8.0 96
4×1.5 30/0.25 0.55 8.3 120
5×1.5 30/0.25 0.55 10.2 146
6×1.5 30/0.25 0.55 11.6 173
7×1.5 30/0.25 0.55 12.1 185
8×1.5 30/0.25 0.55 12.5 207
9×1.5 30/0.25 0.55 12.9 210
10×1.5 30/0.25 0.55 13.3 236
12×1.5 30/0.25 0.55 14.2 305
14×1.5 30/0.25 0.55 14.6 346
16×1.5 30/0.25 0.55 15.0 393
20×1.5 30/0.25 0.55 16.5 500
24×1.5 30/0.25 0.55 19.1 582
27×1.5 30/0.25 0.55 19.7 644
36×1.5 30/0.25 0.55 23.0 905
48×1.5 30/0.25 0.55 25.7 1120
2×2.5 50/0.25 0.6 8.5 115
3×2.5 50/0.25 0.6 8.9 149
4×2.5 50/0.25 0.6 9.9 183
5×2.5 50/0.25 0.6 11.1 228
6×2.5 50/0.25 0.6 12.1 265
7×2.5 50/0.25 0.6 13.0 309
8×2.5 50/0.25 0.6 14.3 360
9×2.5 50/0.25 0.6 15.4 366
10×2.5 50/0.25 0.6 15.1 400
12×2.5 50/0.25 0.6 15.9 467
14×2.5 50/0.25 0.6 16.5 532
16×2.5 50/0.25 0.6 17.5 600
20×2.5 50/0.25 0.6 20.1 777
24×2.5 50/0.25 0.6 21.4 873
27×2.5 50/0.25 0.6 22.5 972
2×4 56/0.30 0.65 9.5 151
3×4 56/0.30 0.65 10.2 207
4×4 56/0.30 0.65 11.3 261
5×4 56/0.30 0.65 12.6 324
6×4 56/0.30 0.65 13.9 379
7×4 56/0.30 0.65 15.2 433
8×4 56/0.30 0.65 16.3 518
9×4 56/0.30 0.65 17.5 550
10×4 56/0.30 0.65 17.7 581
12×4 56/0.30 0.65 18.3 675
14×4 56/0.30 0.65 19.2 785
16×4 56/0.30 0.65 20.4 886
20×4 56/0.30 0.65 23.0 1129
24×4 56/0.30 0.65 24.7 1276
27×4 56/0.30 0.65 26.1 1435
2×6 84/0.30 0.7 10.7 205
3×6 84/0.30 0.7 11.4 279
4×6 84/0.30 0.7 12.6 353
5×6 84/0.30 0.7 14.0 436
6×6 84/0.30 0.7 15.7 501
7×6 84/0.30 0.7 17.2 597
2×10 80/0.40 0.8 12.8 313
3×10 80/0.40 0.8 13.7 433
4×10 80/0.40 0.8 15.4 514
5×10 80/0.40 0.8 17.0 641
6×10 80/0.40 0.8 19.1 794
7×10 80/0.40 0.8 20.7 919
2×16 119/0.40 126/0.40 0.9 16.5 482
3×16 119/0.40 126/0.40 0.9 17.6 590
4×16 119/0.40 126/0.40 0.9 19.8 787
5×16 119/0.40 126/0.40 0.9 22.1 992
6×16 119/0.40 126/0.40 0.9 24.3 1192
7×16 119/0.40 126/0.40 0.9 26.5 1409
2×25 182/0.40 196/0.40 1.0 19.9 716
3×25 182/0.40 196/0.40 1.0 21.4 899
4×25 182/0.40 196/0.40 1.0 23.8 1182
5×25 182/0.40 196/0.40 1.0 26.4 1482
6×25 182/0.40 196/0.40 1.0 29.9 1818
7×25 182/0.40 196/0.40 1.0 32.1 2128
2×35 266/0.40 276/0.40 1.1 22.3 775
3×35 266/0.40 276/0.40 1.1 24.0 938
4×35 266/0.40 276/0.40 1.1 26.7 1230
5×35 266/0.40 276/0.40 1.1 29.6 1543
6×35 266/0.40 276/0.40 1.1 33.3 1890
7×35 266/0.40 276/0.40 1.1 36.7 2263
