4GKW-AXplus-DW/S EMC 1.8/3KV Dual Wall Screened Multicore

Applications

Multi core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

Standards

  • EN45545-2
  • BS 6853 -1a
  • DIN 5510-2 1-4
  • NFF 16-101 F0

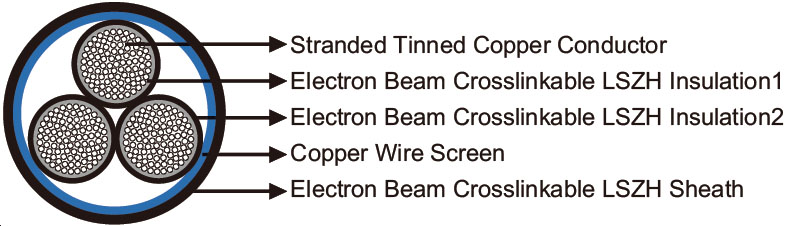

Construction

GKW Traction & High Temperature Cables 4GKW-AXplus-DW/S EMC 1.8/3KV Dual Wall Screened Multicore
Conductors Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.
Insulation1 Electron beam crosslinkable LSZH compound.
Insulation2 Electron beam crosslinkable LSZH compound.
Screen Copper wire screen.
Sheath Electron beam crosslinkable LSZH compound.

Electrical Characteristics at 20 °C

Nominal Conductor Cross Section mm^2 1.5 2.5 4.0 6.0 10 16 25 35
Maximum Conductor Resistance Ω/km 13.7 8.21 5.09 3.39 1.95 1.24 0.795 0.565
Voltage Rating KV 1.8/3.0

Mechanical and Thermal Properties

Minimum Bending Radius 4xOD (Static); 8xOD (Flexing)
Temperature Range -60℃ ~+120℃ (Static); -40℃ ~+90℃ (Flexing)
Short Circuit Temperature +280℃

Dimensions and Weight

No. of cores& Nominal Conductor Cross Sectional Area Number and Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
No.×mm^2 No./mm mm mm kg/km
2×1.5 30/0.25 0.8 9.2 135
3×1.5 30/0.25 0.8 10.0 164
6×1.5 30/0.25 0.8 13.8 315
3×2.5 50/0.25 0.9 11.4 225
4×4 56/0.30 1.0 15.4 427
3×10 80/0.40 1.2 18.2 648
3×16 119/0.40 126/0.40 1.5 23.1 900
3×25 182/0.40 196/0.40 1.8 28.4 1520
4×25 182/0.40 196/0.40 1.8 34.1 1869
2×35 266/0.40 276/0.40 2.0 29.8 1580
3×35 266/0.40 276/0.40 2.0 31.6 1970
4×35 266/0.40 276/0.40 2.0 37.0 2102
