4GKW-AXplus-DW EMC 1.8/3KV Dual Wall Screened Single Core

Applications

Single core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

Standards

  • EN45545-2
  • BS 6853 -1a
  • DIN 5510-2 1-4
  • NFF 16-101 F0

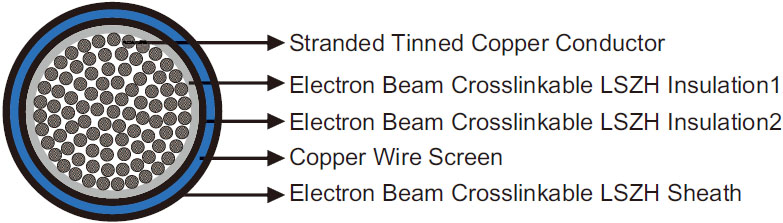

Construction

GKW Traction & High Temperature Cables 4GKW-AXplus-DW EMC 1.8/3KV Dual Wall Screened Single Core
Conductors Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.
Insulation1 Electron beam crosslinkable LSZH compound.
Insulation2 Electron beam crosslinkable LSZH compound.
Screen Copper wire screen.
Sheath Electron beam crosslinkable LSZH compound.

Electrical Characteristics at 20 °C

Nominal Conductor Cross Section mm^2 1.5 2.5 4.0 6.0 10 16 25 35 50
Maximum Conductor Resistance Ω/km 13.7 8.21 5.09 3.39 1.95 1.24 0.795 0.565 0.393
Voltage Rating KV 1.8/3.0



Nominal Conductor Cross Section mm^2 70 95 120 150 185 240 300 400
Maximum Conductor Resistance Ω/km 0.277 0.21 0.164 0.132 0.108 0.0817 0.0654 0.0495
Voltage Rating KV 1.8/3.0

Mechanical and Thermal Properties

Minimum Bending Radius 4xOD (Static); 8xOD (Flexing)
Temperature Range -60℃ ~+120℃ (Static); -40℃ ~+90℃ (Flexing)
Short Circuit Temperature +280℃

Dimensions and Weight

No. of cores& Nominal Conductor Cross Sectional Area Number and Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
No.×mm^2 No./mm mm mm kg/km
1×1.0 32/0.20 0.7 4.6 38
1×1.5 30/0.25 0.8 5.2 47
1×2.5 50/0.25 0.9 5.8 63
1×4 56/0.30 1.0 6.7 89
1×6 84/0.30 1.1 7.4 123
1×10 80/0.40 1.2 9.0 178
1×16 119/0.41 126/0.40 1.5 11.2 280
1×25 182/0.41 196/0.40 1.8 13.4 371
1×35 266/0.41 276/0.40 2.0 14.8 492
1×50 378/0.41 396/0.40 2.2 16.8 693
1×70 348/0.51 360/0.50 2.1 19.0 913
1×95 444/0.51 475/0.50 2.3 20.7 1160
1×120 551/0.51 608/0.50 2.4 23.4 1441
1×150 722/0.51 756/0.50 2.6 25.9 1730
1×185 874/0.52 925/0.50 2.8 27.8 2088
1×240 1147/0.51 1221/0.50 2.9 31.2 2908
1×300 1443/0.51 1525/0.50 3.0 34.2 3375
1×400 1887/0.50 2013/0.50 3.4 37.1 4250
