FRA 155/S Multicore
Applications
Multicore cable very high resistance to temperature designed for internal wiring in lamps, heating appliances and distribution boxes in apparatus, mechanical and plant engineering, etc. Used for fixed and flexible application in dry, humid and wet rooms.
Standards
- EN45545-2
- IEC 60332-1, EN 50265-2-1 (flame retardant)
- EN 50266-2 (non-flame propagating)

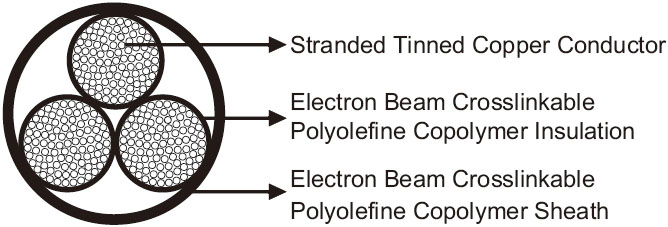

Construction
| Conductors |
Class 5 stranded tinned copper to IEC60228/VDE 0295. |
| Insulation |
Electron beam crosslinkable polyolefine copolymer. |
| Sheath |
Electron beam crosslinkable polyolefine copolymer. |
Electrical Characteristics at 20 °C
| Nominal Conductor Cross Section |
mm^2 |
0.25 |
0.50 |
0.75 |
1.0 |
1.5 |
2.5 |
| Maximum Conductor Resistance |
Ω/km |
85.9 |
40.1 |
26.7 |
20.0 |
13.7 |
8.21 |
| Voltage Rating |
V |
450/750V (≤0.5mm^2); 600/1000V (>0.5mm^2) |
Mechanical and Thermal Properties
| Minimum Bending Radius |
4xOD (Static); 6xOD (Flexing) |
| Temperature Range |
-55℃ ~+155℃ (Static); -40℃ ~+120℃ (Flexing) |
| Short Circuit Temperature |
+280℃ |
Dimensions and Weight
| No. of cores& Nominal Conductor Cross Sectional Area |
Number and Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Overall Diameter |
Nominal Weight |
| No.×mm^2 |
No./mm |
mm |
mm |
kg/km |
| 4×0.25 |
19/0.13 |
0.5 |
5.4 |
33 |
| 3×0.34 |
19/0.15 |
0.5 |
5.1 |
28 |
| 2×0.5 |
19/0.18 |
0.5 |
5.2 |
30 |
| 3×0.5 |
19/0.18 |
0.5 |
5.6 |
40 |
| 8×0.5 |
19/0.18 |
0.5 |
8.8 |
102 |
| 16×0.5 |
19/0.18 |
0.5 |
10.4 |
166 |
| 3×0.75 |
24/0.20 |
0.6 |
6.7 |
59 |
| 4×0.75 |
24/0.20 |
0.6 |
7.5 |
80 |
| 2×1 |
32/0.20 |
0.6 |
7.0 |
61 |
| 3×1 |
32/0.20 |
0.6 |
7.6 |
77 |
| 2×1.5 |
30/0.25 |
0.6 |
7.5 |
66 |
| 3×1.5 |
30/0.25 |
0.6 |
7.9 |
92 |
| 4×1.5 |
30/0.25 |
0.6 |
8.8 |
117 |
| 5×1.5 |
30/0.25 |
0.6 |
10.1 |
150 |
| 3×2.5 |
50/0.25 |
0.7 |
9.9 |
145 |
| 4×2.5 |
50/0.25 |
0.7 |
11.0 |
186 |
| 5×2.5 |
50/0.25 |
0.7 |
12.0 |
223 |
| 5×1.5 |
30/0.25 |
0.6 |
10.1 |
150 |
| 3×2.5 |
50/0.25 |
0.7 |
9.9 |
145 |
| 4×2.5 |
50/0.25 |
0.7 |
11.0 |
186 |
| 5×2.5 |
50/0.25 |
0.7 |
12.0 |
223 |
