H05G-K / H07G-K

Application and Description

These cables are recommended for the internal wiring of switchboards and distributor boards as well as in operating parts in or on lights.

The higher temperature range allows for connections to heaters with an alternating nominal voltage of 1000V. or direct nominal voltage of 750V. These cables are all allowed for laying in tubes in and under plaster.

Standard and Approval

  • NF C 32-102-7
  • CE Low Voltage Directive 73/23/EEC and 93/68/EEC
  • ROHS compliant

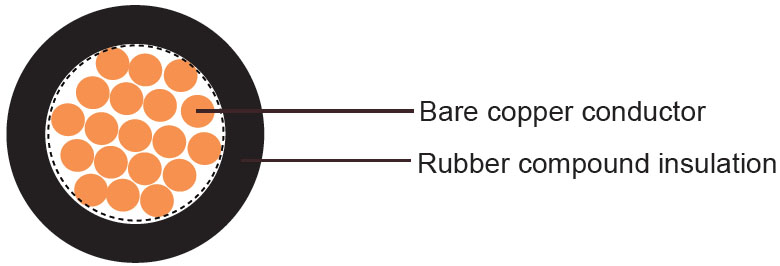

Cable Construction

H05G-K H07G-K
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7 insulation
Cores to VDE-0293 colors

Technical Characteristics

Working voltage 300/500v (H05G-K), 450/750v (H07G-K)
Test voltage 2000volts (H05G-K), 2500 volts (H07G-K)
Flexing bending radius 7 x O
Static bending radius 7 x O
Flexing temperature -25oC to +110oC
Static temperature -40oC to +110oC
Short circuit Temperature +160oC
Flame retardant NF C 32-070
Insulation resistance 10 MΩ x km

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
  # x mm^2 mm mm kg/km kg/km
H05G-K
20(16/32) 1 x 0.5 0.6 2.3 4.8 13
18(24/32) 1 x 0.75 0.6 2.6 7.2 16
17(32/32) 1 x 1 0.6 2.8 9.6 22
H07G-K
16(30/30) 1 x 1.5 0.8 3.4 14.4 24
14(50/30) 1 x 2.5 0.9 4.1 24 42
12(56/28) 1 x 4 1.0 5.1 38 61
10(84/28) 1 x 6 1.0 5.5 58 78
8(80/26) 1 x 10 1.2 6.8 96 130
6(128/26) 1 x 16 1.2 8.4 154 212
4(200/26) 1 x 25 1.4 9.9 240 323
2(280/26) 1 x 35 1.4 11.4 336 422
1(400/26) 1 x 50 1.6 13.2 480 527
2/0(356/24) 1 x 70 1.6 15.4 672 726
3/0(485/24) 1 x 95 1.8 17.2 912 937
4/0(614/24) 1 x 120 1.8 19.7 1152 1192
