H05GG-F
Application and Description
For general use in domestic premises, kitchens and offices and for supplying appliances where the cables are subjected to low mechanical stresses. Also for low temperature uses.(eg., cooking appliances, soldering irons, toasters)
Standard and Approval

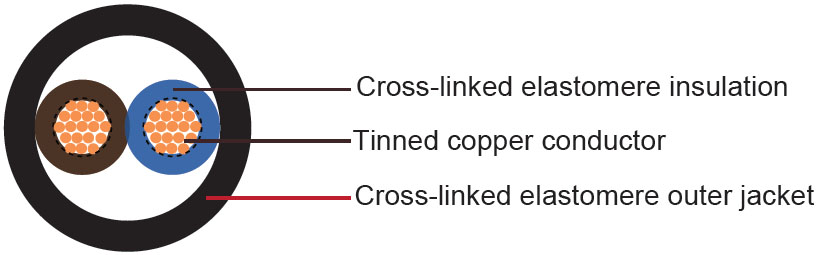

Cable Construction
| Fine tinned copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Cl-5 |
| Cross-linked elastomere E13 insulation |
| Color code VDE-0293-308 |
| Cross-linked elastomere EM 9 outer jacket - black |
Technical Characteristics
| Working voltage |
300/500V |
| Test voltage |
2000V |
| Flexing bending radius |
4×O |
| Static bending radius |
3×O |
| Temperature range |
-15°C to +110°C |
| Short circuit temperature |
200°C |
| Flame retardant |
NF C 32-070 |
| Halogen-free |
IEC 60754-1 |
| Low smoke |
IEC 60754-2 |
| Smoke density |
IEC 61034 |
Cable Parameter
| AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Thickness of sheath |
Nominal Overall Diameter |
Nominal Weight |
| |
# x mm^2 |
mm |
mm |
mm |
kg/Km |
| 18(24/32) |
2x0.75 |
0.6 |
0.8 |
6.3 |
53 |
| 17(32/32) |
2x1 |
0.6 |
0.9 |
6.8 |
64 |
| 16(30/30) |
2x1.5 |
0.8 |
1 |
8.3 |
95 |
| 14(50/30) |
2x2.5 |
0.9 |
1.1 |
9.8 |
140 |
| 18(24/32) |
3x0.75 |
0.6 |
0.9 |
6.8 |
65 |
| 17(32/32) |
3x1 |
0.6 |
0.9 |
7.2 |
77 |
| 16(30/30) |
3x1.5 |
0.8 |
1 |
8.8 |
115 |
| 14(50/30) |
3x2.5 |
0.9 |
1.1 |
10.4 |
170 |
| 12(56/28) |
3 x 4 |
1 |
1.2 |
12.2 |
240 |
| 10(84/28) |
3 x 6 |
1 |
1.4 |
13.6 |
320 |
| 18(24/32) |
4x0.75 |
0.6 |
0.9 |
7.4 |
80 |
| 17(32/32) |
4x1 |
0.6 |
0.9 |
7.8 |
95 |
| 16(30/30) |
4x1.5 |
0.8 |
1.1 |
9.8 |
145 |
| 14(50/30) |
4x2.5 |
0.9 |
1.2 |
11.5 |
210 |
| 12(56/28) |
4 x 4 |
1 |
1.3 |
13.5 |
300 |
| 10(84/28) |
4 x 6 |
1 |
1.5 |
15.4 |
405 |
| 18(24/32) |
5x0.75 |
0.6 |
1 |
8.3 |
100 |
| 17(32/32) |
5x1 |
0.6 |
1 |
8.7 |
115 |
| 16(30/30) |
5x1.5 |
0.8 |
1.1 |
10.7 |
170 |
| 14(50/30) |
5x2.5 |
0.9 |
1.3 |
12.8 |
255 |
