H05Z-K / H07Z-K
Application and Description
These cables are designed for the internal wiring of switchboards and distributor boards with an alternating nominal voltage up to 1000 Volts or a direct voltage up to 750 volts.
Generally install in pipes or ducts and internal wiring of appliances with maximum operating temperature of 90o C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment.
The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.
Standard and Approval
- NF C 32-102-9
- CE Low Voltage Directive 73/23/EEC and 93/68/EEC
- ROHS compliant

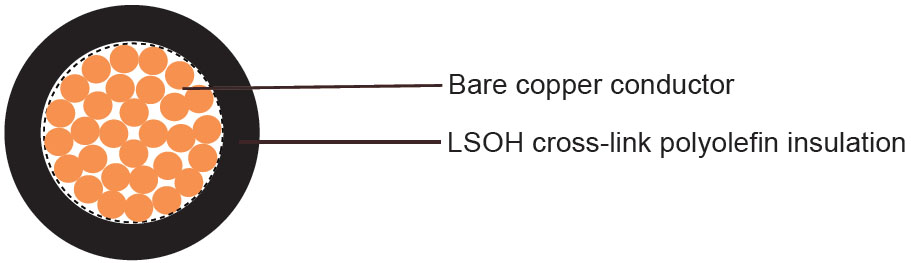

Cable Construction
| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 BS 6360 cl. 5, HD 383 |
| Cross-link polyolefin EI5 core insulation |
| LSOH - low smoke, zero halogen |
Technical Characteristics
| Working voltage |
300/500v (H05Z-K), 450/750v (H07Z-K) |
| Test voltage |
2500 volts |
| Flexing bending radius |
8 x O |
| Static bending radius |
8 x O |
| Flexing temperature |
-15oC to +90oC |
| Static temperature |
-40oC to +90oC |
| Flame retardant |
NF C 32-070 |
| Insulation resistance |
10 MΩ x km |
| Smoke density acc. to EN 50268 / IEC 61034 |
| Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2 |
| Flame test |
flame-retardant acc. to EN 50265-2-1, NF C 32-070 |
Cable Parameter
| AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
| |
# x mm^2 |
mm |
mm |
kg/km |
kg/km |
| H05Z-K |
| 20(16/32) |
1 x 0.5 |
0.6 |
2.3 |
4.8 |
9 |
| 18(24/32) |
1 x 0.75 |
0.6 |
2.5 |
7.2 |
12.4 |
| 17(32/32) |
1 x 1 |
0.6 |
2.6 |
9.6 |
15 |
| H07Z-K |
| 16(30/30) |
1 x 1.5 |
0,7 |
3.5 |
14.4 |
24 |
| 14(50/30) |
1 x 2.5 |
0,8 |
4 |
24 |
35 |
| 12(56/28) |
1 x 4 |
0,8 |
4.8 |
38 |
51 |
| 10(84/28) |
1 x 6 |
0,8 |
6 |
58 |
71 |
| 8(80/26) |
1 x 10 |
1,0 |
6.7 |
96 |
118 |
| 6(128/26) |
1 x 16 |
1,0 |
8.2 |
154 |
180 |
| 4(200/26) |
1 x 25 |
1,2 |
10.2 |
240 |
278 |
| 2(280/26) |
1 x 35 |
1,2 |
11.5 |
336 |
375 |
| 1(400/26) |
1 x 50 |
1,4 |
13.6 |
480 |
560 |
| 2/0(356/24) |
1 x 70 |
1,4 |
16 |
672 |
780 |
| 3/0(485/24) |
1 x 95 |
1,6 |
18.4 |
912 |
952 |
| 4/0(614/24) |
1 x 120 |
1,6 |
20.3 |
1152 |
1200 |
| 300 MCM (765/24) |
1 x 150 |
1,8 |
22.7 |
1440 |
1505 |
| 350 MCM (944/24) |
1 x 185 |
2,0 |
25.3 |
1776 |
1845 |
| 500MCM(1225/24) |
1 x 240 |
2,2 |
28.3 |
2304 |
2400 |
