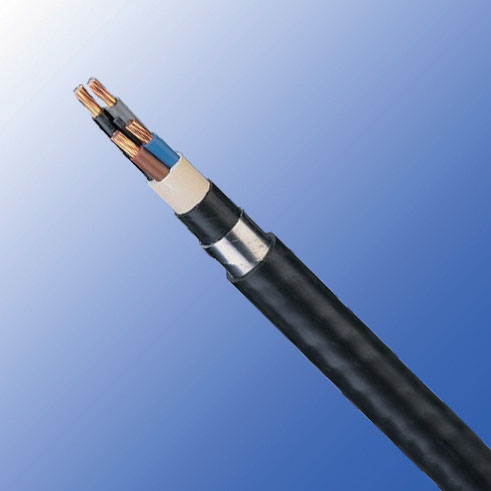

U-1000 ARVFV
Application and Description
With a sheath and armor, U-1000 ARVFV is an enhanced version of the cables and U-1000 AR2V. They can be used in all industrial installations requiring mechanical protection.
These cables can be provided in hard and SH C1 (NF C 32-323) and HR (resistant to aliphatic hydrocarbons). The design and characteristics of the materials comply with IEC 60502-1.
Standard and Approval

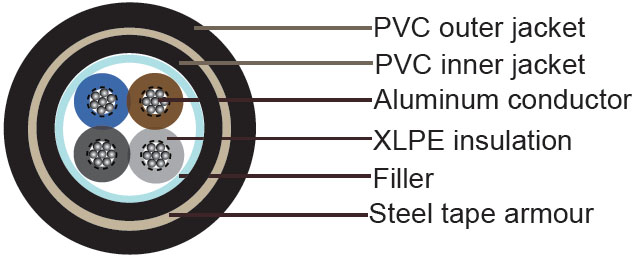

Cable Construction
| Aluminum conductor |
| Strands to IEC 60228 class 2 |
| XLPE insulation according to XP C 32-321 |
| Color codes to HD 308 S2(XP C 32-321) |
| Not fibrous and not hygroscopic filler |
| Not fibrous and not hygroscopic filler |
| Two steel tapes helically wraped armour |
| Flexible black PVC outer jacket |
Technical Characteristics
| Working Voltage |
600/1000 volts |
| Test voltage |
1000 volts |
| Minimum bending radius |
6 x O |
| Operation temperature rage |
-10 °C to 60 °C |
| Short-circuit temperature |
250 °C |
| Flame retardant |
NF C 32-070 C2 |
| Insulation resistance |
20 MΩ x km |
Cable Parameter
| AWG |
Cross Section |
Insulation thickness |
Amour thickness |
Minimum Sheath thickness |
Maximum Overall diameter |
Approx Cable weight |
| |
mm^2 |
mm |
mm |
mm |
mm |
kg/km |
| 8 |
2x10 |
0.7 |
0.2 |
1.4 |
18.5 |
420 |
| 6 |
2x16 |
0.7 |
0.2 |
1.5 |
20.5 |
540 |
| 4 |
2x25 |
0.9 |
0.2 |
1.6 |
24.5 |
760 |
| 2 |
2x35 |
0.9 |
0.2 |
1.7 |
27 |
930 |
| 8 |
3x10 |
0.7 |
0.2 |
1.5 |
19 |
470 |
| 6 |
3x16 |
0.7 |
0.2 |
1.5 |
22 |
590 |
| 4 |
3x25 |
0.9 |
0.2 |
1.6 |
26 |
830 |
| 2 |
3x35 |
0.9 |
0.2 |
1.7 |
29 |
1030 |
| 1 |
3x50 |
0.9 |
0.2 |
1.8 |
32.5 |
1290 |
| 2/0 |
3x70 |
1.1 |
0.2 |
2 |
37.5 |
1710 |
| 3/0 |
3x95 |
1.1 |
0.5 |
2.1 |
43.5 |
2610 |
| 4/0 |
3x120 |
1.2 |
0.5 |
2.3 |
47.5 |
3110 |
| 300MCM |
3x150 |
1.4 |
0.5 |
2.4 |
53 |
3770 |
| 500MCM |
3x185 |
1.6 |
0.5 |
2.5 |
58 |
4540 |
| 750MCM |
3x240 |
1.7 |
0.5 |
2.7 |
65.5 |
5620 |
| - |
3x300 |
1.8 |
0.5 |
2.9 |
72 |
6830 |
| 1 |
3x50+35 |
1.0/09 |
0.2 |
1.9 |
34.5 |
1500 |
| 2/0 |
3x70+50 |
1.1/0.9 |
0.2 |
2 |
40 |
2000 |
| 3/0 |
3x95+50 |
1.1/1.0 |
0.5 |
2.2 |
45 |
2870 |
| 4/0 |
3x120+70 |
1.2/1.1 |
0.5 |
2.3 |
50 |
3460 |
| 300MCM |
3x150+70 |
1.4/1.1 |
0.5 |
2.5 |
54 |
4090 |
| 500MCM |
3x185+70 |
1.6/1.1 |
0.5 |
2.6 |
59 |
4980 |
| 750MCM |
3x240+95 |
1.7/1.1 |
0.5 |
2.8 |
66 |
6210 |
| 8 |
4x10 |
0.7 |
0.2 |
1.5 |
20.5 |
540 |
| 6 |
4x16 |
0.7 |
0.2 |
1.6 |
23.5 |
700 |
| 4 |
4x25 |
0.9 |
0.2 |
1.7 |
28 |
1000 |
| 2 |
4x35 |
0.9 |
0.2 |
1.8 |
31.5 |
1230 |
| 1 |
4x50 |
1 |
0.2 |
1.9 |
35.5 |
1550 |
| 2/0 |
4x70 |
1.1 |
0.5 |
2.1 |
42.5 |
2490 |
| 3/0 |
4x95 |
1.1 |
0.5 |
2.3 |
47.5 |
3120 |
| 4/0 |
4x120 |
1.2 |
0.5 |
2.4 |
53 |
3780 |
| 300MCM |
4x150 |
1.4 |
0.5 |
2.6 |
58.5 |
4550 |
| 500MCM |
4x185 |
1.6 |
0.5 |
2.7 |
64.5 |
5490 |
| 750MCM |
4x240 |
1.7 |
0.5 |
2.9 |
72.5 |
6860 |
| - |
4x300 |
1.8 |
0.5 |
3.1 |
79.5 |
8250 |
| 8 |
5x10 |
0.7 |
0.2 |
1.6 |
22.5 |
640 |
| 6 |
5x16 |
0.7 |
0.2 |
1.8 |
26 |
820 |
| 4 |
5x25 |
0.9 |
0.2 |
1.8 |
31 |
1190 |
