H05VV-F/SJT

Application and Description

These cables are suited to be used for cooking and heating apparatus under the condition that cable does not come in direct contact with hot parts of the apparatus and no other influences or heat.

The cables are suitable for fixed installation in furniture, partition walls, decoration covering and in hollow spaces of prefabricated building parts.

They are not suitable for use in open air, in industries (also permitted to tailor workshops and of that kind) and in agriculture plants and for connecting commercial electrical tools.

Standard and Approval

  • <HAR> HD21.5 S3
  • VDE-0281 Part-5 & Part-2
  • UL Style 62 (SJT)
  • VW-1
  • CSA 22.2 No 49
  • FT-1
  • CE low voltage directive 73/23/EEC & 93/68/EEC
  • IEC 60227-5
  • ROHS compliant

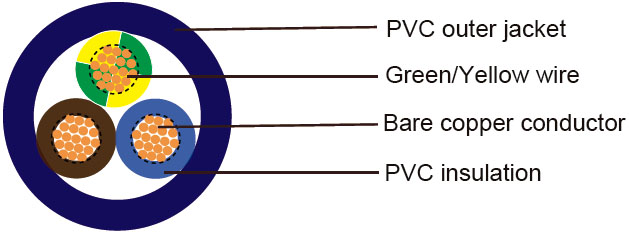

Cable Construction

H05VV-F/SJT H05VV-F/SJT - Harmonized Code Industrial Cables
Bare copper fine wire conductor
Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
PVC core insulation T12 to VDE-0281 Part 1
Color coded to VDE-0293-308
Green-yellow grounding (3 conductors and above)
PVC outer jacket TM2

Technical Characteristics

Working voltage VDE 300/500 volts
Working Voltage UL/CSA 300 volts
Test voltage 2000 volts
Flexing bending radius 7.5 x O
Static bending radius 4.0 x O
Flexing temperature -5 oC to +70 oC
Static temperature -40 oC to +70 oC
Flame retardant IEC 60332.1, VW-1
Insulation resistance 20 MΩ x km

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
# x mm^2 mm mm mm kg/km kg/km
17(32/32) 2 x 1 0.6 0.8 7.2 19.2 56
17(32/32) 3 x 1 0.6 0.8 7.6 28.8 73
17(32/32) 4 x 1 0.6 0.9 8.6 38.4 86
17(32/32) 5 x 1 0.6 0.9 9.4 48 105
16(30/30) 2 x 1.5 0.7 0.8 7.6 28 82
16(30/30) 3 x 1.5 0.7 0.9 8.3 44 96
16(30/30) 4 x 1.5 0.7 1.0 9.3 58 117
16(30/30) 5 x 1.5 0.7 1.1 10.4 72 144
14(50/30) 2 x 2.5 0.8 1.0 9.2 48 118
14(50/30) 3 x 2.5 0.8 1.1 10 72 152
14(50/30) 4 x 2.5 0.8 1.1 10.9 96 192
14(50/30) 5 x 2.5 0.8 1.2 12.2 120 243
12(56/28) 2 x 4 0.8 1.1 10.6 76 195
12(56/28) 3 x 4 0.8 1.2 11.5 115 235
12(56/28) 4 x 4 0.8 1.2 12.4 154 300
12(56/28) 5 x 4 0.8 1.4 14.1 192 361
