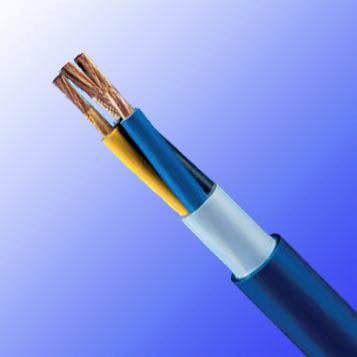

FTG10 (O)M1
Application and Description
These cables are for all those safety systems which, of necessity, must continue to operate even when a fire is in progress. In particular, suitable for smoke detection systems, fire-extinguishing systems, power supply to escalator and automatic doors, power supply to emergency lighting, alarm systems, ventilation plants, etc. Indoor and outdoor fixed laying on wall and racks.
Standard and Approval
- EN 50200
- CEI 20-11
- CEI 20-22 III
- CEI 20-29
- CEI 20-35
- CEI 20-36
- CEI 20-37
- CEI 20-45
- UNEL 00722

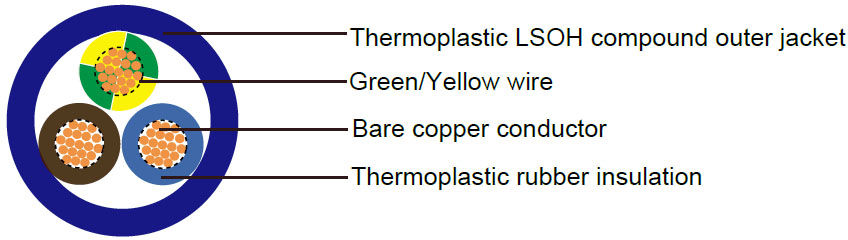

Cable Construction
| Flexible bare copper conductor to IEC60228 cl.5 |
| G10 quality thermoplastic rubber insulation |
| Glass or mica tape |
| Type M1 thermoplastic LSOH compound outer jacket |
Technical Characteristics
| Working voltage |
600/1000 V |
| Test voltage |
4000 V |
| Minimum bending radius |
14 x O |
| Flexing temperature |
-5o C to +90o C |
| Static temperature |
-25o C to +90o C |
| Maximum short circuit temperature |
+250o C |
| Flame retardant |
CEI 20-22 II - IEC 60332-3-C |
| Insulation resistance |
10 MΩ x km |
Cable Parameter
| AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| |
# x mm^2 |
mm |
mm |
mm |
kg/km |
| |
|
Single core |
|
|
|
| 16(30/30) |
1 x 1.5 |
1.0 |
1.4 |
7.6 |
80 |
| 14(50/30) |
1 x 2.5 |
1.0 |
1.4 |
8.0 |
90 |
| 12(56/28) |
1 x 4.0 |
1.0 |
1.4 |
8.6 |
110 |
| 10(84/28) |
1 x 6.0 |
1.0 |
1.4 |
9.1 |
130 |
| 8(80/26) |
1 x 10.0 |
1.0 |
1.4 |
10.5 |
180 |
| 6(128/26) |
1 x 16.0 |
1.0 |
1.4 |
11.7 |
250 |
| 4(200/26) |
1 x 25.0 |
1.2 |
1.4 |
13.0 |
350 |
| 2(280/26) |
1 x 35.0 |
1.2 |
1.6 |
14.2 |
460 |
| 1(400/26) |
1 x 50.0 |
1.4 |
1.6 |
16.2 |
620 |
| 2/0(356/24) |
1 x 70.0 |
1.4 |
1.8 |
17.9 |
820 |
| 3/0(485/24) |
1 x 95.0 |
1.6 |
2.0 |
19.6 |
1100 |
| 4/0(614/24) |
1 x 120.0 |
1.6 |
2.0 |
21.4 |
1350 |
| 300MCM |
1 x 150.0 |
1.8 |
2.0 |
23.3 |
1630 |
| 350MCM |
1 x 185.0 |
2.0 |
2.0 |
26.0 |
1980 |
| 500MCM |
1 x 240.0 |
2.4 |
2.0 |
29.4 |
2550 |
| Two cores |
| 16(30/30) |
2 x 1.5 |
1.0 |
1.8 |
13.4 |
230 |
| 14(50/30) |
2 x 2.5 |
1.0 |
1.8 |
14.4 |
270 |
| 12(56/28) |
2 x 4.0 |
1.0 |
1.8 |
15.5 |
330 |
| 10(84/28) |
2 x 6.0 |
1.0 |
1.8 |
16.6 |
400 |
| 8(80/26) |
2 x 10.0 |
1.0 |
1.8 |
19.0 |
560 |
| 6(128/26) |
2 x 16.0 |
1.0 |
1.8 |
21.2 |
750 |
| 4(200/26) |
2 x 25.0 |
1.2 |
2.0 |
23.9 |
1020 |
| 2(280/26) |
2 x 35.0 |
1.2 |
2.0 |
26.2 |
1300 |
| 1(400/26) |
2 x 50.0 |
1.4 |
2.0 |
30.1 |
1750 |
| Three cores(including ground core ) |
| 16(30/30) |
3 x 1.5 |
1.0 |
1.8 |
14.2 |
260 |
| 14(50/30) |
3 x 2.5 |
1.0 |
1.8 |
15.1 |
320 |
| 12(56/28) |
3 x 4.0 |
1.0 |
1.8 |
16.4 |
390 |
| 10(84/28) |
3 x 6.0 |
1.0 |
1.8 |
17.5 |
470 |
| 8(80/26) |
3 x 10.0 |
1.0 |
1.8 |
20.0 |
670 |
| 6(128/26) |
3 x 16.0 |
1.0 |
1.8 |
22.6 |
910 |
| 4(200/26) |
3 x 25.0 |
1.2 |
2.0 |
25.4 |
1250 |
| 2(280/26) |
3 x 35.0 |
1.2 |
2.0 |
27.8 |
1640 |
| 1(400/26) |
3 x 50.0 |
1.4 |
2.0 |
32.2 |
2210 |
| Four cores(including ground core ) |
| 16(30/30) |
4 x 1.5 |
1.0 |
1.8 |
15.2 |
300 |
| 14(50/30) |
4 x 2.5 |
1.0 |
1.8 |
16.4 |
370 |
| 12(56/28) |
4 x 4.0 |
1.0 |
1.8 |
17.9 |
460 |
| 10(84/28) |
4 x 6.0 |
1.0 |
1.8 |
18.7 |
560 |
| 8(80/26) |
4 x 10.0 |
1.0 |
2.0 |
21.9 |
810 |
| 6(128/26) |
4 x 16.0 |
1.0 |
2.0 |
24.7 |
1100 |
| 4(200/26) |
4 x 25.0 |
1.2 |
2.0 |
27.9 |
1530 |
| 2(280/26) |
3 x 35.0+ 1 x 25 |
1.2 |
2.0 |
30.0 |
1900 |
| 1(400/26) |
3 x 50.0+ 1 x 25 |
1.4 |
2.0 |
33.7 |
2440 |
| Five cores(including ground core ) |
| 16(30/30) |
5 x 1.5 |
1.0 |
|
16.5 |
350 |
| 14(50/30) |
5 x 2.5 |
1.0 |
1.8 |
17.9 |
430 |
| 12(56/28) |
5 x 4.0 |
1.0 |
1.8 |
19.3 |
540 |
| 10(84/28) |
5 x 6.0 |
1.0 |
1.8 |
20.0 |
670 |
| 8(80/26) |
5 x 10.0 |
1.0 |
2.0 |
24.0 |
990 |
| 6(128/26) |
5 x 16.0 |
1.0 |
2.0 |
27.1 |
1350 |
| 4(200/26) |
5 x 25.0 |
1.2 |
2.0 |
30.7 |
1870 |
| 2(280/26) |
5 x 35.0 |
1.2 |
2.2 |
34.0 |
2480 |
| 1(400/26) |
5 x 50.0 |
1.4 |
2.2 |
39.7 |
3410 |
| 16(30/30) |
7 x 1.5 |
1.0 |
1.8 |
17.9 |
420 |
| 16(30/30) |
10 x 1.5 |
1.0 |
2.0 |
21.8 |
560 |
| 16(30/30) |
12 x 1.5 |
1.0 |
2.0 |
22.6 |
630 |
| 16(30/30) |
16 x 1.5 |
1.0 |
2.0 |
25.4 |
790 |
| 16(30/30) |
19 x 1.5 |
1.0 |
2.0 |
26.2 |
890 |
| 14(50/30) |
24 x 2.5 |
1.0 |
2.0 |
30.2 |
1170 |
| 14(50/30) |
7 x 2.5 |
1.0 |
1.8 |
19.0 |
520 |
| 14(50/30) |
10 x 2.5 |
1.0 |
2.0 |
23.7 |
700 |
| 14(50/30) |
12 x 2.5 |
1.0 |
2.0 |
24.4 |
800 |
| 14(50/30) |
16 x 2.5 |
1.0 |
2.0 |
27.1 |
1000 |
| 14(50/30) |
19 x 2.5 |
1.0 |
2.0 |
28.5 |
1130 |
| 14(50/30) |
24 x 2.5 |
1.0 |
2.2 |
33.1 |
1510 |
