FXV
Application and Description
These cables for energy distribution are suitable for all types of low voltage industrial-type connections. in urban grids, building installations. etc. Its high flexibility makes the installation process substantially easier and as a result is particularly suitable for use in difficult layouts. They can be buried or installed in a tube as well as outdoors. They are can also be used for street lighting, power supply of buildings, ship installations and generator installations. Lastly, these cables can withstand damp conditions including total immersion in water.
Standard and Approval
IEC 60502-1
Cable Construction
 |
 |

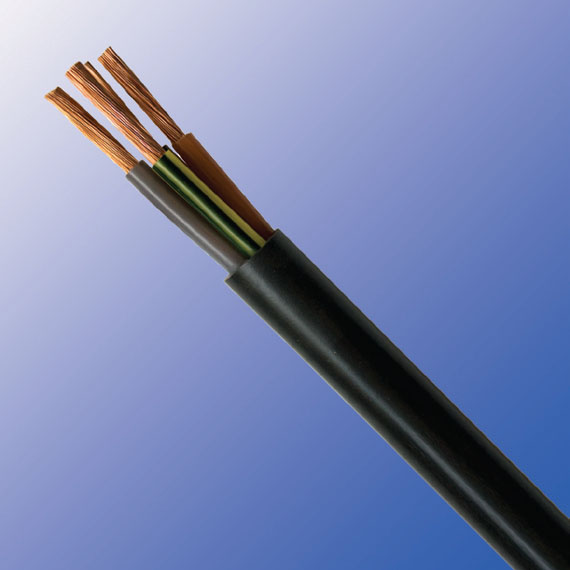

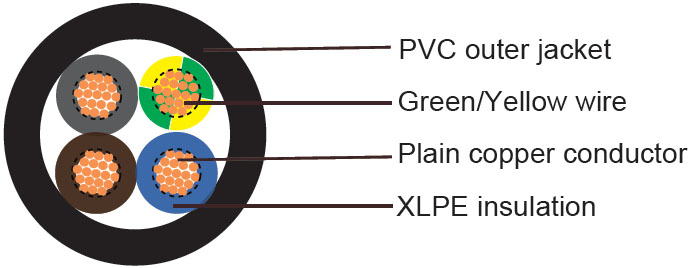

Flexible plain copper strands
Strands to VDE-0295 Class-5, NP 2363 Class-5
XLPE (Cross-Linked Polyethylene) insulation to IEC60502
Color coded to HD 308
Flexible PVC (Polyvinyl Chloride) jacket
Technical Characteristics
Voltage Rating : 600/1000V
Temperature Rating : -15°C to +90°C
Minimum Bending Radius : 5 x overall diameter
Flame retardant : IEC 60332.1
Insulation resistance : 1000 MΩ x km
Cable Parameter
| No. of Cores x Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| # x mm² | mm | mm | mm | kg/km |
| 1 x 2.5 | 0.7 | 1.4 | 6.2 | 54 |
| 1 x 4.0 | 0.7 | 1.4 | 6.7 | 70 |
| 1 x 6.0 | 0.7 | 1.4 | 7.3 | 90 |
| 1 x 10.0 | 0.7 | 1.4 | 8.2 | 133 |
| 1 x 16.0 | 0.7 | 1.4 | 9.2 | 189 |
| 1 x 25.0 | 0.9 | 1.4 | 11 | 284 |
| 1 x 35.0 | 0.9 | 1.4 | 12.1 | 381 |
| 1 x 50.0 | 1 | 1.4 | 13.8 | 517 |
| 1 x 70.0 | 1.1 | 1.4 | 15.7 | 712 |
| 1 x 95.0 | 1.1 | 1.5 | 17.6 | 923 |
| 1 x 120.0 | 1.2 | 1.5 | 19.2 | 1165 |
| 1 x 150.0 | 1.4 | 1.6 | 21.5 | 1446 |
| 1 x 185.0 | 1.6 | 1.7 | 23.9 | 1748 |
| 1 x 240.0 | 1.7 | 1.8 | 26.9 | 2280 |
| 1 x 300.0 | 1.8 | 1.8 | 29.6 | 2829 |
| 1 x 400.0 | 2 | 2.0 | 33.8 | 3731 |
| 1 x 500.0 | 2.2 | 2.2 | 37.4 | 4776 |
| 1 x 630.0 | 2.4 | 2.4 | 42.7 | 6276 |
| 2 x 1.5 | 0.7 | 1.8 | 8.2 | 90 |
| 2 x 2.5 | 0.7 | 1.8 | 9.2 | 120 |
| 2 x 4.0 | 0.7 | 1.8 | 10.3 | 161 |
| 2 x 6.0 | 0.7 | 1.8 | 11.3 | 211 |
| 2 x 10.0 | 0.7 | 1.8 | 13.2 | 316 |
| 2 x 16.0 | 0.7 | 1.8 | 14.9 | 450 |
| 3 x 1.5 | 0.7 | 1.8 | 8.9 | 108 |
| 3 x 2.5 | 0.7 | 1.8 | 9.8 | 144 |
| 3 x 4.0 | 0.7 | 1.8 | 11 | 198 |
| 3 x 6.0 | 0.7 | 1.8 | 12.1 | 263 |
| 3 x 10.0 | 0.7 | 1.8 | 14.3 | 405 |
| 3 x 16.0 | 0.7 | 1.8 | 16.4 | 593 |
| 3 x 25.0 | 0.9 | 1.8 | 21.3 | 975 |
| 3 x 35.0 | 0.9 | 1.8 | 24.1 | 1319 |
| 3 x 50.0 | 1 | 1.8 | 27.8 | 1812 |
| 3 x 70.0 | 1.1 | 1.9 | 30.8 | 2463 |
| 4 x 1.5 | 0.7 | 1.8 | 9.7 | 129 |
| 4 x 2.5 | 0.7 | 1.8 | 10.7 | 175 |
| 4 x 4.0 | 0.7 | 1.8 | 12 | 243 |
| 4 x 6.0 | 0.7 | 1.8 | 13.4 | 328 |
| 4 x 10.0 | 0.7 | 1.8 | 15.7 | 505 |
| 4 x 16.0 | 0.7 | 1.8 | 18.2 | 749 |
| 4 x 25.0 | 0.9 | 1.8 | 24.1 | 1245 |
| 4 x 35.0 | 0.9 | 1.8 | 26.3 | 1671 |
| 4 x 50.0 | 1 | 1.8 | 31.3 | 2313 |
| 4 x 70.0 | 1.1 | 2.0 | 36.1 | 3204 |
| 4 x 95.0 | 1.1 | 2.2 | 40.2 | 4126 |
| 4 x 120.0 | 1.2 | 2.4 | 44.6 | 5245 |
| 4 x 150.0 | 1.4 | 2.6 | 49.8 | 6573 |
| 4 x 185.0 | 1.6 | 2.8 | 56.1 | 8050 |
| 4 x 240.0 | 1.7 | 3.0 | 64.5 | 10695 |
| 5 x 1.5 | 0.7 | 1.8 | 10.4 | 153 |
| 5 x 2.5 | 0.7 | 1.8 | 11.6 | 213 |
| 5 x 4.0 | 0.7 | 1.8 | 13.2 | 298 |
| 5 x 6.0 | 0.7 | 1.8 | 14.7 | 403 |
| 5 x 10.0 | 0.7 | 1.8 | 17.2 | 624 |
| 5 x 16.0 | 0.7 | 1.8 | 20.2 | 931 |
| 5 x 25.0 | 0.9 | 1.8 | 25.6 | 1555 |
| 5 x 35.0 | 0.9 | 1.8 | 29.3 | 2076 |
| 5 x 50.0 | 1 | 2.0 | 34.5 | 2878 |
