H05V-K

Application and Description

These insulated wires are determined for installation to the inside of apparatus as well as for the protective
laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under
and surface mounting of plasters.

Standard and Approval

  • NP2356/5

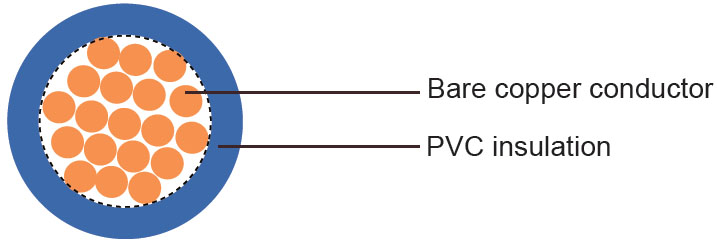

Cable Construction

H05V-K H05V-K
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Special PVC TI1 core insulation
Color coded to HD 308

Technical Characteristics

Working voltage 300/500 volts
Test voltage 2000 volts
Flexing bending radius 12.5 x O
Static bending radius 12.5 x O
Flexing temperature -5o C to +70o C
Static temperature -30o C to +80o C
Flame retardant IEC 60332.1
Insulation resistance 10 MΩ x km

Cable Parameter

No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
# x mm^2 mm mm kg/km kg/km
1 x 0.5 0,6 2.1 4.9 10
1 x 0.75 0,6 2.4 7.2 13
1 x 1 0,6 2.6 9.6 15
