H07V-K
Application and Description
These are not suitable to be installed for laying in tubes, under and surface mounting of plaster and also
in closed installation conduits. These are not allowed to install for direct laying on cable trays, channel or
tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for
protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct
current against earth.
Standard and Approval

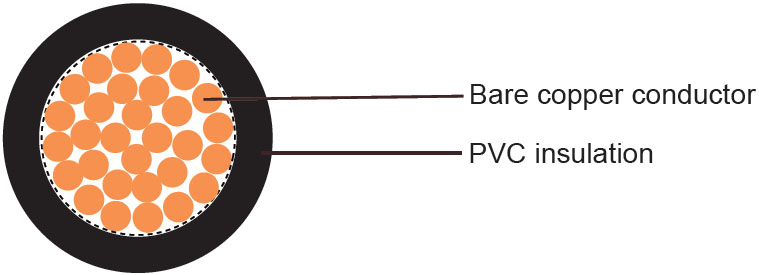

Cable Construction
| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| Special PVC TI1 core insulation |
| Color coded to HD 308 |
Technical Characteristics
| Working voltage |
450/750V |
| Test voltage |
2500 volts |
| Flexing bending radius |
12.5 x O |
| Static bending radius |
12.5 x O |
| Flexing temperature |
-5o C to +70o C |
| Static temperature |
-30o C to +80o C |
| Short circuit temperature |
+160o C |
| Flame retardant |
IEC 60332.1 |
| Insulation resistance |
10 MΩ x km |
Cable Parameter
| No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
| # x mm^2 |
mm |
mm |
kg/km |
kg/km |
| 1 x 1.5 |
0,7 |
3.1 |
14.4 |
20 |
| 1 x 2.5 |
0,8 |
3.6 |
24.0 |
31 |
| 1 x 4 |
0,8 |
4.3 |
38.0 |
48 |
| 1 x 6 |
0,8 |
4.9 |
58.0 |
69 |
| 1 x 10 |
1,0 |
6.4 |
96.0 |
121 |
| 1 x 16 |
1,0 |
8.1 |
154.0 |
211 |
| 1 x 25 |
1,2 |
9.8 |
240 |
303 |
| 1 x 35 |
1,2 |
11.1 |
336 |
417 |
| 1 x 50 |
1,4 |
13.1 |
480 |
539 |
| 1 x 70 |
1,4 |
15.5 |
672 |
730 |
| 1 x 95 |
1,6 |
17.2 |
912 |
900 |
| 1 x 120 |
1,6 |
19.7 |
1152 |
1135 |
| 1 x 150 |
1,8 |
21.3 |
1440 |
1410 |
| 1 x 185 |
2,0 |
23.4 |
1776 |
1845 |
| 1 x 240 |
2,2 |
27.1 |
2304 |
2270 |
