H05V-U / H07V-U/H07V-R
Application and Description
H05 V-U/(H)05 V-U
These insulated wires are determined for the installation to the inside of apparatus as well as for the
protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes,
under and surface mounting of plasters.
H07 V-U/(H)07 V-U
These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in
closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or
tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for
protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct
current against ground.
H07 V-R
These cables are preferably for installation indoors, in cable ducts and in industrial plants or switching
stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker
strand of multi-wire is required.
Standard and Approval

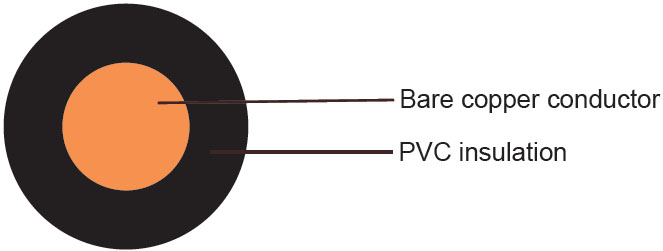

Cable Construction
| Solid bare copper single wire |
| Solid to DIN VDE 0295 cl-1 and IEC 60228 cl-1(for H05V-U / H07V-U), cl-2(for H07V-R) |
| Special PVC TI1 core insulation |
| Color coded to HD 308 |
Technical Characteristics
| Working voltage |
300/500v (H05V-U) 450/750v (H07V-U/H07-R) |
| Test voltage |
2000V(H05V-U)/ 2500V (H07V-U/H07-R) |
| Bending radius |
15 x O |
| Flexing temperature |
-5o C to +70o C |
| Static temperature |
-30o C to +90o C |
| Short circuit temperature |
+160o C |
| Flame retardant |
IEC 60332.1 |
| Insulation resistance |
10 MΩ x km |
Cable Parameter
| No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
| # x mm^2 |
mm |
mm |
kg/km |
kg/km |
| H05V-U |
| 1 x 0.5 |
0.6 |
2.1 |
4.8 |
9 |
| 1 x 0.75 |
0.6 |
2.2 |
7.2 |
11 |
| 1 x 1 |
0.6 |
2.4 |
9.6 |
14 |
| H07V-U |
| 1 x 1.5 |
0.7 |
2.9 |
14.4 |
21 |
| 1 x 2.5 |
0.8 |
3.5 |
24.0 |
33 |
| 1 x 4 |
0.8 |
3.9 |
38.0 |
49 |
| 1 x 6 |
0.8 |
4.5 |
58.0 |
69 |
| 1 x 10 |
1.0 |
5.7 |
96.0 |
115 |
| H07V-R |
| 1 x 1.5 |
0.7 |
3 |
14.4 |
23 |
| 1 x 2.5 |
0.8 |
3.6 |
24 |
35 |
| 1 x 4 |
0.8 |
4.2 |
39 |
51 |
| 1 x 6 |
0.8 |
4.7 |
58 |
71 |
| 1 x 10 |
1 |
6.1 |
96 |
120 |
| 1 x 16 |
1 |
7.2 |
154 |
170 |
| 1 x 25 |
1.2 |
8.4 |
240 |
260 |
| 1 x 35 |
1.2 |
9.5 |
336 |
350 |
| 1 x 50 |
1.4 |
11.3 |
480 |
480 |
| 1 x 70 |
1.4 |
12.6 |
672 |
680 |
| 1 x 95 |
1.6 |
14.7 |
912 |
930 |
| 1 x 120 |
1.6 |
16.2 |
1152 |
1160 |
| 1 x 150 |
1.8 |
18.1 |
1440 |
1430 |
| 1 x 185 |
2 |
20.2 |
1776 |
1780 |
| 1 x 240 |
2.2 |
22.9 |
2304 |
2360 |
