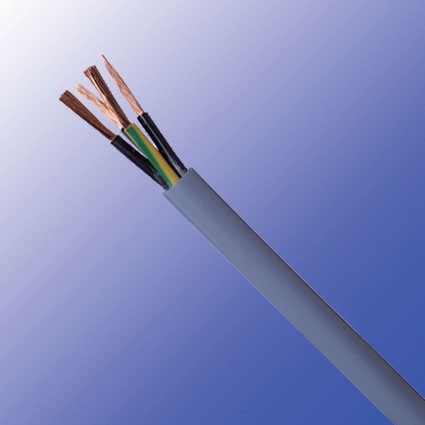

H1VV-R
Application and Description
These cables are used for electricity supply in low voltage installation system, They are suitable for
installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local
energy distributions, industrial plants, where there is no risk of mechanical damage.
Standard and Approval

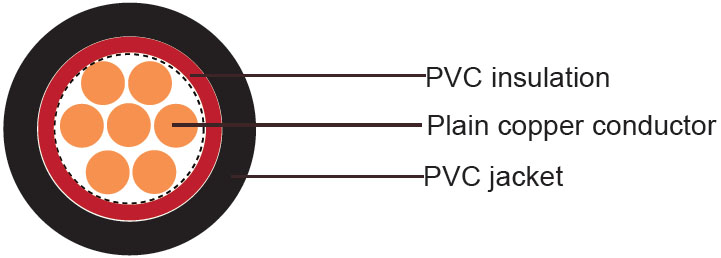

Cable Construction
| Solid copper conductor, class 1 to IEC 60228 |
| PVC insulation |
| Color coded to HD 308 |
| Flexible PVC outer jacket |
Technical Characteristics
| Working Voltage |
600/1000 volts |
| Flexing bending radius |
3500 volts |
| Minimum bending radius |
15 x O |
| Static bending radius |
12 x O |
| Flexing temperature |
-5o C to +50o C |
| Fixed installation temperature |
- 40o C to +70o C |
| Flame retardant |
IEC 60332-1, EN 50265-2-1 |
| Insulation resistance |
>100 MΩ x km |
Cable Parameter
| No. of Cores x Nominal Cross Sectional Area |
Nominal Overall Diameter |
Nominal Weight |
No. of Cores x Nominal Cross Sectional Area |
Nominal Overall Diameter |
Nominal Weight |
| # x mm^2 |
mm |
kg/km |
# x mm^2 |
mm |
kg/km |
| 1x4 |
7.5 |
95 |
3x4 |
15.5 |
380 |
| 1x6 |
8 |
120 |
3x6 |
17 |
470 |
| 1x10 |
9 |
165 |
3x10 |
18.5 |
630 |
| 1x16 |
10 |
230 |
3x16 |
21 |
880 |
| 1x25 |
12 |
340 |
3x25 |
24.5 |
1280 |
| 1x35 |
13 |
450 |
3x35 |
27 |
1660 |
| 1x50 |
14.5 |
570 |
3x50 |
30 |
2110 |
| 1x70 |
16 |
800 |
3x70 |
35 |
2980 |
| 1x95 |
18.5 |
1070 |
3x95 |
40 |
3930 |
| 1x120 |
20 |
1300 |
3x120 |
43 |
4780 |
| 1x150 |
22 |
1600 |
3x150 |
48 |
5880 |
| 1x185 |
24 |
1980 |
3x185 |
52 |
7230 |
| 1x240 |
27 |
2560 |
3x240 |
59 |
9390 |
| 1x300 |
30 |
3180 |
3x300 |
65 |
11620 |
| 1x400 |
33 |
4060 |
3x400 |
72 |
14730 |
| 1x500 |
37 |
5140 |
4x4 |
16.5 |
450 |
| 1x630 |
42 |
6600 |
4x6 |
18 |
560 |
| 2x4 |
15 |
330 |
4x10 |
20 |
770 |
| 2x6 |
16 |
400 |
4x16 |
23 |
1080 |
| 2x10 |
17.5 |
525 |
4x25 |
26.5 |
1580 |
| 2x16 |
20 |
720 |
4x35 |
29.5 |
2070 |
| 2x25 |
23.5 |
1030 |
4x50 |
34 |
2680 |
| 2x35 |
25.5 |
1320 |
4x70 |
38 |
3760 |
| 2x50 |
28.5 |
1670 |
4x95 |
44 |
4960 |
| 2x70 |
32 |
2290 |
4x120 |
48 |
6110 |
| 2x95 |
37 |
3060 |
4x150 |
53 |
7450 |
| 2x120 |
40 |
3700 |
4x185 |
58 |
9220 |
| 2x150 |
44 |
4500 |
4x240 |
65 |
11900 |
| 2x185 |
48 |
5570 |
4x300 |
72 |
14730 |
| 2x240 |
55 |
7180 |
4x400 |
81 |
18830 |
