LXV
Application and Description
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Standard and Approval
IEC 60502-1
NP2365

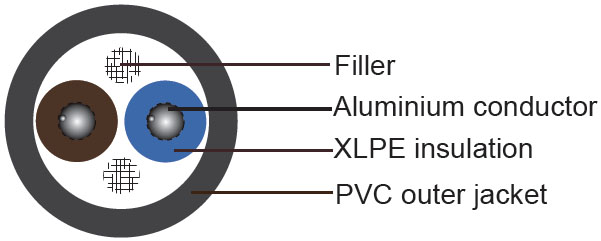

Cable Construction
| Aluminium conductor, class 1/class 2 to NP2363 |
| XLPE insulation |
| Colour coded to HD 308 |
| Not fibrous and not hygroscopic filler |
| Flexible PVC, type ST2 outer jacket |
Technical Characteristics
| Voltage Rating |
600/1000V |
| Test voltage |
3500 volts |
| Minimum Bending Radius |
12 x Ø |
| Operation temperature range |
-15 °C to 90 °C |
| Short-circuit temperature |
250 °C |
| Flame retardant |
IEC 60332.1 |
| Insulation resistance |
1000 MΩ x km |
Cable Parameter
| No. of Cores x Nominal Cross Sectional Area |
Nominal Overall Diameter |
Nominal Weight |
No. of Cores x Nominal Cross Sectional Area |
Nominal Overall Diameter |
Nominal Weight |
| # x mm² |
mm |
kg/km |
# x mm² |
mm |
kg/km |
| 1x16 |
9.0 |
100 |
3x16 |
17.5 |
380 |
| 1x25 |
10.5 |
145 |
3x25 |
21.0 |
530 |
| 1x35 |
12.0 |
175 |
3x35 |
20.0 |
510 |
| 1x50 |
13.0 |
230 |
3x50 |
22.5 |
620 |
| 1x70 |
15.0 |
300 |
3x70 |
26.5 |
880 |
| 1x95 |
17.0 |
395 |
3x95 |
30.0 |
1200 |
| 1x120 |
18.5 |
460 |
3x120 |
33.0 |
1500 |
| 1x150 |
20.5 |
590 |
3x150 |
37.0 |
1750 |
| 1x185 |
22.5 |
720 |
3x185 |
41.0 |
2200 |
| 1x240 |
25.5 |
910 |
3x240 |
46.5 |
2800 |
| 1x300 |
28.0 |
1150 |
3x300 |
51.5 |
3500 |
| 1x400 |
32.0 |
1400 |
4x16 |
18.0 |
330 |
| 1x500 |
35.0 |
1850 |
4x25 |
22.5 |
480 |
| 2x16 |
17.0 |
320 |
4x35 |
23.0 |
610 |
| 2x25 |
20.0 |
470 |
4x50 |
26.0 |
770 |
| 2x35 |
17.5 |
370 |
4x70 |
29.0 |
1020 |
| 2x50 |
19.5 |
460 |
4x95 |
34.5 |
1350 |
| 2x70 |
22.5 |
600 |
4x120 |
38.0 |
1750 |
| 2x95 |
26.0 |
830 |
4x150 |
42.5 |
2050 |
| 2x120 |
29.0 |
1020 |
4x185 |
47.5 |
2600 |
| 2x150 |
31.5 |
1300 |
4x240 |
53.5 |
3400 |
| 2x185 |
35.5 |
1550 |
4x300 |
59.5 |
4200 |
| 2x240 |
39.5 |
1900 |
- |
- |
- |
| 2x300 |
43.5 |
2350 |
- |
- |
- |
